Model NO.
SZQ401D
Standard
Standard
Monitor
3.5 Inches TFT LCD
Diameter
3.9mm
Cable
1mt
Transport Package
Instrument Case / Box
Specification
15mm x 30mm x 40mm
Trademark
YKndt
Origin
China
HS Code
8525801390
Production Capacity
500
After-sales Service:
Maintenance
Warranty:
1 Year
Testing Equipment Type:
Car Fault Detector
Certification:
CE, ISO, RoHS
Update Method:
by Email
Condition:
New

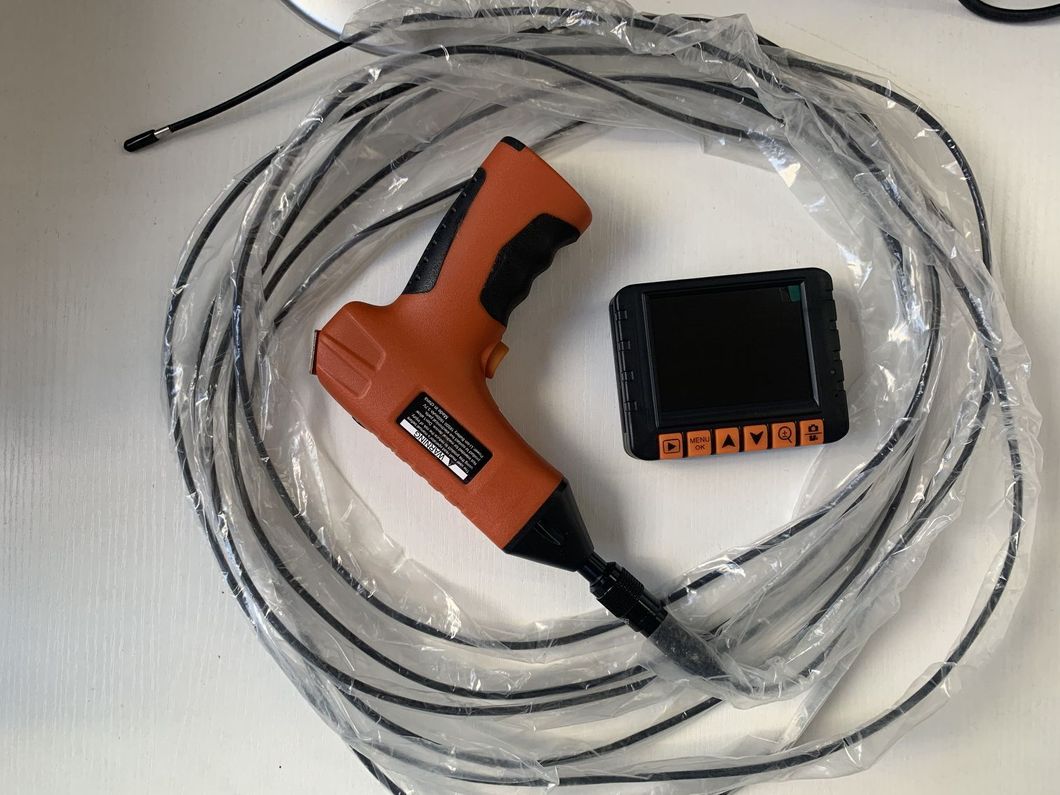

Wireless Flexible Industrial Video Endoscope with 3.5 Inch Display, Semi-Rigid Tube, Waterproof IP67, 480P
Specifications :
Insertion Tube Specifications :
Image Sensor CMOS Image Sensor
Resolution (Dynamic/Static)
320(H) X 240(V)
720(H)x525(V)(N) / 720(H)x625(V)(P)
712 (H)x480(V)(N)/ 720(H)x576(V)(P)
Insertion Tube Tip Diameter : 8.5mm .
Frame Rate ~30 fps
Exposure Automatic
White Balance Fixed
Field-of View (FOV) : 80°
Depth-of-Field (DOF) : 10mm - 300 mm
System Magnification 8X at 15 mm
Light Source : 4 White LED
Working Temperature : (-20°to 70°C)
Material of Tube : Semi-rigid / Soft-metal
Extended Length : 1.0M
Waterproof Standard : IP67
DVM Specifications
Power DC : 5V
Display : 3.5" TFT LCD Monitor 320 x 240 Pixels
Interface Mini : USB 2.0 / AV Out
Battery Rechargeable: Li-Polymer Battery (3.7V)
Video Output Format : NTSC & PAL
Recording Medium SD Card : (Capacity up to 32G)
Still Image Storage Format JPEG : (640 x 480)
Video Recording Storage Format : AVI (320 x 240)
Language English + option : (Nine language)
Working/Storage Temperature : (-20°to 60°C)
While Charging Battery Temperature: ( 0°to 40°C)
Specifications :
Insertion Tube Specifications :
Image Sensor CMOS Image Sensor
Resolution (Dynamic/Static)
320(H) X 240(V)
720(H)x525(V)(N) / 720(H)x625(V)(P)
712 (H)x480(V)(N)/ 720(H)x576(V)(P)
Insertion Tube Tip Diameter : 8.5mm .
Frame Rate ~30 fps
Exposure Automatic
White Balance Fixed
Field-of View (FOV) : 80°
Depth-of-Field (DOF) : 10mm - 300 mm
System Magnification 8X at 15 mm
Light Source : 4 White LED
Working Temperature : (-20°to 70°C)
Material of Tube : Semi-rigid / Soft-metal
Extended Length : 1.0M
Waterproof Standard : IP67
DVM Specifications
Power DC : 5V
Display : 3.5" TFT LCD Monitor 320 x 240 Pixels
Interface Mini : USB 2.0 / AV Out
Battery Rechargeable: Li-Polymer Battery (3.7V)
Video Output Format : NTSC & PAL
Recording Medium SD Card : (Capacity up to 32G)
Still Image Storage Format JPEG : (640 x 480)
Video Recording Storage Format : AVI (320 x 240)
Language English + option : (Nine language)
Working/Storage Temperature : (-20°to 60°C)
While Charging Battery Temperature: ( 0°to 40°C)
