Product Name auto Body Frame Machine #VF7000

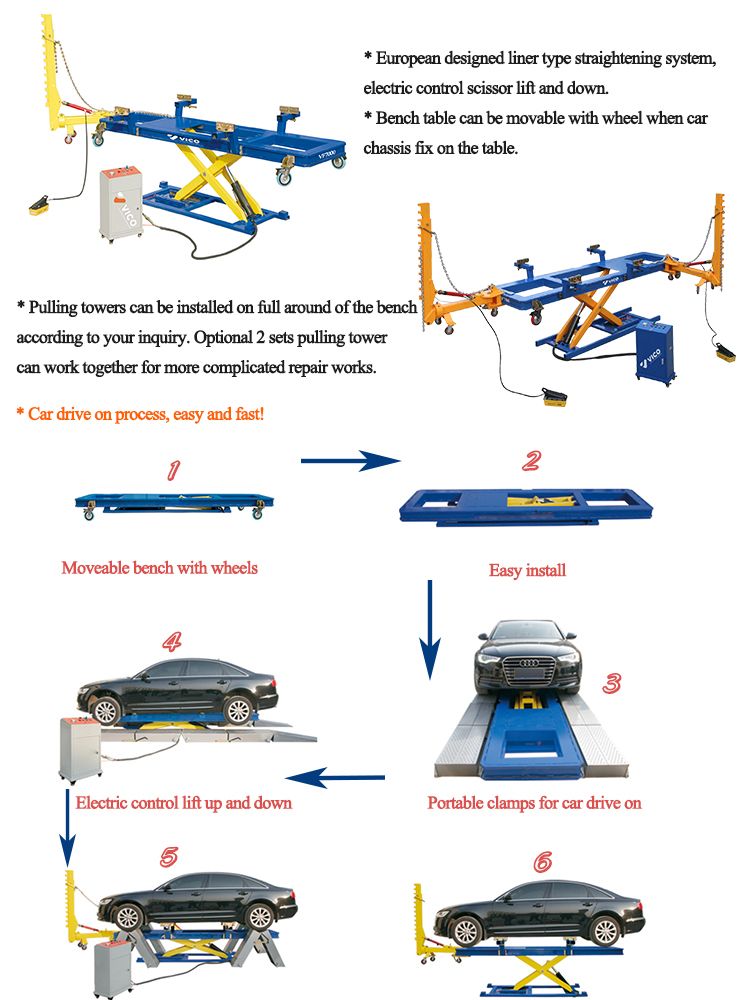

(1) European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by electronic hydraulic pump, the lifting frame is operated conveniently and quickly.
(2) The vertical lifting frame can be used as a scissor lift, orientated safely at height from 252mm to 1620mm.
(3) Frame basement can be put up; four wheels can be movable. After fixing vehicle to frame, move them together to specified position, which can make up insufficient space and unfixing.
(4) Slops with patient for driving vehicle on quickly and conveniently are widely used for holding wheels, which helps clamp vehicle needed to repair.
(5) The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
(6) Forged, modulated and heated by frequency, the metal sheets have high intensity and long life, any deformation correction is considered.
(7) Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.
| Platform Length | 4200mm |
| Platform width | 980mm |
| Platform height | 252mm~1620mm |
| Post Max. tension | 95KN |
| Pneumatic pressure range | 0.8Mpa |
| Post working range | 360° full around |
| Cylinder capacity | 10T |
| Maximum lift capacity | 3200kgs |
| Voltage | 3Ph/380v/415v/220v |
| Weight | 1700kgs |
| Packing size | 4250x1000x300mm+495x565x1020mm 2155x670x1100mm+2040x650x550mm/4cbm |
