Model NO.
WP630A
Package Quantity
3PCS
Warranty
18 Months
OEM/ODM
Available
Transport Package
Plywood Case
Specification
Hydraulic drive
Trademark
Welping
Origin
Hangzhou, China
HS Code
8515809090
Production Capacity
20000PCS/Year
Welding Range:
315-630mm
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
Resistance Butt Welder
·15 years' experience of designing, manufacturing and sale in the line of thermoplastic welding equipment.
·Self-managing Integrated production equipment & procedures: die casting, metal fabrication and process, powder coating etc.
·New modern workshop, 20000m2, up to date processing equipment: 12kw laser cutting and welding, 800,
1200 tons die casting molding machinery, CNC etc.
Technical parameters
| Model | WP630A | |
| Suitable materials | PE, PP, PVDF | |
| Range | 315-355-400-450-500-560-630mm | |
| Power supply | 380V, 3PH | |
| Frequency | 50 Hz | |
| Total power | 10.1 KW | |
| Heating plate | 7.5 KW | |
| Planing tool | 1.1KW | |
| Hydraulic station | 1.5KW | |
| Max.Pressure | 16MPa | |
| Hydraulic oil | L-HM46 | |
| Max.Temperature of heating plate | 270ºC | |
| Temp.Deviation in Surface | ±7ºC | |
| Total Weight | 560kg | |
| Net weight | 475kg | |
| Basic Frame | plywood | 1540*930*990mm |
| Hydraulic Unit | plywood | 680*530*730mm |
| planing tool & heating plate | plywood | 750*620*1260mm |
Products summary
| SN | Model | Pipe range | Power supply | Notes |
| 1 | WP110A | 40-50-63-75-90-110 (mm) | 220V, 50Hz | |
| 2 | WP160A | 63-75-90-110-125-140-160 (mm) | 220V, 50Hz | |
| 3 | WP200A | 63-75-90-110-125-140-160-180-200 (mm) | 220V, 50Hz | |
| 4 | WP250A | 90-110-125-140-160-180-200-225-250 (mm) | 220V, 50Hz | |
| 5 | WP315A | 110-125-140-160-180-200-225-250-280-315 (mm) | 220V, 50Hz | |
| 6 | WP355A | 160-180-200-225-250-280-315-355 (mm) | 220V/380V, 50Hz | |
| 7 | WP400A | 160-180-200-225-250-280-315-355-400 (mm) | 380V, 50Hz | |
| 8 | WP450A | 200-225-250-280-315-355-400-450 (mm) | 380V, 50Hz | |
| 9 | WP500A | 250-280-315-355-400-450-500 (mm) | 380V, 50Hz | |
| 10 | WP630A | 315-355-400-450-500-560-630 (mm) | 380V, 50Hz | |
| 11 | WP800A | 630-710-800 (mm) | 380V, 50Hz | |
| 12 | WP1000A | 800-900-1000 (mm) | 380V, 50Hz | |
| 13 | WP1200A | 1000-1100-1200(mm) | 380V, 50Hz | |
| 14 | WP1600A | 1200-1400-1600 (mm) | 380V, 50Hz | customized |
| 15 | WP2000A | 1600-1800-2000(mm) | 380V, 50Hz | customized |
| 16 | WP2500A | 2200-2500 (mm) | 380V, 50Hz | customized |
| 17 | WP3000A | 3000 (mm) | 380V, 50Hz | customized |

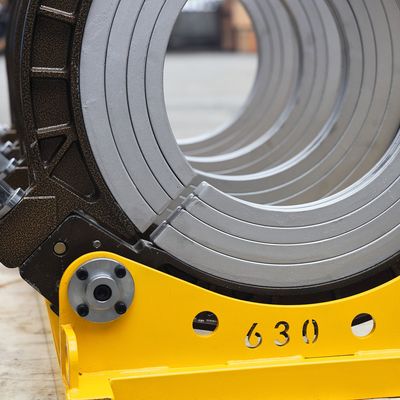

Basic frame
Featured by
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment
Featured by
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment
Hydraulic station
Featured by
Featured by
- Fully enclosed housing with vents can prevent dust and dirt from entering
- 380V asynchronous motor
- CHNT electricity leadkage protection switch
- Data logger(optional)
- 500V/100A electric meter
- Ø100mm presure meter
- Relief valve, regulating valve, maintaining valve
Planing tool
Featured by
- HSS blade with double edge
- Die-cast aluminum trimmer plate, durable and anti-corrosion
- Aluminum alloy frame of motor with good heat dissipation performance
- Asynchronous motor with pure copper wire
Heating plate
Featured by
Featured by
- Bakelite handle with high insulating property and thermal insulation
- Thermocouple temperature sensor
- Heating element
- Teflon Coating imported from Daikin in Japan
- Aviation plug
Thanks for choosing Welping. We are confident that it will bring you success and meet your expectations.
We have been in this industry for 15 years. Product quality and innovation have always been our goals. Now we have 78 employees that have a wealth of experience.
Due to the huge increase in business, a new 20000m2 workshop is under construction, it will start producing in July, annual production capacity reaches 20000pcs. More CNC machine centers and laser cutting equipments are invested. It's all for better products and service.
General terms
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days.
3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.
4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. About agency business
We look forward to cooperate with influential company.
