Model NO.
RS
Submerged Arc Welding Machine Suitable
Less Than 30mm
Weldable Joints
Butt Joints, T-Joints, Corner Joints and Cross Joi
Electroslag Slag Pool Temperature
1600~2000 Degree
The Angle Between The Vertical Line Betw
Less Than 30 Degree
Purpose
for Thick Plate Splicing
Welding Range
for Welding of Steel or Iron-Based Alloys
Voltage
380~440V
Rail Width
1.5m
Cantilever Trolley Travel
Customized
Exported to
Russia, India, Dubai, Pakistan, Kuwait, etc
OEM
Yes
Colour
Customized
Transport Package
Containers
Specification
Customized
Trademark
Lemar
Origin
Wuxi, China
HS Code
8515319900
Production Capacity
1000 PCS/Year
Cooling Way:
Water Cooling
Frequency Range:
High Frequency
Type:
Fuse Esw Welding
Electroslag Welding Principle:
Liquid Slag Produces Resistive Heat
Classification:
Wire Electroslag Welding, Plate Electroslag Weldin
Welding Beams Thickness:
More Than 30mm

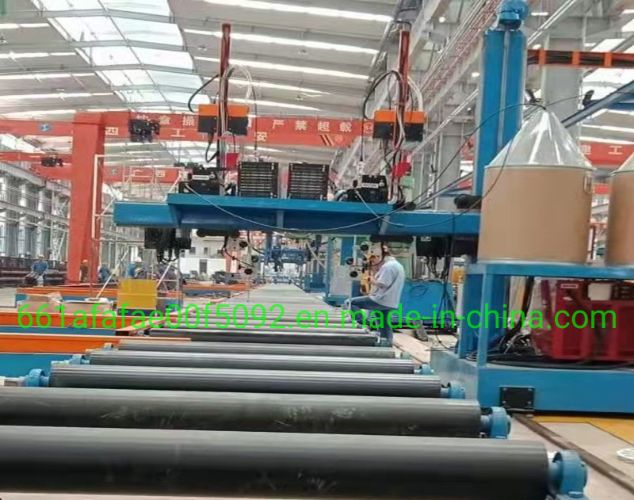

The electroslag welding (ESW) process has some characteristics of submerged arc welding (the gantry type submerged arc welding machine is more common for H-beam welding, and the cantilever electroslag welding machine is more common for Box beam).
Lemar produces various types of H-beam Box beam production line machines.
From CNC Plasma cutting machine with Oxygen torches,to H beam Box beam assembling machine/Double cantilever gas shield arc welding column gantry type welding machine/Hydraulic straightening machine/Shot blasting machine/Metal sheet shearing machine/metal plate bending machine/Face milling machine,etc.
Lemar produces various types of H-beam Box beam production line machines.
From CNC Plasma cutting machine with Oxygen torches,to H beam Box beam assembling machine/Double cantilever gas shield arc welding column gantry type welding machine/Hydraulic straightening machine/Shot blasting machine/Metal sheet shearing machine/metal plate bending machine/Face milling machine,etc.
Specifications:
| Model | RS-12 |
| Power Supply | 3 Phase / 380V / 50Hz |
| Driving System | Synchronized Double DC motor |
| Gauge | 3000 mm |
| Height | 300mm - 1200mm |
| Width | 300mm - 1200mm |
| Length of Travel | 15000mm |
| Plate Thickness | 16mm - 65mm |
| Steel Grade | Mild Steel / 50-kg High Tensile Steel |
| Groove | Square and single bevel groove |
| Joint Length | 1200mm |
| Joint Geometry | T joint and butt joint |
| Wire Diameter | 1.6mm (300kgs) |
| Power Source | USA Brand DC-600 |
| Wire Feeder | USA Brand LF-74 |
Electroslag welding is the predominant method for casting welded parts with large sections (the Box beam line is the most widely used) because one of its key features is its suitably high deposition rate.
Benefit:
• Electroslag welding can have a very high deposition rate, no matter how thick the beam structure is, only one pass is required.
• Unlike SAW or other arc welding processes, there is no angular deformation in ESW because the weld is symmetrical about its axis.
• High welding speed and good weld stress distribution.
• Joint preparation is generally much simpler than other arc welding processes.
• The resulting residual stress and deformation are at low levels.
• Very low flux composition compared to submerged arc welding (SAW).
Benefit:
• Electroslag welding can have a very high deposition rate, no matter how thick the beam structure is, only one pass is required.
• Unlike SAW or other arc welding processes, there is no angular deformation in ESW because the weld is symmetrical about its axis.
• High welding speed and good weld stress distribution.
• Joint preparation is generally much simpler than other arc welding processes.
• The resulting residual stress and deformation are at low levels.
• Very low flux composition compared to submerged arc welding (SAW).
