Model NO.
ZTG-150
Suitable Pipe Diameter
1100-6000mm
Roller Linear Speed
6-60m/H
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
20 Days
Colour
Customized
Warranty
1 Year
Wheels Quantity
8 Wheels
Wheel Material
Rubber and Steel Wheel
Adjustable Way
Screw Adjustable Welding Rotator
Payment
T/T L/C
Drive Mode
Dual Drive
Adjustment Mode
Self Aligning Welding Rotator
Other Rotators
Screw Gear Welding Rotator
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Type:
Welding Turning Rolls
Structure:
Platform
Voltage:
220-600V
Condition:
New
Model:
Ztg-150
Max Loading Weight:
150t

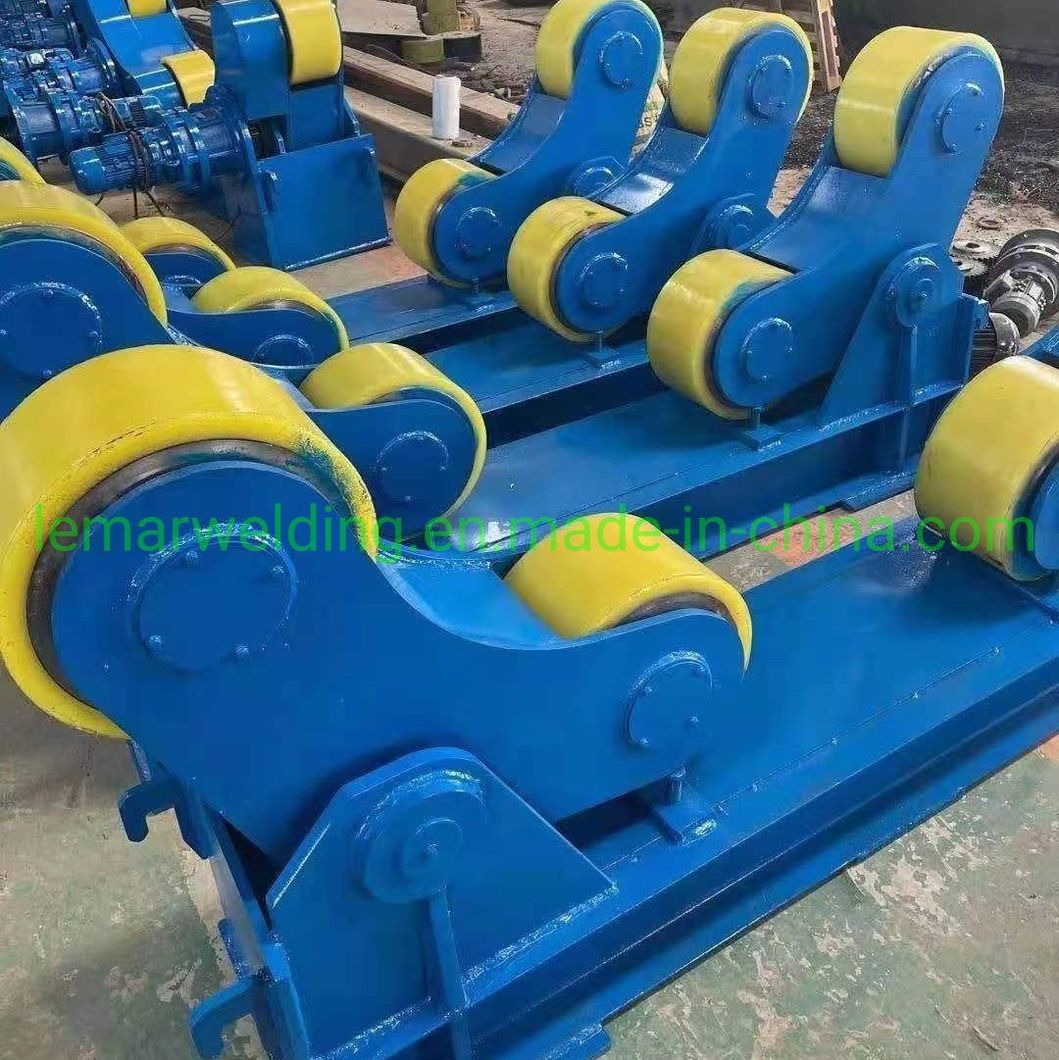

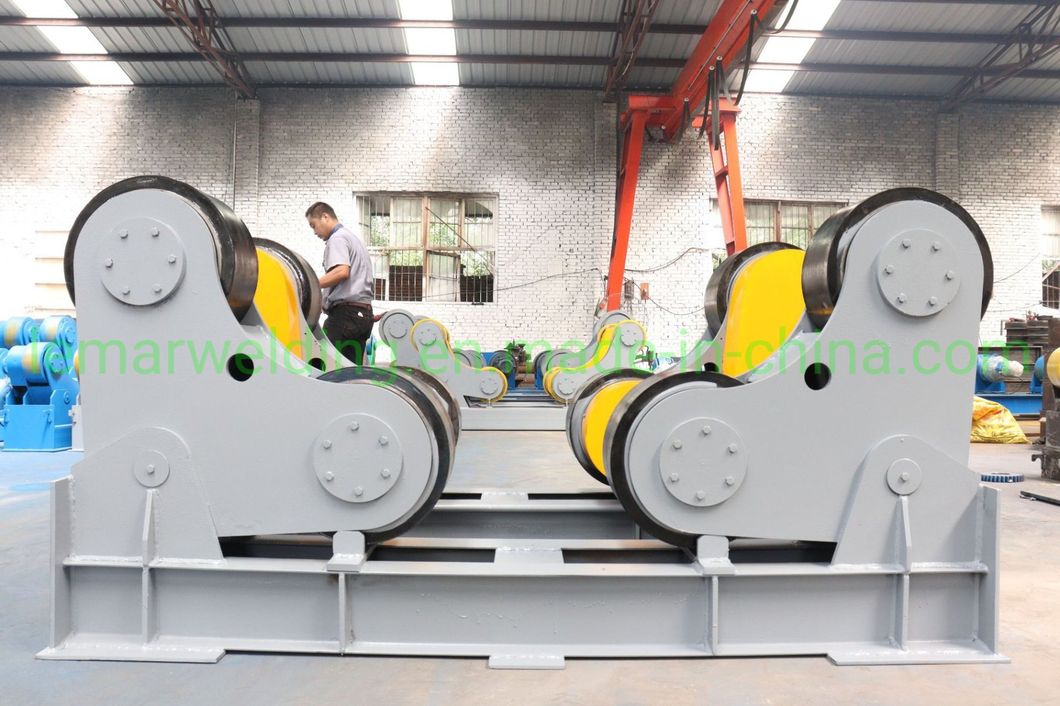

150T Dual drive pipe rotator for welding with self alignment
Why choose Wuxi Lemar welding rotators?
While an automatic welding rotator is made up of both an idle part and a driven segment, a traditional or manual welding rotator just has idle rollers.
Self-aligning pipe rotators automatically adjust to the object's size and shape both during placement and welding.
Self-aligning rotators can handle asymmetrical and oval shapes while minimizing manual handling.
We provide a comprehensive range of pipe tank welding turning rolls, relying on years of experience.
For pipe spooling and pipe welding applications that need for positioning and mechanized welding, our pipe rotators are made to deliver full rotation of heavy offset loads.
We strive to provide you with the greatest items to meet your needs.
Check out our website if you're seeking for a similar product with different specifications.
Specifications:
How to properly clean the bottom of the roller rotators?
1. When cleaning the self-adjusting or adjustable welding rollers, first remove the support frame wheel and other parts installed on the tube wheel; put the removed parts into the vessel, and add technical washing at a ratio of 1:5. Detergent and water to carry out simple cleaning, pay attention not to soak for a long time;
2. Dip a clean rag with a 1:5 mixed detergent to clean all the welding roller frames, and clean and remove the outside dirt;
3. After cleaning all parts, use a dry rag to clean, and then pour the original configuration maintenance agent to clean the appearance of the roller frame;
4. Install all the accessories of the welding roller turning rolls that are disassembled and assembled.
Daily maintenance of the welding tool turning rolls:
1. In order to better ensure the quality, performance index and service life of the 250T screw adjustable welding roll rotators, be sure to check the appearance of the roller rotators before application
2. All gearboxes should be lubricated on time, and dirt should be prevented from falling into the whole process of lubricating and application.
3. Cover the power switch, run the motor for trial operation, observe whether all parts are running normally, and work only after confirming that there is no problem.
4. During installation, the height-width ratio and vertical position of the roller frame of the master-slave relationship are specified. If not placed properly, the weldment will move during the entire rotation.
5. Usually pay attention to the environmental sanitation around the adjustable welding tool welding rotators and rolls, so that the machinery and equipment can work normally in the cleaned natural environment.
Why choose Wuxi Lemar welding rotators?
While an automatic welding rotator is made up of both an idle part and a driven segment, a traditional or manual welding rotator just has idle rollers.
Self-aligning pipe rotators automatically adjust to the object's size and shape both during placement and welding.
Self-aligning rotators can handle asymmetrical and oval shapes while minimizing manual handling.
We provide a comprehensive range of pipe tank welding turning rolls, relying on years of experience.
For pipe spooling and pipe welding applications that need for positioning and mechanized welding, our pipe rotators are made to deliver full rotation of heavy offset loads.
We strive to provide you with the greatest items to meet your needs.
Check out our website if you're seeking for a similar product with different specifications.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
KTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
KTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
KTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
KTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
KTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
KTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
KTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
KTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
KTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
KTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| KTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| KTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
1. When cleaning the self-adjusting or adjustable welding rollers, first remove the support frame wheel and other parts installed on the tube wheel; put the removed parts into the vessel, and add technical washing at a ratio of 1:5. Detergent and water to carry out simple cleaning, pay attention not to soak for a long time;
2. Dip a clean rag with a 1:5 mixed detergent to clean all the welding roller frames, and clean and remove the outside dirt;
3. After cleaning all parts, use a dry rag to clean, and then pour the original configuration maintenance agent to clean the appearance of the roller frame;
4. Install all the accessories of the welding roller turning rolls that are disassembled and assembled.
Daily maintenance of the welding tool turning rolls:
1. In order to better ensure the quality, performance index and service life of the 250T screw adjustable welding roll rotators, be sure to check the appearance of the roller rotators before application
2. All gearboxes should be lubricated on time, and dirt should be prevented from falling into the whole process of lubricating and application.
3. Cover the power switch, run the motor for trial operation, observe whether all parts are running normally, and work only after confirming that there is no problem.
4. During installation, the height-width ratio and vertical position of the roller frame of the master-slave relationship are specified. If not placed properly, the weldment will move during the entire rotation.
5. Usually pay attention to the environmental sanitation around the adjustable welding tool welding rotators and rolls, so that the machinery and equipment can work normally in the cleaned natural environment.
