Model NO.
DNY-25
Conductive Way
Both-Sided
Welding Spot Number
Single
Type
Spot Welders
Duty Cycle
60%
Current
Alternating Current
Application
Ship
Transport Package
Wooden Case
Specification
CE, ISO, SGS, CCC
Trademark
SANYU, SHSY
Origin
Shanghai, China
HS Code
891230
Production Capacity
1000set /Week
Control:
Manual
Cooling Way:
Water Cooling
Style:
Fixed
Electrode Stroke:
Vertical
Electric Current:
Secondary Rectification
Transmission:
Motor - Cam

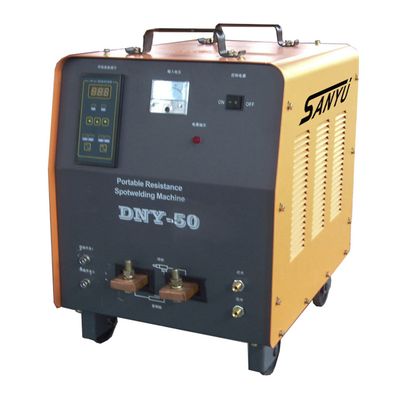

DNY series spot welders have the features as follows:
1, The main transformer of DNY series spot welder is made of imported cold rolled silicon steel, thus the transformer is less power loss and low no-load current.
2, DNY series portable spot welders have the advantages of small size, light weight; both welder and welding gun can move; don't like the old style fixed spot welder has electrode arm structure, using 2m cable for hand hold spot welding gun; the spot welding gun can weld the parts inside the work pieces; also they can form a suspension welder if to be hung up.
3, In main circuit of DNY series spot welder adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
Applications:
DNY series spot welders are widely used for welding structure instead of rivet and bolt connections, make the simple punching press pieces form a complex part by spot welding, used in a great quantity for welding medium, low carbon steel sheet, wire, stainless steel sheet.
| Model | DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated capacity | 80kVA | 50kVA | 35kVA | 25kVA | 16kVA |
| Rated input voltage | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% | 10% | 25% | 25% |
| No-load voltage | 9.5~19V | 7.6~15.2V | 7.6~15.2V | 7.6~12.7V | 6.2~11V |
| Adjustable step number | 2 | 2 | 4 | 4 | 4 |
| Welding time adjust | 0~250CYC | 0~250CYC | 0~250CYC | 0~9.99s | 0~9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | 1.5~4mm | 1.5~3.5mm | 1.2~3mm | 1~3mm | 0.6~2mm |
| Cooling mode | Main transformer: air cooling Electrode: water cooling | Main transformer: air cooling Electrode: water cooling | Main transformer: air cooling Electrode: water cooling | Main transformer: air cooling Electrode: water cooling | Main transformer: air cooling Electrode: water cooling |
