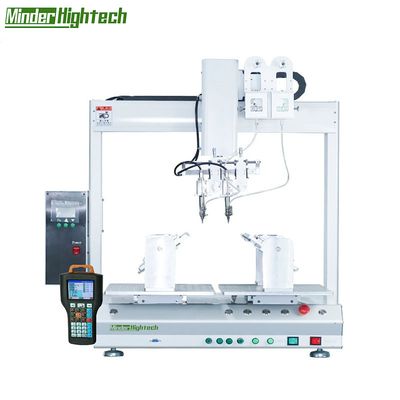

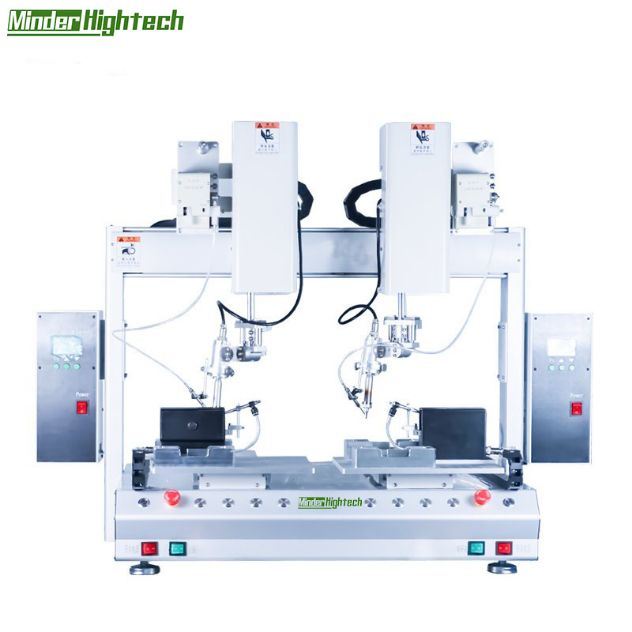

Dual platform automatic soldering machine
Distinguishing Feature
Precision temperature controller, fast temperature difference compensation
Germany WELLER imported heating core, temperature with is uniform stability
Program optimized, simple operation, teaching programming
High precise tin delivery mechanism with no tin blockage, with broken tin function
With rotary solder function, support spot soldering and drag
Technical parameter
Model | Simplex automatic soldering machine |
Temperature control system | WELLER |
Heating core | WELLER |
Temperature error | ±2ºC |
Travel range X/Y1/Y2/Z/R | 500/300/300/100/360° |
Maximum load | 15KG |
Moving speed | 0--500 |
Decomposition ability | 0.01mm/Axis |
Repeatability accuracy | ±0.02mm/Axis |
Display mode | The 100 group |
Motor system | Japan precision micro stepping motor |
Guide | Taiwan HIWIN |
Belt | Lartey synchronous belt |
Photo electricity | Omron |
Motion compensation function | 3 axis |
Input power supply | Full voltage AC110V-220V |
External control inter face | RS232 |
Body weight | 70kg |
Application:
Main configuration
Multi-axis welding platform
Stroke XYZR: 300mm/300mm/100mm/360(customizable)
Manual teaching programminge
German Weller thermostat
German Weller heating element
Taiwan HIWIN guide
Solder tip cleaning system
Smoke filtration-purification system(optional)
