Product Description
Hydraulic Butt Fusion Welding Machine
Applied to connect PE, PP&PVDF pipe and pipe fitting onconstruction site, and in workshop.
Consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.
Removable cast Aluminum PTFE coated heating plate with separatetemperature controlling system.
Electrical hydraulic pump with controls, and quick release hoses.
High-accurate and shockproof pressure meter indicates clearerreadings.
International warranty 12months.
Tool box including spare blades, thermocouple, quick couplings, sealrings, spanner and screwdriver, etc.
Optional parts: stub end device. Optional wheeled trolley is also available.
specification
| Model | SUD400H | SUD450H | SUD500H | SUD630H |
| Welding Range(mm) | 200 225 250 280 315 355 400 | 280 315 355 400 450 | 280 315 355 400 450 500 | 315 355 400 450 500 560 630 |
| Heating Plate Max. Temp | 270°c | |||
| Temp. Deviation in Surface | ≤±7°c | |||
| Pressure Adjustable Ranges | 0-8.0MPa | |||
| Working Voltage | 380V 50HZ/220V 50HZ | |||
| Heating Plate Power | 4.0KW | 5.38KW | 6.50KW | 9.35KW |
| Planning Tool Power | 1.50KW | 1.50KW | 1.50KW | 1.50KW |
| Hydraulic Unit Power | 1.50KW | 1.50KW | 1.50KW | 1.50KW |
| Total Power | 7.0KW | 8.38KW | 9.50KW | 12.35KW |
| Weight | 420KG | 450KG | 560KG | 650KG |
| Volume | 1.8m3 | 2.2m3 | 2.5m3 | 3.2m3 |

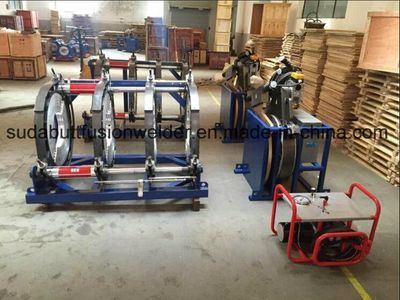

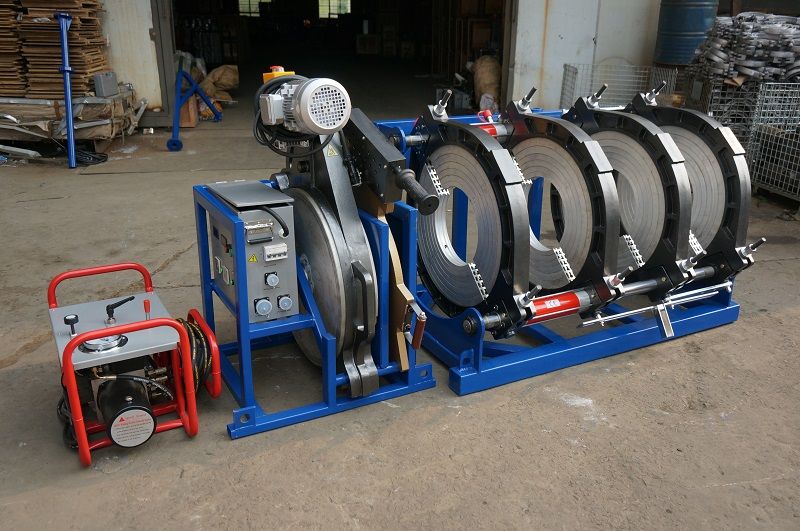

Product Photos
Our Services
1.About sample: If you have any need, don't hesitate to contact us, we will promptly provide samples to you.
2.About after-sales service : Our products have one year warranty period , so if it has quality problems within one year , you can find our warranty .
3.We can customize product according to the requirements of customers.
4.Your inquiry related to our product or price will be replied in 24 hours.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
1.why choose our factory ?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad
2.The advantage for product?
High efficiency , energy saving and good quality.
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary. The machine have one year warranty.
6. What payment is available?
L/C at sight, or T/T 100% shipment.
