Model NO.
JMF50-200
Working Style
Grain
Disc Diameter
180mm
Variable Speed
With Variable Speed
Voltage
220V, 380V, Customized
Power
1.1-18.5kw
Speed
2800rpm
Emulsifized Size
2-40um
Inlet Diametet
30-100mm
Outlet Diameter
20-38mm
Accessory
Pipe, Valve, Pump, Filter, Tank etc.
Output
0.01-10t/H
Millstone Size
50-200um
Usage
Corn, Bean, Peanut, Sesame, Sunflower, Tomato etc
Transport Package
Plywood Case
Specification
Vary
Trademark
HUNDOM
Origin
Guangzhou
HS Code
8479820090
Production Capacity
100 Set/Sets Per Month
Type:
Angle Grinder
Power Source:
Electricity
Object:
Milling Cutter
Application:
Food
Disc(Wheel) Type:
Grinding Disc
Material:
Steel

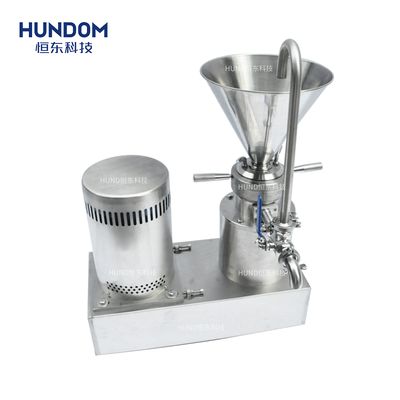

Tag:Sanitary Peanut/Sesame Paste Making/Grinder Machine with Protect Shell
Official website address 1: https://findtextile.com/store/gzhundom
Official website address 2: http://findtextile.com/store/gzhundom
Working Principle
Colloid mill works by cutting,grinding and high speed stirring,Rely on two teeth grinding contoured surface of relative movement,wherein an adjustment rotation a stationary one between shear and friction while the high-frequency vibration,highrole-speed vortex complex forces so that the next material effective dispersing,emulsifying,grinding,homogenization.Viscosity and fineness of the final product depends on the material handling capacity requirements like the election you have difficulties,you can consult our professional engineers.
Features
1.Colloid mill compact design.good looks,good seal,stable performance,easy operation,simple decoration and high production efficiency is ideal for handling fine materials processing equipment.
2.Colloid mill products in addition to the motor and some parts in contact with material components used in all high-quality stainless steel i s particulary critical of the dynamic and static disc intensive treatment,therefore has good corrosion resistance and wear resistance,so that the processing of non-polluting materials hygiene.

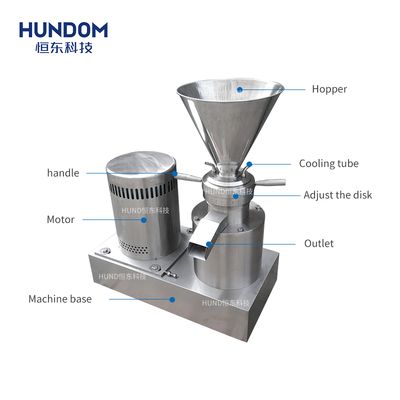

3.Colloid mill constructed from the heart of the main components,the base drives,special motor three parts.Fixed grinding mill which the central portion of the heart and the mind quiet mill is a key part of the machine so ,according to the nature of the material being treated different selection may different.But the material is made of stainless steel.
Technical Parameters
Product Show:
For better and quicker reply and service, please contact our sale manager Vivian Liu:
Welcome to visit our factory !
Official website address 1: https://findtextile.com/store/gzhundom
Official website address 2: http://findtextile.com/store/gzhundom
Working Principle
Colloid mill works by cutting,grinding and high speed stirring,Rely on two teeth grinding contoured surface of relative movement,wherein an adjustment rotation a stationary one between shear and friction while the high-frequency vibration,highrole-speed vortex complex forces so that the next material effective dispersing,emulsifying,grinding,homogenization.Viscosity and fineness of the final product depends on the material handling capacity requirements like the election you have difficulties,you can consult our professional engineers.
Features
1.Colloid mill compact design.good looks,good seal,stable performance,easy operation,simple decoration and high production efficiency is ideal for handling fine materials processing equipment.
2.Colloid mill products in addition to the motor and some parts in contact with material components used in all high-quality stainless steel i s particulary critical of the dynamic and static disc intensive treatment,therefore has good corrosion resistance and wear resistance,so that the processing of non-polluting materials hygiene.
3.Colloid mill constructed from the heart of the main components,the base drives,special motor three parts.Fixed grinding mill which the central portion of the heart and the mind quiet mill is a key part of the machine so ,according to the nature of the material being treated different selection may different.But the material is made of stainless steel.
Technical Parameters
| Model | Emulsifized size(um) | Output (t/h) | Millstone Dia(mm) | Cooling water pipe (mm) | Outlet Dim(mm) | Inlet Dia (mm) | Speed (r/min) | Motor (kw) |
| JML-50 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 2800 | 1.5(220v) |
| JML-50 | 0.01-0.1 | 50 | 10 | 20 | 30 | 1.1(380v) | ||
| JML-65 | 0.02-0.5 | 65 | 10 | 20 | 30 | 1.5 | ||
| JMF-65 | 0.02-0.5 | 65 | 10 | 20 | 30 | 2.2 | ||
| JMW-80 | 0.3-1 | 80 | 12 | 25 | 48 | 3 | ||
| JML-80 | 0.3-1 | 80 | 12 | 25 | 48 | 3 | ||
| JMF-80 | 0.3-1 | 80 | 12 | 25 | 48 | 3 | ||
| JMW-100 | 0.5-2 | 100 | 12 | 25 | 66 | 5.5 | ||
| JML-100 | 0.5-2 | 100 | 12 | 25 | 66 | 5.5 | ||
| JMF-100 | 0.5-2 | 100 | 12 | 25 | 66 | 5.5/7.5 | ||
| JMW-120 | 0.5-3 | 120 | 12 | 32 | 66 | 7.5 | ||
| JML-120 | 0.5-3 | 120 | 12 | 32 | 66 | 7.5 | ||
| JMF-120 | 0.5-3 | 120 | 12 | 32 | 66 | 7.5 | ||
| JMW-140 | 0.5-4 | 140 | 12 | 32 | 66 | 7.5 | ||
| JML-140 | 0.5-4 | 140 | 12 | 32 | 66 | 7.5 | ||
| JMF-140 | 0.5-4 | 140 | 12 | 32 | 66 | 7.5/11 | ||
| JMF-180 | 1-7 | 180 | 12 | 38 | 100 | 11/15 | ||
| JMF-200 | 1-10 | 200 | 12 | 38 | 100 | 15/18.5 |
For better and quicker reply and service, please contact our sale manager Vivian Liu:Welcome to visit our factory !
