Model NO.
Button Bit sharpening
Trademark
BESTLINK
Origin
China
HS Code
84609090
Production Capacity
1000PCS/Year
Type:
Button Bit Sharpening
Power Source:
Pneumatic
Object:
Drilling Bit
Application:
Construction
Material:
Steel
Transport Package:
Carton

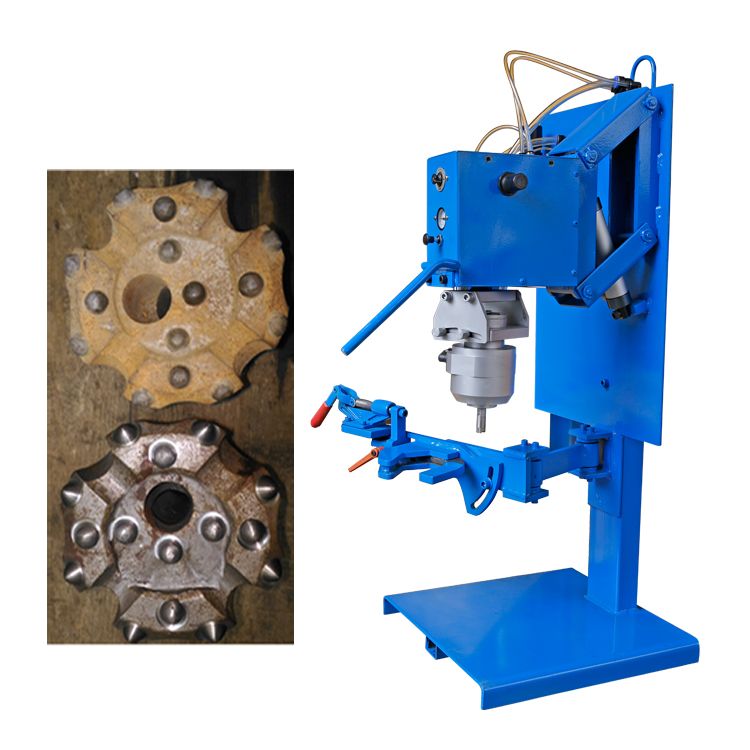

Bestlink Pneumatic Carbide Button Bit sharpening Grinding Machine
Depending on your needs the grinders listed on the left are available in both pneumatic and semi-hydraulic configuration. The pneumatic system is what set the standard for button bit grinding and still proves to be a very effective tool for maximizing bit performance in all drilling conditions.
Video online: https://youtu.be/btsrPuTcEQ4
Depending on your needs the grinders listed on the left are available in both pneumatic and semi-hydraulic configuration. The pneumatic system is what set the standard for button bit grinding and still proves to be a very effective tool for maximizing bit performance in all drilling conditions.
Video online: https://youtu.be/btsrPuTcEQ4
| Rotation speed | 20000 rpm | |
| Motor: Pneumatic (air powered) Power output | 1.5 KW | |
| Work pressure | 5-7 bar (100 psi) | |
| Max. air pressure | 8 bar (115 psi) | |
| Air consumption | 2.2 m3 / min (80ft3/min) | |
| Max. water pressure | 4 bar (60 psi) | |
| Air hose diameter | 19 mm | |
| Water hose diameter | 4 mm | |
| Weight excl. packaging | 120.0 Kg | |
| Weight incl. Packaging | 130.0 Kg | |
| Sound level | 92 dB(A) |
