Vertical Filter Cartridge Dust Collector for Blast Machines
Descriptions of cartridge dust collector :

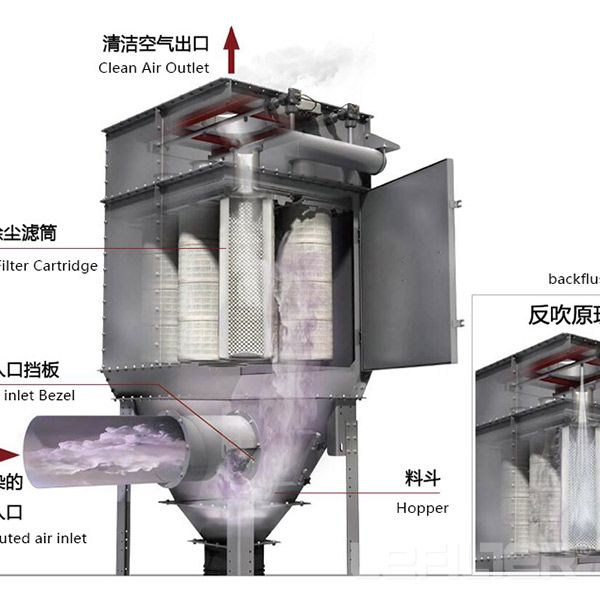

The cartridge dust collector is operated under negative pressure. The dust-containing gas enters the tank through the air inlet; Under the action of the negative pressure in the folding filter cartridge, the gas enters the cylinder through the filter material outside the cylinder, and then enters the clean air chamber, and finally the clean gas is discharged from the air outlet. When the dust accumulates on the surface of the filter material, the resistance is getting larger and larger (can also be set by time), the pulse valve is opened, the compressed air is directly sprayed into the center of the filter cartridge, and the filter cartridge is sequentially pulsed to remove the dust, and the dust on the surface of the filter cartridge is purged.
Features:
1.High dust removal efficiency, it can filter fine dust.
2. Modular combination, small size and easy installation.
3.Simple operation and easy maintenance.
4.Low resistance loss. The maximum resistance of the equipment is not more than 1500Pa.
Applications
Metal working, mineral, cement, shipbuilding, painting, welding smoke, tobacco, cleaning (spray) pills, electricity, food, chemicals, building materials.
Technical Data
| Model | Cartridge Numbers | Filter Area(Sq.M)* | Valve Numbers | Standard Container Loading Numbers 20GP 40GP 40HQ | ||
| CDHR 2-8 | 8 | 184 | 4 | 4 | 9 | 9 |
| CDHR 2-12 | 12 | 276 | 6 | 3 | 7 | 7 |
| CDHR 2-16 | 16 | 368 | 8 | 2 | 5 | 5 |
| CDHR 2-24 | 24 | 552 | 12 | 1 | 3 | 3 |
| CDHR 2-36 | 36 | 828 | 18 | 1 | 2 | 2 |
| CDHR 3-12 | 12 | 276 | 6 | 4 | 9 | 9 |
| CDHR 3-24 | 24 | 552 | 12 | 2 | 4 | 4 |
| CDHR 3-36 | 36 | 826 | 18 | 1 | 3 | 3 |
| CDHR 3-48 | 48 | 1104 | 24 | 1 | 2 | 2 |
| CDHR 3-60 | 60 | 1380 | 30 | 1 | 1 | 1 |
| CDHR 3-72 | 72 | 1656 | 36 | 0 | 1 | 1 |
| CDHR 4-16 | 16 | 368 | 8 | 4 | 8 | 8 |
| CDHR 4-32 | 32 | 736 | 16 | 2 | 4 | 4 |
| CDHR 4-48 | 48 | 1104 | 24 | 0 | 0 | 3 |
| CDHR 4-64 | 64 | 1472 | 32 | 0 | 0 | 2 |
| CDHR 4-80 | 80 | 1840 | 40 | 0 | 0 | 1 |
| CDHR 4-96 | 96 | 2208 | 48 | 0 | 0 | 1 |
| CDHR 4-112 | 112 | 2576 | 56 | 0 | 0 | 1 |
| CDHR 4-128 | 128 | 2944 | 64 | 0 | 0 | 1 |
* The filter areas are based on the filters with cellulose media. Please contact us for filter area with other filter media
FAQ
Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter, 20 years production experience, 11 years export experience .
Q: How can I get the quotation?
A: Tell us the specifications of dust collectors, such as working situation, dust or fume characteristics, airflow(CFM), filter area(M2), inlet temperature(ºC), wind speed(M/min) etc. We will send the quotation within 24 hours.
Q: How about the after-sale installation of dust collector?
A: Most of the components have been installed and tested before delivery. The site installation is very simple.
1.We provide installation manual /video, technical consulting forever. Our engineers are available to help you install dust collector onsite.
2.We also can provide installing turn-key projects overseas.
http://findtextile.com/store/chinafilters
More filter material you can choose
1.100% cellulose (H&V material)
2.80% cellulose+20%polyester (H&V material)
3.80% cellulose+20%polyester Flame retardant (H&V material)
4.Nano-web
5. Nano-web Flame retardant
6.Polyester(white,black for choose)
7.Polyester+Flame retardant
8.Polyester+oil,water resistant
9.Polyester+Antistatic
10.Polyester+PTFE membrane+Antistatic
11.Polyester+PTFE membrane
