Certification
CE, ISO
Installation Method
Integrated
Operation Type
Automatic
Medium Material
PTFE Cartridge Filter
Dust Collecting Method
Dry
Type

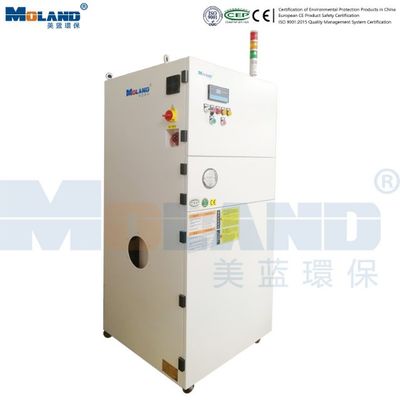

Filter Cartridge Dust Collector
Model
Mlwf350
Motor Power
3kw
Air Volume
3500 M³/H
Filter Area
20 M²
Filter Efficiency
99.7%
Size
840*800*1850mm
Trademark
MOLAND
Transport Package
Ply Wooden Bases/Paper Box/Wooden Box
Specification
310Kg
Origin
Jinan China
HS Code
8421392990
·Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce
Performance description
· Integral structure with Fuma wheel at the bottom, flexible movement and fixing
· Anti-suction device to make the effect of ash cleaning more thorough
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring:
alarm for low pressure of gas source to prevent incomplete dust cleaning.
· Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference
Recommended working condition
Welding Workstation (3m x 2.5m x 4m)
Artificial Welding Position *2
Grinding machine, intersecting wire cutting and oth er working conditions
Standard Configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· 30L Dust Collection Drawer
· Left and right air intakes (φ200)
· 5m Power cord
· Spark trap (large particle dust pre-filter)
Spare parts
· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm(φ160)
· Suction duct(φ200)
| Power | 3.0kw |
| Voltage | 380V /50Hz |
| Air Volume | 3000-3500m³/h |
| Accuracy | 0.3μm |
| Filter material | PTFE Cartridge Filter |
| Filter Area | 20m² |
| Filter Size | ∅325*660mm (2 branches) |
| Cleaning | Automatic dedusting |
| Noise | 75dBA |
| Size | 840×800×1850mm |
| Weight | 310kg |
