Model NO.
3G OBD Tracker TK208S-WY
OBD Connector
Male
Wireless Immobilizer
Support
Engine on Alarm
Yes
Transport Package
Neutral Packing or Customized Packing
Specification
3G OBD Tracker TK208S
Trademark
TOPTEN
Origin
Guangdong, China
HS Code
851230
Production Capacity
1888 PCS Per Month
Application:
Car, Truck, Fleet
GSM Frequencies:
Quad-Band
Receiving Ways:
56 Channels
Backup Battery:
Internal
Mobile APP:
Android, Ios
Antenna:
Internal

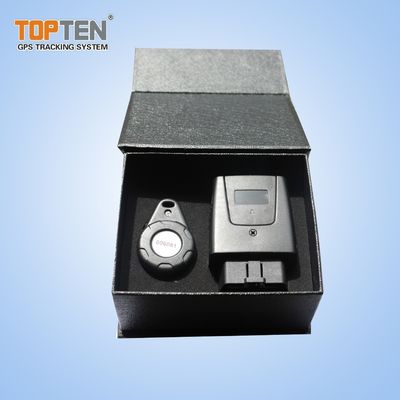

Plug and Play OBD 3G GPS Tracker With Trace Optimization TK208S
TK208 OBD GPS tracker is the cost-effective solution for security & real-time tracking. It has unique features as followings:
- Plug & play design with OBD connector, easy installation;
- Smart engine ON/OFF status detection;
- Support RFID & wireless immobilizer for security.
Features & Functions for OBD 3G GPS Tracker:
1. Track on SMS, Web or APP;
2. RFID identification, supports 2.4G active RFID reader & Mifare1 IC card reader;(optional)
3. Support 2.4G keyless alarm functions, arm/disarm by SMS/web/calling/RFID tag;
4. Check the car's real physical address (such as city & street name.);
5. Check the location by LBS directly even there is no any GPS signal;
6. Smart engine on/off status detection;
7. Voice monitoring;
8. Engine on alarm, power failure alarm, vibration alarm, movement alarm, Geo-fence alarm, over-speed alarm;
9. Track by time interval or by distance;
10. Wireless immobilizer to stop the car safely by SMS or Web(optional);
11. Speed limiter, when the speed is over limitation,the relay will response to slow down the car automatically;
12. Crash alarm, when there is crash & it can detect it automatically;(optional)
13. Voltage:10V-60VDC, suitable for car or most big trucks with OBD connector;
14. Smart Power save design for protection of vehicle battery;
15. Trace optimization when vehicles turns a corner;
16. 8M-bit offline data logger, it can store up to 9,090 waypoints.
17. User-defined SMS contents in different languages;
18.Industrial design with high performance ARM7 processor;
Specifications:
Realtime GPS Tracking System:
findtextile.com/store/topten800 username: abcdeee password: 111111
ISO 9001 certificate for TOPTEN gps tracker, car alarm factory:
FAQ:
Q: Does it have a back up battery?
A: Yes this devices has rechargeable back up battery for emergency.
Q: Will it work if it's disconnected from car battery?
A: Yes. The device has back up battery. Even if it's disconnected from car, the device will still work till battery dies.
Q: Does it work on big trucks?
A: Yes. The working voltage of this device is 10V-60V. It works on small cars, vans, big trucks.
Q: Can I check my vehicle location from any computer?
A: Yes, with the coordinates received by your mobile phone you can check your vehicle location from any computer in the world with Internet access and Google maps (no download or special software required).
Q: Can I track more than one vehicle from my mobile phone?
A: Yes, any number of vehicles. Just select the tracker's number you want to track from your mobile phone contacts list.
Delivery time:
Order <300pcs, products will be delivered in 3 working days upon receipt of the payment;
Order >300pcs, products will be delivered in 3-7 days or according to our production schedule
Warranty:
We provide 12 months warranty for all product.
In case of any defective GPS tracker, customers can send it back to us, we'll examine and fix it.
Payment:
T/T, Western Union, PayPal, Credit Card
With TOPTEN GPS tracker, you can track your vehicle/fleets 100% as follows:
Live track your vehicle.
Record history traces 24/7
Record speed and fuel level
Get alert once vehicle are tampered or driver is over speeding
Download reports including time, location, speed, direction, fuel, etc.
We have our own R&D team developing 4-5 new models each year.
Products are with CE, FCC certificate.
Technical support and after-sales service are available 24/7.
TK208 OBD GPS tracker is the cost-effective solution for security & real-time tracking. It has unique features as followings:
- Plug & play design with OBD connector, easy installation;
- Smart engine ON/OFF status detection;
- Support RFID & wireless immobilizer for security.
Features & Functions for OBD 3G GPS Tracker:
1. Track on SMS, Web or APP;
2. RFID identification, supports 2.4G active RFID reader & Mifare1 IC card reader;(optional)
3. Support 2.4G keyless alarm functions, arm/disarm by SMS/web/calling/RFID tag;
4. Check the car's real physical address (such as city & street name.);
5. Check the location by LBS directly even there is no any GPS signal;
6. Smart engine on/off status detection;
7. Voice monitoring;
8. Engine on alarm, power failure alarm, vibration alarm, movement alarm, Geo-fence alarm, over-speed alarm;
9. Track by time interval or by distance;
10. Wireless immobilizer to stop the car safely by SMS or Web(optional);
11. Speed limiter, when the speed is over limitation,the relay will response to slow down the car automatically;
12. Crash alarm, when there is crash & it can detect it automatically;(optional)
13. Voltage:10V-60VDC, suitable for car or most big trucks with OBD connector;
14. Smart Power save design for protection of vehicle battery;
15. Trace optimization when vehicles turns a corner;
16. 8M-bit offline data logger, it can store up to 9,090 waypoints.
17. User-defined SMS contents in different languages;
18.Industrial design with high performance ARM7 processor;
Specifications:
| Working voltage: | 10 ~60VDC |
| Power Consumption: | Standby current:8mA Working current: 50mA; Peak current: 800mA; |
| Inside Backup battery: | Rechargeable 3.7V 350mAh Li-ion battery |
| Size of the main unit: | 70*51*26 (mm) |
| Weight of the main unit: | 55g |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
| GSM frequencies: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz/2100MHz |
| Receiving ways | 56 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Receiving sensibility | -162dBm |
| Positioning accuracy | ≤10m (wide-open area) |
| Speed accuracy | ≤0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec., average |
| Warm start | 2 sec., average |
| Cold start | 40 sec., average |
Realtime GPS Tracking System:
findtextile.com/store/topten800 username: abcdeee password: 111111
ISO 9001 certificate for TOPTEN gps tracker, car alarm factory:
FAQ:
Q: Does it have a back up battery?
A: Yes this devices has rechargeable back up battery for emergency.
Q: Will it work if it's disconnected from car battery?
A: Yes. The device has back up battery. Even if it's disconnected from car, the device will still work till battery dies.
Q: Does it work on big trucks?
A: Yes. The working voltage of this device is 10V-60V. It works on small cars, vans, big trucks.
Q: Can I check my vehicle location from any computer?
A: Yes, with the coordinates received by your mobile phone you can check your vehicle location from any computer in the world with Internet access and Google maps (no download or special software required).
Q: Can I track more than one vehicle from my mobile phone?
A: Yes, any number of vehicles. Just select the tracker's number you want to track from your mobile phone contacts list.
Delivery time:
Order <300pcs, products will be delivered in 3 working days upon receipt of the payment;
Order >300pcs, products will be delivered in 3-7 days or according to our production schedule
Warranty:
We provide 12 months warranty for all product.
In case of any defective GPS tracker, customers can send it back to us, we'll examine and fix it.
Payment:
T/T, Western Union, PayPal, Credit Card
With TOPTEN GPS tracker, you can track your vehicle/fleets 100% as follows:
Live track your vehicle.
Record history traces 24/7
Record speed and fuel level
Get alert once vehicle are tampered or driver is over speeding
Download reports including time, location, speed, direction, fuel, etc.
We have our own R&D team developing 4-5 new models each year.
Products are with CE, FCC certificate.
Technical support and after-sales service are available 24/7.
