Model NO.
HS-101C
Interface
RCA
Function
Night Vision, with Gauge, Waterproof, Dustproof, Shockproof
Definition
720tvl
Chip
Ahd
Waterproof Grade
IP67
Alarming Distance
2.5-0.35m
Probe Diameter
24mm
Horizontal Angle
170 Degree
IC Chip
9532/1233/2053
Lens Type
Glass Fisheye Lens
Shutter Speed
1-1/12000
Minimum Illumination
0.01 Lux/F=1.2(0 Lux with IR on)
Video Output
RCA Connector
White Balancewhite Balance
Auto
Transport Package
Carton Box
Specification
16.5*9.5*8.5
Trademark
HANTUE
Origin
Shenzhen, China
HS Code
8521909090
Production Capacity
500000PCS/Year
After-sales Service:
1 Year
Warranty:
1 Year
Applicable Model:
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, Harvester, Corn Machine
Shell Material:
ABS Plastic
Probe Number:
2
Display Type:
LCD Matrix

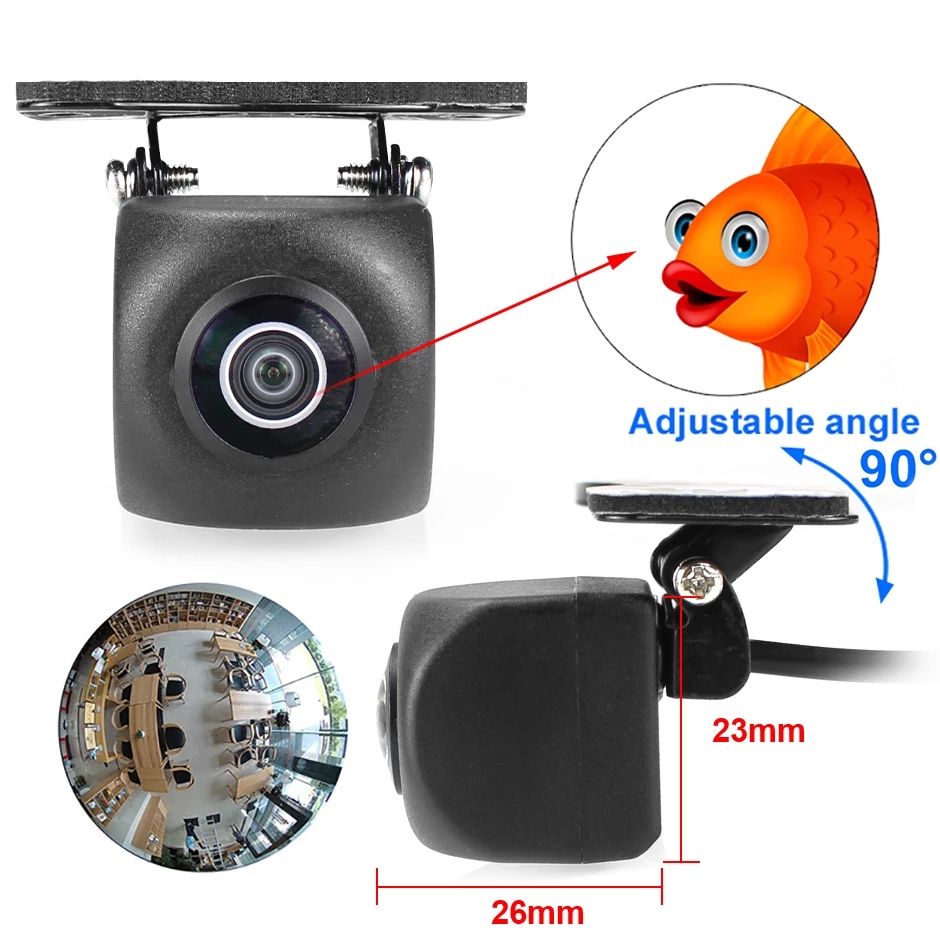

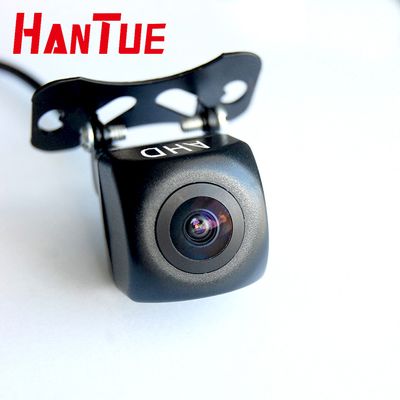

Car Camera 170 Degree Fisheye Lens HD CCD/AHD 12V Reversing Camera Night Vision Waterproof Car Rear View Camera
Product Features:
1) Original fitting by replacing the shelf of license light or Universal installation
2) Smart size for hidden installation.
3) 1/3"CCD/AHD
4) Lens: 170 degrees
5) Waterproof and dust-proof (IP67) CCD/AHD camera
6) With car reversing reference line(optional)CCD/AHD camera.
7) License light available on partial models.
8) Night vision available and high definition CCD/AHD camera.
9) Day /Night sensor for automatic adjustment, minimum illumination auto fill light.
Package Contents:
1 x Car Rear View Camera
1 x Video Wire(6m)
1 x Power Wire(1.2m)
2 x Screw
1 x English User Manual
The new toys in today's cars rear view cameras. The latter feature is an invaluable piece of technology that assists drivers in several ways.
The best backup cameras eliminate dangerous blind spots.
This makes backing out of the driveway much safer if you have children, small pets or obstacles at your house and neighborhood. Sometimes you simply can't see these things in your conventional rearview mirror.
Rear view cameras make parking, driving and backing up a safer experience for everyone.
If you are in the market for this type of product, we highly recommend that you purchase one of the fine products we have researched and reviewed.
Product Features:
1) Original fitting by replacing the shelf of license light or Universal installation
2) Smart size for hidden installation.
3) 1/3"CCD/AHD
4) Lens: 170 degrees
5) Waterproof and dust-proof (IP67) CCD/AHD camera
6) With car reversing reference line(optional)CCD/AHD camera.
7) License light available on partial models.
8) Night vision available and high definition CCD/AHD camera.
9) Day /Night sensor for automatic adjustment, minimum illumination auto fill light.
| Camera Specifications : | ||
| Tem Name | Rear view camera AHD | |
| Image sensor | 1/3" 9532/1233/2053 | |
| TV system | AHD720p/AHD1080p | |
| Effective pixels | 720*488 pixels/720*576 pixels | |
| Horizontal resolutions | 600TV-720TV lines | |
| Wide-angle | 170 Degree | |
| Horizontal angle | 170 Degree | |
| Sensing area | 5.961mm *4.276 mm | |
| Shutter speed | 1-1/12000 | |
| Scan system | 2 :1 interlace | |
| Gamma no. | 0.45 | |
| S/N ratio | Better than 48dB(AGC-OFF) | |
| Minimum illumination | 0.01 Lux/F=1.2(0 Lux with IR on) | |
| Video output | RCA connector ,Other connector optional, 1.0 VP-P,75 OHM | |
| White balance | Auto | |
| Power consumption | 50-75mA | |
| Power supply | DC9V-16V | |
| Operating temperature | -25ºC - 75ºC,RH 95% MAX | |
| Storage temperature | -40ºC - 80ºC,RH 95% MAX | |
| Waterproof rateIP68 | IP67/68 | |
| Night vision Color | with | |
| Special Function(1) | Parking line on/off function | |
| Special Function(2) | Mirror image or Non mirror image option | |
| Special Function(3) | Reversing up/down function | |
Package Contents:1 x Car Rear View Camera
1 x Video Wire(6m)
1 x Power Wire(1.2m)
2 x Screw
1 x English User Manual
The new toys in today's cars rear view cameras. The latter feature is an invaluable piece of technology that assists drivers in several ways.
The best backup cameras eliminate dangerous blind spots.
This makes backing out of the driveway much safer if you have children, small pets or obstacles at your house and neighborhood. Sometimes you simply can't see these things in your conventional rearview mirror.
Rear view cameras make parking, driving and backing up a safer experience for everyone.
If you are in the market for this type of product, we highly recommend that you purchase one of the fine products we have researched and reviewed.
