Model NO.
CHD-131M CHD-132M
Waterproof Grade
IP69K
Image Sensor
1/2.8 Color Sony 307
Video Output
Ahd 1080P
Waterproof Level
IP69K
Operating Voltage
DC 12V
Infrared Distance
15 Meters
Body Interface
4-Core Aircraft Female Head Waterproof Interface
Transport Package
Standard Veise Packing Means / as Requests 4 Sets
Specification
108(W) x 78(H) x 75(D) mm
Trademark
Veise
Origin
Guangzhou China
HS Code
8501101000
Production Capacity
40000 Piece/Month
Warranty:
1 Year
Applicable Model:
SUV, Truck, Agricultural Vehicles, Engineering Vehicles, RV, Forklift, Corn Machine
Shell Material:
Aluminium
Function:
Night Vision, Waterproof, Shockproof
Definition:
Ahd 1080P
Chip:
CCD
HD Rear View Camera
HD rear view camera IP69K waterproof rating
720P/1080P horizontal resolution
18 pcs 850nm infrared LED
5G seismic rating
Heat-dissipating aluminum alloy case
Nitrogen filling to prevent fogging
Cold-resistant waterproof tail line
U-shaped + bilateral fastening support
Heating wide voltage can be customized
DC 12V operating voltage
720P/1080P horizontal resolution
18 pcs 850nm infrared LED
5G seismic rating
Heat-dissipating aluminum alloy case
Nitrogen filling to prevent fogging
Cold-resistant waterproof tail line
U-shaped + bilateral fastening support
Heating wide voltage can be customized
DC 12V operating voltage
Paramete
HD Rear view camera IP69K waterproof rating outdoor use
720P/1080P high horizontal resolution
18 pcs 850nm infrared LED assisted image night vision
5G seismic rating is suitable for harsh roads
Heat-dissipating aluminum alloy case for oxidation resistance and heat dissipation
100% vacuum and nitrogen filling to prevent fogging
Cold-resistant waterproof tail line suitable for harsh ambient temperature
U-shaped + bilateral fastening support anti-seismic design
DC 12V operating voltage from rear view monitor
Low temperature heating defrost and wide voltage functions can be added according to customer requirements
| Model | CHD-131M | CHD-132M |
| Image Sensor | 1/2.8 Color Sony 225 | 1/2.8 Color Sony 307 |
| Effective Pixels | 1280(H) X 960(V) | 1920(H) X 1080(V) |
| Horizontal Resolution | 720P | 1080P |
| Viewing angle | 130° | |
| Infrared distance | 15 meters (built-in 18 850nm infrared lamps) | |
| Signal-to-noise ratio | ≥48dB(AGC Off) | |
| Video output | AHD 720P | AHD 1080P |
| Shell material | Aluminum alloy | |
| Waterproof level | IP69K | |
| Operating Voltage | DC 12V±10% | |
| Operating temperature | -20°C~+60°C RH95%Max | |
| Storage temperature | - 30°C~+70°C RH95%Max | |
| Vibration resistance level | 5G (in line with GB-T2423056-2006 standard) | |
| Body interface | 4-core aircraft female head | |

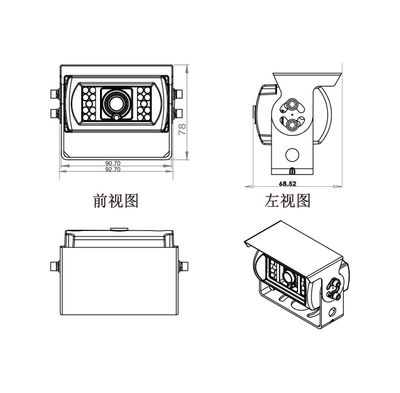

| Product Size | 108(W) x 78(H) x 75(D) mm | |
HD Rear view camera IP69K waterproof rating outdoor use
720P/1080P high horizontal resolution
18 pcs 850nm infrared LED assisted image night vision
5G seismic rating is suitable for harsh roads
Heat-dissipating aluminum alloy case for oxidation resistance and heat dissipation
100% vacuum and nitrogen filling to prevent fogging
Cold-resistant waterproof tail line suitable for harsh ambient temperature
U-shaped + bilateral fastening support anti-seismic design
DC 12V operating voltage from rear view monitor
Low temperature heating defrost and wide voltage functions can be added according to customer requirements
