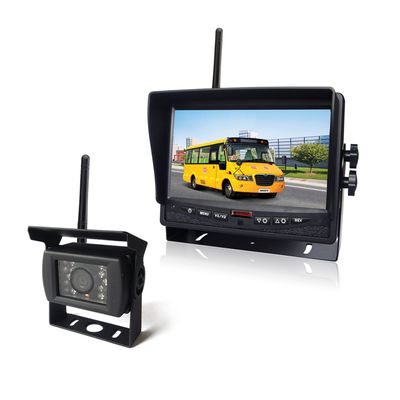

7" HD Digital wireless camera system
Model: MS-708RSW
No interference digital signal
Frequency: 2400MHZ~2483.5MHZ
Auto scanning, auto pairing
Distance: 1500M in open area
Built to withstand the shock and vibration associated with industrial applications
Dust and Waterproof design,all connectors are waterproof
Meet the requirements for hot,cold weather also shock and vibration
20G force for vibration and 100G for shock
| Panel | 7'' digital panel |
| Screen ratio | 16:9 |
| Resolution | 1024*3R.G.B*600 |
| Back Light, Luminance | LED, 350cd/m2 |
| Contrast | 1000:1 |
| Viewing Angle | UP--50º , DOWN--70º , LEFT--70º , RIGHT--70º |
| Transmitting distance | 1500M in open area |
| Power supply | DC 10-36V |
| Power consumption | <5W |
| Maximum current | <550mA |
| Working temperature | -20 to 60 ºC |
| Storage temperature | -20 to 70 ºC |

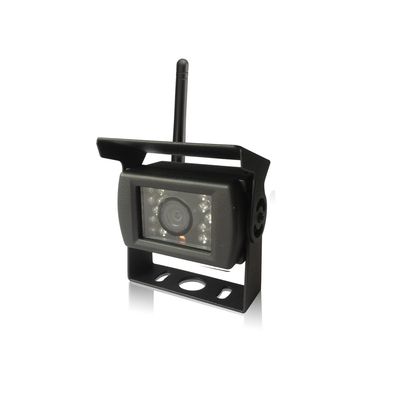

| Image sensor | 1/3'' Color |
| Active Pixels | 1292*968V |
| Chief Ray Angle | 9 degrees linear |
| Night vision range | About 5M |
| Audio input | High sensitivity, -36DB microphone |
| Waterproof level | IP69K |
| 2.4G wireless transmitting distance | 1500M in open area |
| Power supply | DC 10-36V |
| Power consumption | <5W |
| Degree | 120 degree |
| S/N ratio | More than 48 Db |
| Electron shutter | 1/100,000(s),ON/OFF |
| Video output | 1Vp-p 75Ω |
| Maximum current | <250mA |
| Working temperature | -20 to 60 ºC |
| Storage temperature | -20 to 70 ºC |
