Model NO.
clw555559
Loading Capacity
20tons, 25tons, 28tons, 30tons
Capacite De Chargement
20 T, 25 T, 30 T/20 Tonnes, 25 Tonnes, 30 Tonnes
Volume of Tanker
40cbm, 50cbm, 56cbm, 60cbm
Certification
Soncap, BV, SGS, ASME
Transport Package
Naked/Waxed Before on Board
Specification
CCC, ISO9001, ASME
Trademark
CLW
Origin
Hubei Suizhou
HS Code
8701200000
Production Capacity
1000 Unit/Month
Product Name:
40cbm LPG Tank Semi Trailer
Filling Medium:
Propane/LPG/Liquefied Petroleum Gas/Propylene/Isob
Filling Ratio:
0.42~0.49ton/Cubic Meter
Designed Pressure:
1.61MPa/1.77MPa
Tank Material:
Q345r/16mnr/Q370r/Carbon Steel
Shape of Endplate:
Ellipse(Thickness:12mm) or Round
 Main Dimensions | |
| Overall Dimensions | 11324X2500X3730mm(L×W×H) |
| Volume | 40cbm |
| Wheel Base | 6720+1320mm |
| GVW. | 30425KGS |
| Curb Weight | 13415KGS |
| Tank Body | |
| Capacity | 40CBM |
| Shape | ellipsoid |
| Design pressure | 1.61Mpa |
| Design temperature | 50ºC |
| Filling medium | Liquefied Petroleum Gas |
| Medium density | 420~590kg/m³ |
| Tank material | Q345R |
| Corrosion allowance | 1.0mm |
| Hydraulic test pressure | 2.10Mpa |
| Gas tight test pressure | 1.77Mpa |
| Shell thickness | 10.62mm |
| End plate thickness | 10.59mm |
| Vessel sort | III |
| Service life | 10 years |
| Trailer | |
| Main Beams | Special design Q345R carbon steel I beam |
| Axle | 2 axles |
| 13 Ton BPW | |
| Axle load | 17380kg |
| Landing leg | 28T JOST leg |
| King Pin | JOST 2" bolt-in king pin, 90# |
| Suspension | Leaf Spring Suspension Optional: BPW brand Air bag suspension |
| Tire | 12R22.5 Tubeless tire |
| Tire No. | 8 pcs +1 spare |
| ABS System | 1 set |

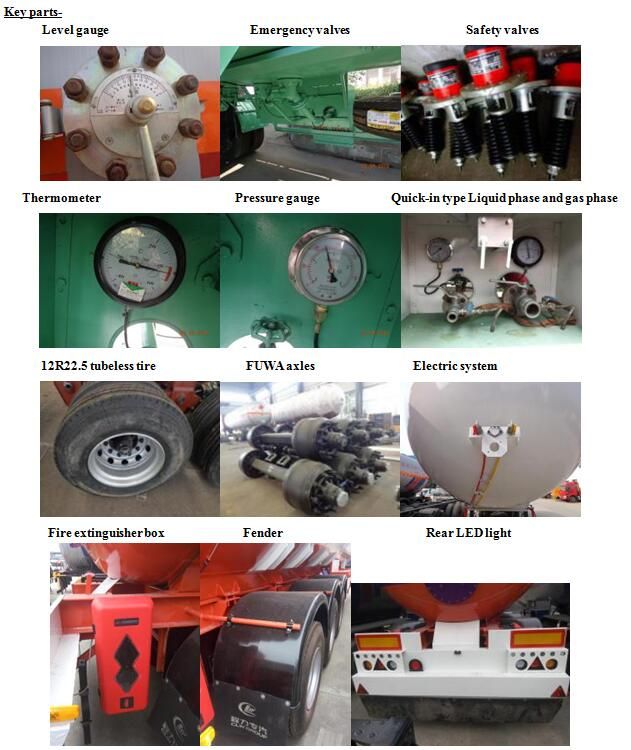

| Standard Configuration | Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, 13 tons BPW axle,9 pieces tubeless tire ,JOST leg, JOST king pin, fire extinguisher, anti-s |
