Model NO.
YQ/T-AWA-96B
Self-dumping
Not Self-dumping
ABS
Without ABS
Axle Number
1
Security Initiative Protection Device
Without Security Initiative Protection Device
Tire Number
2
Condition
New
Transport Package
Pallet
Specification
8x4
Trademark
YQ
Origin
China
HS Code
87163990
Production Capacity
5000PCS/Month
After-sales Service:
1 Year
Warranty:
1 Year
Type:
Full Trailer
Certification:
DOT, ISO
Loading Weight:
750kg
Shape:
Flatbed

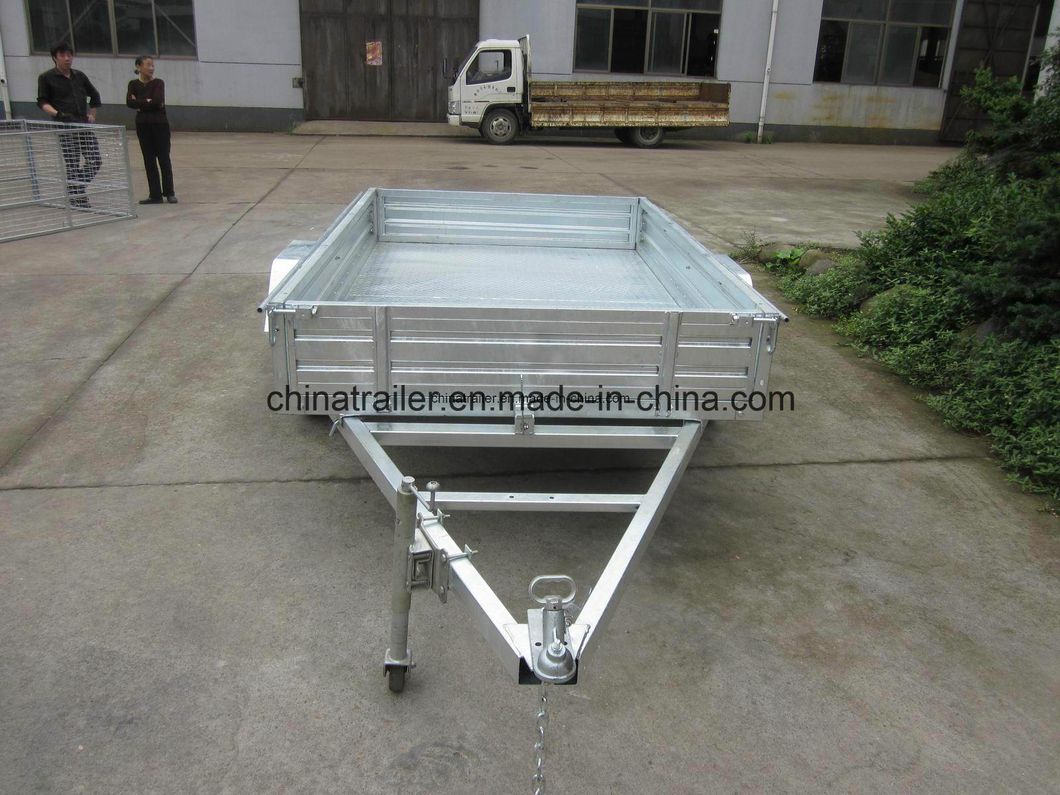

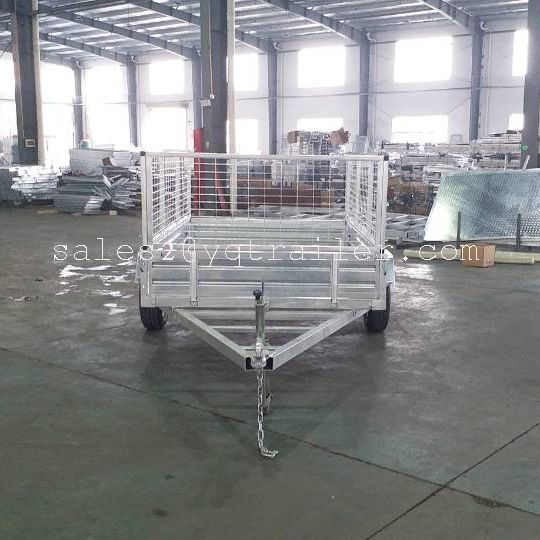

6X4 7X4 7X5 8X5 Box Dump Utility Farm Trailer For EEC
Item No : YQ/T-AWA-96B
1) Chassis Size : 2480*1280mm
2) Inner box size : 2400*1200*300mm
3) G.V.W : 750 kg
4) Tare :215kg
5) Max Loading : 535kg
6) Tire : DOT /E-Mark Approval 165/70 R 13 ( not include spare wheel )
7) 4 leaf spring (3.5.7 leaf spring can supply )
8 ) Coupler Size : according to customers rquest
9) Axle :50*50*5mm tube
11) Frame work & draw bar : box tube steel 50*70*2.75mm
12) Plywood floor as standard, ribbed zind plate floor and chequer plate floor 2.5mm are also avaliable
13) Body dimensions: 2435 × 1371 × 290 mm
14) Loading height: 557 mm
15) Protective covering: zinc
16) Plug: 7 pin
