Model NO.
ZCZ9400TDPHJA
Shape
Lowbed
Tire Number
8
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Specification/Number of Axle
11.5fw/3
Specification/Number of Tire
8.25r15 Steel Wire Tire/12
Specification/Number of Steel Rim
6.5-15/12
Type/Thickness(Mm) of Baseplate
Knurled/4
Height of Longitudinal Beam(Mm)
500
Web Thickness(Mm)
10
Specification of Side Beam
25# Channel Steel
Specification of Throughout Beam
12# Channel Steel
Specification of Traction Pin
90# Welded Type
Specification/Number of Support Leg
28t Single-Acting/One Set
Transport Package
Best Package, in Bulk, Sea Water-Proof Paint
Specification
depends
Trademark
CHHGC
Origin
Henan Province, China
HS Code
8716399000
Production Capacity
70000 Units/Year
Load Capacity:
40t
Certification:
GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base:
9000-10000mm
Tread:
1820mm
Grade:
Heavy Duty
Independent Suspension Type:
Cross Arm Type
2 Axles Excavator Lowboy trailer / Lowbed semi Trailer price
The workshop of our factory

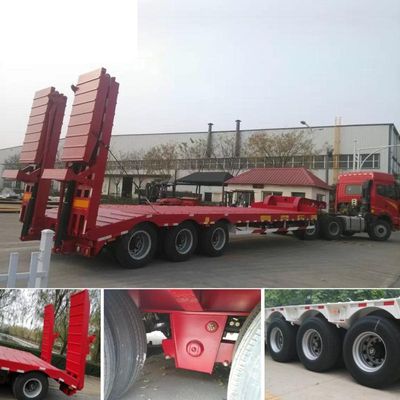

The photo of 3 axles low loader trailerr to transport heavy machines
The low loader trailers are packed ready to deliver
Semi trailer series
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the semi trailer?
A: By container, bulk ship, RORO.
Q2. Do you have different semi trailers?
A: Yes,we supply different model trailers and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model semi trailer do you supply?
A: We supply all kinds of semi trailer such as flatbed, lowerbed, skeletal, fence trailer etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
The workshop of our factory
The photo of 3 axles low loader trailerr to transport heavy machines
The low loader trailers are packed ready to deliver
| Item | Unit | Quantity | Notice |
| Overall size | 12500length*3000width*3200Height, | ||
| axle | piece | 2 | 11.5 T Fuwa axle |
| tyre | piece | 8 | 8.25R15 |
| rim | piece | 8 | 6.5 |
| leaf spring | piece | 4 | 90mm width*10 pcs*13mm thickness |
| braking system | set | 2 line air braking system with air tank , emergency relay valve,braking chambers and mechanical slack adjusters. | |
electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector. parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard, rear front and side reflectors |
| suspension | set | HAIHENG reinforced type | |
| relay valve | whole vehicle | 1 | WABCO |
| landing gear | pair | 1 | BAOHUA 28T Standard, two sides operation |
| kingpin 3.5" | piece | 1 | 50# Welded |
| tie-in | piece | 2 | haldex |
| chamber | piece | 2 | stored chamber T30/30 |
| floor | 4MM checkered type | ||
| upper and lower wing plates | 16/20mm,using the highly quality Q345 steel, | ||
| main beam | 500mm,webplate:10mm using the highly quality Q345 steel | ||
| side beam | 25# channel steel | ||
| cross beam | 12# channel steel | ||
| ramp | width: 800mm, double spring reinforced type, length depends on the drawing | ||
| reflectors | Red triangle reflectors at the rear of the trailer and on side | ||
| Shot blasting and paint | Chassis is comletely shor blasted to SA 2.5 grade, and painted with first layer of international Zinc Epoxy primer(30 Microns DEF), second layer international high built polyurethane under coat(40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. Seawater proofed,waxed | ||
| tool box | 1 | standard | |
| spare tyre carrier | 1 | according to our design | |
| color | according to your required RAL color code |
Semi trailer series
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the semi trailer?
A: By container, bulk ship, RORO.
Q2. Do you have different semi trailers?
A: Yes,we supply different model trailers and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model semi trailer do you supply?
A: We supply all kinds of semi trailer such as flatbed, lowerbed, skeletal, fence trailer etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
