Model NO.
LHY9401GYY
Independent Suspension Type
Air Suspension
Shape
Circle
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Compartment
3
Axle
BPW/Fuwa/Hj Famouse Brand Optional
Kingpin
2"/3.5′′ Bolt in Type
Tanker Body
5mm
End Plate
6mm
Anti Weave Plate
4mm
Manhole Cover
China Famouse Brand
Colour and Making
Comply with Customer′s Requirement
Landing Gear
Jost Brand Two-Speed, Manual Operation
Volume
40cbm
Transport Package
Spray Wax and by Frame Container
Specification
40cbm
Trademark
HYD
Origin
China Shandong
HS Code
8716900000
Production Capacity
8000sets/Year
Type:
Semi-Trailer
Load Capacity:
40t
Certification:
ISO9001, CCC, SGS/BV/TUV
Wheel Base:
1310
Tread:
1840
Grade:
Medium Duty
| OIL TANK SEMI TRAILER | |
| Shape | Monoblock cylinder |
| Tare weight | 9000KG |
| Color | Customized |
| Volume | 40m³ customized |
| Tank body | Q235/5mm steel |
| End plate | Q235A/6mm steel sheet |
| Axle | 2/3/4 axle FUWA/BPW/HJ brand optional 13T-16T |
| Tire | 11.00R20/12.00R20/11R22.5/12R22.5 triangle, linglong, double star brand optional optional |
| Wheel rim | 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional |
| Suspension | Mechanical suspension or air suspension |
| Leaf spring | 10 pcs*90*13mm |
| Manhole cover | 500mm manhole cover 2 sets with 2 breather valve |
| Discharge valve | 2-4 sets of $ 100mm discharge valves |
| Discharge pipe | 4'' rubber hose, 2pcs, 6m long |
| Kingpin | JOST 2"/3.5" bolt-in king pin |
| Landing gear | JOST two-speed, manual operating, heavy duty landing gear |
| Bottom value | 1-2 sets of bottom valve |
| Outside sheet | 1.2mm steel sheet |
| Compartment | Optional upon choice |
| Braking system | WABCO RE6 relay valve, T30/30 spring brake chamber; 40L air tanks |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |

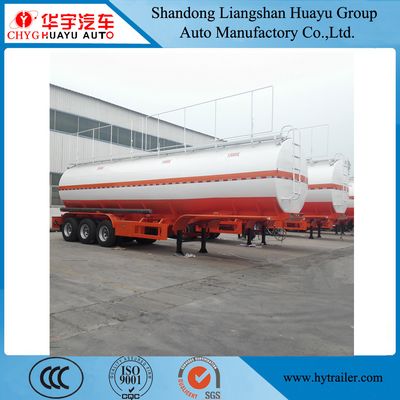

3 Axle Fuel Tanker Oil Diesel Transport Semi Tank Trailer
Competitive Advantages
1. It's our own factory, we have superior quality, reasonable price, advanced technology, fast delivery, professional service from order to shipping.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
Packaging and shipment
1. The whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ
Our workshop
Thanks to the professional design and advanced manufacture technology, make our trailer trucks more and more popular all over the world. It's one of our best-selling product, come to Huayu, you can customize different trailer trucks you like.
If you are interested in our products, pls feel free to contact with me! Thank you!
