Model NO.
40RH FC
Experice
10 Years
Producing Period
>20 Days
Frame Size
>20ft
Life Span
15
Color
Customized
Cooling Unit
Daikin/Thermo King/Carrier
Refrigerator
Without
Certificate
BV/Gl
Original Place
China
Floor
T Floor or Flat Floor
Curtain
Available
Ramp
Available
LED Light
Available
Customized Container
Available
Transport Package
None
Specification
International standard
Origin
Tianjin/Shanghai, China
HS Code
8609002100
Production Capacity
3000 Per Month
Type:
Reefer Container
Certification:
CSC
Volume:
67.3cbm
Material:
SPA-H (Corten Steel)
Length:
40′
Gross Weight:
20,000kgs

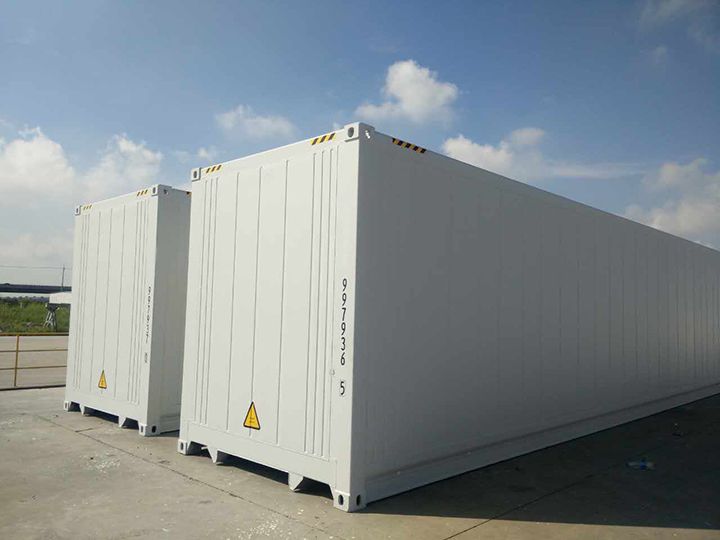

New 40 foot Non Operating Reefer Container Dimension
Besides standard reefer container, we also suppy insulated reefer container with refrigerator containers.
The front end could be kept for you to install refrigerator or sealed.
So it could be used as a insulated container.
2. New 40 foot Non Operating Reefer Container Dimension
T Floor or Flat Floor
3. Dimension of 40 foot Non Operating Reefer Container Dimension
4. FAQ
1. What's your MOQ?
1 pc for 40ft non operating reefer container dimension.
2. Can I get a 40ft insulated reefer container without cooling unit? The refrigerator will be installed by myself.
Sure. We will keep the position for your refrigerator.
3. Can I load my cargo in 40ft Insulated reefer container?
yes. Your goods should be packed very weel so that they won't damage the interior of reefer container.
4. Can I get a container with flat floor?
yes. we also make container with flat floor.
5. You have 40ft non operating reefer container dimension in stock?
Sorry. We don't have any in stock. Production period: 4 weeks.
Besides standard reefer container, we also suppy insulated reefer container with refrigerator containers.
The front end could be kept for you to install refrigerator or sealed.
So it could be used as a insulated container.
2. New 40 foot Non Operating Reefer Container Dimension
T Floor or Flat Floor
3. Dimension of 40 foot Non Operating Reefer Container Dimension
| Specifications | |||
| Dimensions | MM | FT | |
| External | Length | 12192 | 40' |
| Width | 2,438 | 8'-0" | |
| Height | 2896 | 9'-6" | |
| Internal | Length | 11590 | 38'-19/64'' |
| Width | 2,284 | 7'-6 3/16" | |
| Height | 2,544 | 8'-4 10/64'' | |
| Door Opening | Width | 2,290 | 7'-6 3/16" |
| Height | 2,596 | 8'-5 | |
| Inside Cubic Capacity | CU.M | CU.FT | |
| 67.3 | 2379 | ||
| KG | LB | ||
| Maximum Gross Weight | 34000 | 74,960 | |
| Tare Weight (excluding reefer unit) | 4,700 | 10,360 | |
| Maximum Payload | 29,300 | 64,600 | |
| Heat Leakage, U-Value | Max. 35 kcal/h°C | ||
| Air Leakage | 3.5m/h (at 25.4 mm H20) | ||
| External Cladding | |||
| Side | MGSS 0.8/1/2mm | ||
| Roof | MGSS 0.8 mm | ||
| Base | MGSS 1.0 mm | ||
| Door | MGSS 1.6mm | ||
| Internal Cladding | |||
| Side | HGSS 0.7mm | ||
| Roof | P.P White Al.0.8mm | ||
| Base | 63.5 mm high AL. T-floor | ||
4. FAQ
1. What's your MOQ?
1 pc for 40ft non operating reefer container dimension.
2. Can I get a 40ft insulated reefer container without cooling unit? The refrigerator will be installed by myself.
Sure. We will keep the position for your refrigerator.
3. Can I load my cargo in 40ft Insulated reefer container?
yes. Your goods should be packed very weel so that they won't damage the interior of reefer container.
4. Can I get a container with flat floor?
yes. we also make container with flat floor.
5. You have 40ft non operating reefer container dimension in stock?
Sorry. We don't have any in stock. Production period: 4 weeks.
