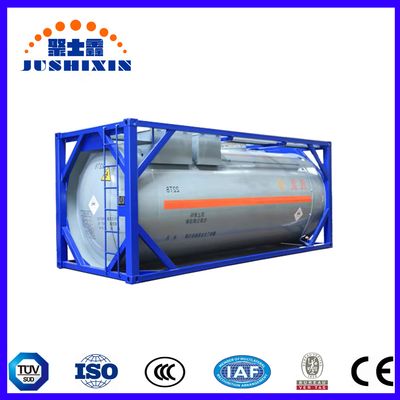

1.Product Description
The size of the tank container could be 20/30/40 feet. The volumes of the tank container are mainly 20/22/25/30/35/40/45/50/55cbm.
The basic equipment includes side outlet, double sides loading and unloading, double pumps box, double tool box, safety valve, temperature meter, pressure meter, emergency shut valve, fire extinguisher, static electricity protection ground tape, etc.
For the safe usage of the LPG products, we conduct several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.
2.Product parameters
| Description and Function Target | ||
| Items | Unit | Parameter |
| DESIGN CODES AND REGULATIONS | ASME BPVC.VIlL. 1--2015EdJISO 1496-3.T50 UN PORTAI BE TANK(IMDG.49 CFR.RID/ADR) TIR.UIC,CSC,TC,USDOT,FRA | |
| M.A.W.P | 1.70/-0.103 AT 50 ºC | |
| M.A.W.E.P | 0.1 AT 50 ºC | |
| CONTENTS | Chlorine(UN1017)-Lethal | |
| DESIGN SPECIFIC GRAVITY | 1.25 KG/L | |
| External dimension/Frame Dimension(LxWxH) | Meter | 6.058* 2.438*2.591 |
| TOTAL VOLUME(NOMINAL ±1%) | m³ | 21 |
| M.P.G.M. | kg | 39000 |
| Design temperature | ºC | -46 to +50 |
| Tare Weight | 8700KGS | |
| HYDROSTATIC TEST PRESSURE | 2.41 Mpa AT 4-48ºC | |
| M.D.M.T. | -46ºC: at 1.7 | |
| PR.V. SETTING | 1.70 | |
| frame work | GB Q235A | |
| support rings | GB Q235A | |
3.Packaging & Shipping
Packing
1 .Nude,These ISO Storage Tank Containers will be shipped via Container Vessel,will save a lot of money for you
2 Customized according to your requirement
Shipping
Port: Tianjin, Qingdao, Shanghai,Guangzhou or other ports according to your requirements.
sea fight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping;etc.
4.Certifications
Henan Lishixin Logistics Equipment Co, Ltd is located in Zhengzhou FTA, Henan Province, China,is specialized in the R & D,mass production and sales of kinds of the 20FT,30FT,40FT ISO Storage Containers and Storage Tanks as well as other special equipments.
All of our ISO tank containers will be approval by BV /LR / CCS.
5.Factory Picture
6.Customers' Visit
7: FAQ
Q:Do you provide OEM Service?
A:Yes, we have a first-class team and could design as your requirement.
Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and Railway?
A:Yeah,of course, but the price will be very different by different transportation ways; So kindly please let me know your exact transportation ways before the quoting; And also the certificates will be ready after the tank container passed all kinds of the testing &inspection.
Q: Can you provide the drawing for confirmation?
A:Sure, we'll provide the drawing after order confirmed before production.
Q: Color & logo can be choose?
A: No problem.
Q: Can I do your agent in our country or some district?
A:Yes,if you quantity is enough, no problem, the 50 units for the first time is okay.
Q: What if my question that wasn't answered in the FAQ?
A: Contact me directly. We're always happy to help!
If you are interested in our containers, please contact me, I'll help you to find suitable container and send our best quotation to you!
