Model NO.

Phosphoric Acid Tank Container

Certification

ISO9001

Volume

25000L

Material

Steel Structure

Length

20′

Gross Weight

30.4T

Experice

10 Years

Producing Period

20 Days

Frame Size

20ft

Life Span

25 Years

Color

as Customer′s Need

Tanker Body Material

6mm or 8mm/ Q235 Steel Lined PE /Stainless

Total Volume(M3)

20m3-28 M3

Transport Package

OTC / Frt / Roro Ship

Trademark

DRZ

Origin

China

HS Code

8609001200

Production Capacity

100000

After-sales Service:

Warranty:

Type:

Tank Container

Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe ( Road Transport by 30ft ISO Container Trailers)

WE can offer Stainless / Steel Iner Lined LLDPE Tank Container / Tanker Trailer with different type of Steel Lined /Coated PE Plastic or stainless steel materials like 304L and 316L.

Used for:
Acid
Chemicals
Edible Oil
Liquid food
Hydrochloric acid
Acetic Acid
Boric Acid
Milk
Alcohol
Nitric Acid

Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe (Road Transport by 30FT ISO Container Trailers)

Acid Phosphoric Tank Container

ISO Tank

The pictures are for your reference only.

Technical Parameter of Tank Container

Technical parameter of tank container
20 FT ISOTANK	20 feet insulated and steam-heated tank
Outer dimensions(mm)	6058×2438×2591
Insulating performance	Design according to user's requirement
Water testing pressure(MPa)	0.6
(mm)Insulating materials and thickness(mm)	insulated rockwood 50mm
Heating way	steam-heated tank
Capacity(m3)	According to users requirement 17,500L
Host materials	SS304 SS316l stainless steel SS304 SS316l
Thickness of shell materials(mm)	5/6/8
Thickness of Seal Head materials(mm)	5/6/8
Outer matte materials	No
Corner post materials	16Mn
,, Manhole cover, Breather valve, Foot valve	Two

Technical Specifications

Type	ISO single compartment insulated and steam-heated tank containers

Capacity	Tare weight	Max gross weight
26,000ltr 6,870lbs	4150kg 9,140lbs	34,000kg 74,890lbs
25,000ltr 6,600lbs	3970kg 8,741lbs	34,000kg 74,890lbs
24,000ltr 6,340lbs	3,375kg/4,200kg 7,431lbs/9,248lbs	30,480kg/36,000kg 67,196lbs/79.295lbs
21,000ltr 5,550lbs	3,275kg/3,800kg 7,220lbs/8,380lbs	30,480kg 67,196lbs
17,500ltr 4,626lbs	3,000kg 6,614lbs	30,480kg 67,196lbs

Dimensions	Metric	Imperial
Length	6,058mm	19'10"
Width	2,438mm	8'0"
Height	2,591mm	8'6"

Pressures	Bar	Psi
Working pressure	4.0	58
Test pressure	6.0	87
Steam working pressure	4.0	58
Steam test pressure	6.0	87
Relief valve	4.4	64

Shelf material	Stainless steel, 304 L; 316L
Design Code	ASME VIII, division I where applicable

Temperatures	°C	°F
Maximum cargo temperature	100 - 130	212 - 266

Approvals	Lloyds Construction Certificate, UIC, CSC, TIR, IM101, UK (DOT), RID/ADR, AAR600, FRA, TC.
Standard fittings
Manlid	500mm (20") diameter
Calibration	Volumetric calibration chart adjacent to manlid - dipstick provided
Airline	1.5" with stainless ball valve and 1.5" BSP cap
Relief valve	2.5" Max Highflow set at 4.4 Bar - facility to fit a second
Bottom discharge	3" stainless steel foot-valve with butterfly valve and blank flange/3" BSP cap
Top outlet	Provision for 3" butterfly valve and syphon tube
Gaskets and seals	SWR (sweet white rubber) and PTFE (Teflon)
Insulation	50mm (2") rockwool/polyurathane with G.R.R or aluminium cladding
Steam heating	7.5m2 effective surface area external steam ducts. Inlet and oulet three quarter inch BSP

ISO 40' LNG Tank Container	Bitumen tank container	ISO 20' Tank Container
IMO 1 Shell made from 316 Stainless Steel Capacity of 12,000 - 26,500 litres nominal MAWP of 4 bar For transport of: Hazardous liquids Available in 7.65, 10, 20, or 30 foot sizes Swap-bodies 7.65m and 7.82 (30,000-35,000 litres) Heating by steam or electric heating (optional) IMO 0 Shell made from 316 Stainless Steel Capacity of 12000 - 26500 litres nominal MAWP of 4 bar For transport of Wine Fruit Juices Vegetable Oils Mineral Oils Non-hazardous Oils Available in 20 foot / 6 metres Swap-bodies 7.65m and 7.82 (30,000-35,000 litres) Heating by steam or electric heating (optional)	IMO 2 Shell made from 316 Stainless Steel Capacity of 12,000 - 26,500 litres nominal MAWP of 1.75 bar For transport of:Low Hazardous liquids Available in 7.65, 10, 20, or 30 foot sizes Swap-bodies 7.65m and 7.82 (30,000-35,000 L) Heating by steam or electric heating Bitumen Tank Containers Shell made from Carbon Steel Capacity of 20,000-25,000 litres nominal MAWP of 1.75 bar Low Hazardous liquids Available in 20 or 30 foot sizes Heating by direct flame, hot oil or electric heating Cement Containers Capacity of 17.5 - 25 cubic metres Pressure discharge Road transport tank container T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank; PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.	IMO 5 Shell made from 316 Stainless Steel Capacity of 15,000 - 25,500 litres nominal MAWP of 1.75 bar For transport of gases, including: Propane Butane Refrigerants Available in 20, 30 or 40 foot sizes IMO 7 Shell made from 316 Stainless Steel or Carbon Steel Capacity of 20,000 - 24,000 litres nominal MAWP of 8 bar For transport of cryogenic gases, including: LNG Available in 10, 20, 30 or 40 foot sizes Offshore Shell made from 316 Stainless Steel Capacity of 2,000 - 10,000 litres MAWP of 5 bar For transport of gases, including: Hazardous chemicals Acid Petroleum Available in 8 x 8 x 10 sizes

T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks  for  hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank  - Ammonium Nitrate
ISO Tank  - Bio-diesel
ISO Tank  - Molasses
ISO Tank  - Caster Oil
ISO Tank  - Hexane
ISO Tank  - Ethanol
ISO Tank  - Ethylene
ISO Tank  - Methanol

ISO Tank  - IMO 1
ISO Tank  - IMO 2
ISO Tank  - IMO5
ISO Tank  - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank  - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank  - Bitumen tank containers 21,000 litres
ISO Tank  - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12,000 - 26,500 litres nominal
ISO Tank  - MAWP of 4 bar
ISO Tank  - For transport of:
ISO Tank  - Hazardous liquids
ISO Tank  - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating (optional)
ISO Tank  -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 2
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12,000 - 26,500 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - For transport of:
ISO Tank  - Low Hazardous liquids
ISO Tank  - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating
ISO Tank  - Cooling by Glycol
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 0
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12000 - 26500 litres nominal
ISO Tank  - MAWP of 4 bar
ISO Tank  - For transport of
ISO Tank  - Wine
ISO Tank  - Fruit Juices
ISO Tank  - Vegetable Oils
ISO Tank  - Mineral Oils
ISO Tank  - Non-hazardous Oils
ISO Tank  - Available in 20 foot / 6 metres
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating (optional)
ISO Tank  -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 5
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 15,000 - 25,500 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - For transport of gases, including:
ISO Tank  - Propane
ISO Tank  - Butane
ISO Tank  - Refrigerants
ISO Tank  - Available in 20, 30 or 40 foot sizes
ISO Tank  - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation.   (Contact Details above)IMO 7
ISO Tank  - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank  - Capacity of 20,000 - 24,000 litres nominal
ISO Tank  - MAWP of 8 bar
ISO Tank  - For transport of cryogenic gases, including:
ISO Tank  - LNG
ISO Tank  - Available in 10, 20, 30 or 40 foot sizes
ISO Tank  - Cooling by glycolPlease contact us if you require further information and/or a quotation.   (Contact Details above)
Bitumen Tank Containers
ISO Tank  - Shell made from Carbon Steel
ISO Tank  - Capacity of 20,000-25,000 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - Low Hazardous liquids
ISO Tank  - Available in 20 or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank  - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation.   (Contact Details above)
Cement Containers
ISO Tank  - Capacity of 17.5 - 25 cubic metres
ISO Tank  - Pressure dischargeOffshore
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 2,000 - 10,000 litres
ISO Tank  - MAWP of 5 bar
ISO Tank  - For transport of gases, including:
ISO Tank  - Hazardous chemicals
ISO Tank  - Acid
ISO Tank  - Petroleum
ISO Tank  - Available in 8 x 8 x 10 sizes
ISO Tank  - Heated by steam or electric (optional)

Technical Parameter of Tank Container

Technical parameter of tank container
40FT ISO		40 feet beam tank container
Outer dimensions(mm)		12192×2438×2438
Working temperature(ºC)		12-28
Insulating performance		Design according to user's requirement
Water testing pressure(MPa)		0.6		0.9
Insulating materials and thickness(mm)		Design according to user's requirement
Heating way		Design according to user's requirement
Capacity(m3)		20/24/26/30/35/40/50/55 20/24/26/30/35/40/50/55 According to users requirement
Host materials		Q235B,304/316L Carbon steel Q235B,stainless steel304/316L
Thickness of shell materials(mm)		5/6
Thickness of Seal Head materials(mm)		6/8

Corner materials		16Mn
Manhole cover, Breather valve, Foot valve		Domestic made or imported


Technical parameter of tank container

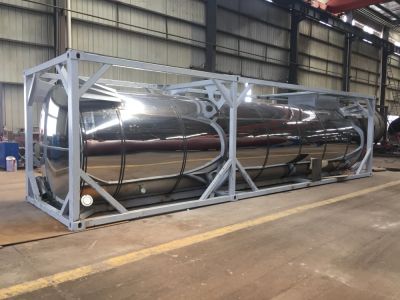

ISOTANK	30 feet beam tank container
Working temperature(ºC)	12-28(ºC)
Insulating performance	Design according to user's requirement
Water testing pressure(MPa)	0.6/0.9(MPa)
(mm)Insulating materials and thickness(mm)	/50mm 50mm Glass fiber and polyurethane
Heating way	Steam heating
Capacity(m3)	20/24/26/30/35/40/50/55(m3) 20/24/26/30/35/40/50/55 According to users requirement
Host materials	Q235B,304/316L Carbon steel Q235B,stainless steel304/316L
Thickness of shell materials(mm)	8(mm)
Thickness of Seal Head materials(mm)	8(mm)
Outer matte materials
C orner post materials	16Mn
Manhole cover, Breather valve, Foot valve	Domestic made or imported
Technical parameter of tank container
ISOTANK	20 feet beam tank container		40 feet beam tank container
Outer dimensions(mm)	6058×2438×2438		12192×2438×2438
Working temperature(ºC)	12-28(ºC)
Insulating performance	Design according to user's requirement
Water testing pressure(MPa)	0.6		0.9(MPa)
(mm)Insulating materials and thickness(mm)	/50mm 50mm Glass fiber and polyurethane
Heating way	Steam heating
Capacity(m3)	20/24/26/30/35/40/50/55(m3) 20/24/26/30/35/40/50/55 According to users requirement
Host materials	Q235B,304/316L Carbon steel Q235B,stainless steel304/316L
Thickness of shell materials(mm)	5/6(mm)
Thickness of Seal Head materials(mm)	6/8(mm)
Outer matte materials	SUS304 Stainless steel with mirror finish
Corner post materials	16Mn
Manhole cover, Breather valve, Foot valve	Domestic made or imported

Technical parameter of tank container
30 FT	30 feet beam tank container
Working temperature(ºC)	12-28(ºC)
Insulating performance	Design according to user's requirement
Water testing pressure(MPa)	0.6(MPa)	0.9
(mm)Insulating materials and thickness(mm)	/50mm 50mm Glass fiber and polyurethane
Heating way	Steam heating
Capacity(m3)	20/24/26/30(m3) 20/24/26/30According to users requirement
Host materials	Q235B,304/316L Carbon steel Q235B,stainless steel304/316L
Thickness of shell materials(mm)	8(mm)
Thickness of Seal Head materials(mm)	8(mm)
Outer matte materials
Corner post materials	16Mn
Manhole cover, Breather valve, Foot valve	Domestic made or imported

ISO Tank

40FT T75 Cryogenic Liquid Lox/Lin/Lar/Lco2/LNG Storage Tank ISO Tank Container (Liquefied Natural Gas / Ethylene / Ethane /Nitrogen /Oxygen /Methane)

20FT T50 Liquid Chlorine Isotank Container Cl2 Un1017 Max Storage Pressure 1.5MPa 21670L

20FT 20000liters Stainless Steel Nitric Acid Hno3, Hf Acid, Naoh Sodium Hydroxide ISO Tank Container SS30408

20 Feet Q235B+PE Linging Acid Sodium Salt Liquid ISO Tank Container for Corrosive Sodium 3-Chloro-2-Hydroxypropanesulfonate 20kl Drilling Fluid Petrochemicals

T14 Un Portable Tanks for Offshore Ship Transport 55% Hydrofluoric Acid Un1790, 38% Hydrochloric Acid Un1789 (21KL 20FT 22K2 ISO TANK CONTAINER)

20FT ISO Hydrochloric Acid Tank Container 21cbm (21000 Liters Steel Lined LLDPE) for Vietnam Chemical Factory Acid Trailer Transportation

Anhydrous Liquid Ammonia Isotank Nh3 ISO Tank Container 20FT 24000L

Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)

T1 ISO tank container for Wine / Juices and Light liquids
T3 ISO tank container for Petrol, Diesel, Jet Fuel, Crude Oil (ATF), Bitumen
T4 ISO tank container for Edible / Non Edible Oils
T11 ISO tank container for Non hazardous chemicals
T14 ISO tank container For Hazardous Chemicals and Acids like HCL / Caustic / sulfuric acid/ Ferric Chloride) with Rubber lining / FRP lining Inner / PE lining
T20 ISO tank container for Bromine
T50 ISO tank container for LPG / Ammonia Gas / Propane
SWAP Tank container for cargo above 28,000 Litres to 35,000 Litres

Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe (Road Transport by 30FT ISO Container Trailers)

1.Are you trading company or manufacturer ?

We are Group Corporation manufacturer ,have Group Factories Contractor.

2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.

4.Can you supply some quick-wear parts?

Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.

6.Do you have any used products for sale?

We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.

7.What's the payment terms?

TT 30% as deposit, balance before shipment by TT or at sight.

8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.

9.How can you ensure the quality of the products?

Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.

Send Message

$86800.00

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.HOWO 8X4 Rescue Truck Fire Fighting Truck with Two Cannon 20tonne Water Tanker, Fire Fighting Truck, Fire Fighting Vehicle

$1800.00

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.Stabilizing Fuel Dispenser Oil Tanker Truck Mounted Pump Flow Meter Rate 5-150L/M Petrol Oil Diesel, Dispenser, Fuel Dispenser

$27500.00

Tianjin LongTeng International Trade Co., Ltd.Dnv 2.7-1 Standard Chiller and Freezer 20FT Offshore Reefer Container with Tk Refrigerated Units, 20FT Offshore Reefer Container, Offshore Reefer Container

$11000.00

Henan Jushixin Transportation Equipment Co., Ltd.20FT 40FT Liquid Chemical Tank Stainless Steel Tank Container, ISO Tank Container, ISO Tank

$23000.00

Henan Jushixin Transportation Equipment Co., Ltd.Superior Quality ISO Tank Container Drawing T75 Cryogenic Tank Container, ISO Tank Container, ISO Tank

$500.00

Henan Joinwell Industrial Co., Ltd.Bulk Liquid Packing Foldable Plastic IBC Container / Plastic Storage Container, Plastic IBC Container, Foldable IBC Container

$18000.00

Henan Lishixin Logistics Equipment Co., Ltd.T50 LPG Liquid Chlorine Gas 20 Feet ISO Tank Container for Sale, LPG Gas Tank Container, T50 Tank Container

$300.00

Shouguang Esen Wood Co., Ltd.ISO Shipping Container Steel Castor Wheels with Brake, Container Caster, Container Wheel Caster

$0.45

Shouguang Esen Wood Co., Ltd.ISO Shipping Container Accessories Door Handle, Handle, Door Handle

$112.00

Shouguang Esen Wood Co., Ltd.JIS Scw480 Steel Shipping Container Parts Corner Casting Fittings for Sale, Container Steel Corner Fittings, Container Corner Casting

You May Like: Phosphoric Acid Tank Phosphoric Acid Tank Container Vehicle Parts & Accessories Vehicle Storage & Cargo Container & Fittings

Price	$18000.00 / Piece
Mini Order	-+Subtotal: $18000
Availability	In Stock

Purchase details Payments: Returns&Refunds: Eligible for returns and refunds View More

Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe (Road Transport by 30FT ISO Container Trailers), Phosphoric Acid Tank, Phosphoric Acid Tank Container
