Model NO.
SN-HX-010/PO
Speed
1.00-2.00m/s
Drive Mode
Manual
Control Type
Microcomputer Frequency Control
Lift Mechanism
Telescoping Lift
Use of Occasions
Public Traffic
Guide Rail
Hollow Guide
Enclosure
PC/Transparent
Switching Frequency
≤30min
Used
Elevator Parts
Transport Package
in Carton Box
Trademark
Sunny
Origin
China
Production Capacity
10000PCS/Month

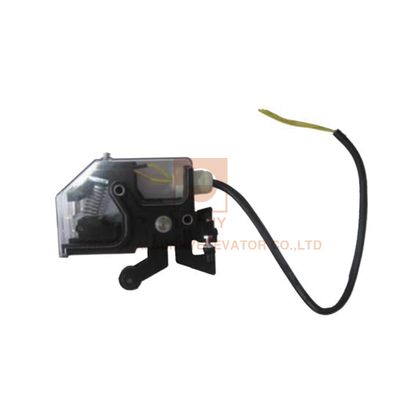

Door Switch with Elevator Part (SN-HX-010/PO)
P/N:SN-HX-010/PO PIN Separate actuator
Product PC with transparent case and black base
Such contact type and electrical signal control switch;
comprehensively applied in elevator door control circuit;
Silver contact style with high reliability.
Foreign-made reed make life much higher. Compact structure make mounting much easier.
Dimension(mm)
Installation picture
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
P/N:SN-HX-010/PO PIN Separate actuator
Product PC with transparent case and black base
Such contact type and electrical signal control switch;
comprehensively applied in elevator door control circuit;
Silver contact style with high reliability.
Foreign-made reed make life much higher. Compact structure make mounting much easier.
| Enclosure | PC/transparent | Mechanical life | 2x10 |
| Actuatuator | 2xM4/Separate actuator 2xM4 | Switching frequency | ≤30min |
| Contact type | 1 N.C | Connection | M3/M5 |
| Conv.thermal current | Ithe/4A | Conductor cross-sections | 0.5...1.5mm |
| Rated operational voltage | Ue / 230V AC;200V DC | Protection type | IP20 |
| Rated operational current | Le /2A | Approvals | CE&3C |
| Product choice | SN-HX010/A:161 | ||
Dimension(mm)
Installation picture
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
