Similar products of wire mesh trolley
(Available in 2, 3, or 4 sided in filled with steel rods and support rods)
| Similar design, different sizes | |||||
| Model No. | Exterior Dimension | Tube Diameter | Wire Diameter | Loading Capacity | Loaded in 1x40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| HML-BY07 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 300 | 450 |
| HML-BY08 | 734x854x1680 | Φ19&25x2 | Φ10&Φ 6 | 500 | 320 |
| HML-BY09 | 734x854x1680 | Φ19&25x2 | Φ10&Φ 6 | 500 | 320 |
| HML-BY10 | 734x854x1680 | Φ19&25x2 | Φ3 | 500 | 320 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, supermarket, etc. | ||||
| Finish | Zinc/hot dip galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Product features | 1.Fold and nest for storage 2.Smooth running nylon,pp castors with roll bearings 3.Strong reinforced design 4.Available with 2,3 or 4 sides and optional washed | ||||

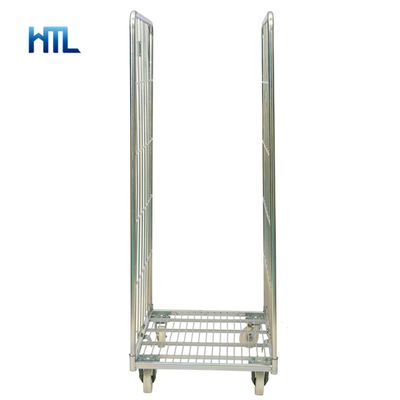

HML transport durable folding pallet wire mesh trolley roll container
Four sided nesting "A" frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit
Application of durable wire mesh trolley roll container
(can be used for logistic transport, supermarket, warehouse, laundry, etc.)
Steel storage roll container and wheels are packed seperately
Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with Standard forklift truck or pallet jack
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A. Electrol galvanized/Zinc plated: The zinc serves as a sacrificial anode( indoor storage)
B. Hot DIP galvanized: It forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C. Powder coating: A type of coating that is applied as a free-flowing, Dry powder(indoor/outdoor storage)
5, What is the loading capacity
In general, we have light duty(100~300kg) model, medium duty(400~800kg) model
And heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack, wire container and roll cage are all widely used in cold storage
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls Understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b)Loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1X20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive
Chemical material (for zinc plated and powder coated products, no limitation for hot DIP galvanized)
