Specification of collapsible wire mesh containers
| Model No. | Exterior Dimension | Wire Guage | Grid Size | Loading Capacity | Loaded in 1x40'GP |
| LxWxH(mm) | mm | mm | kg | sets | |
| HML-W1 | 1030x840x850 | 6 | 50x50 | 1300 | 470 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot dip galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Main features | 1.Collapsible-save space when not in use,ideal for return journeys | ||||
| 2.Standard half-hinged gate access | |||||
| 3.Long lasting,economical alternative to disposable packing | |||||
| 4.Open wire mesh design allows for full visibility for inventory checks, | |||||
| ventilation and cleaness. | |||||
Welded galvanised industrial stackable collapsible storage strong wire mesh
containers
Square-stack leg - secure stacking; Half fold-down gate - easy access; Connected by helix

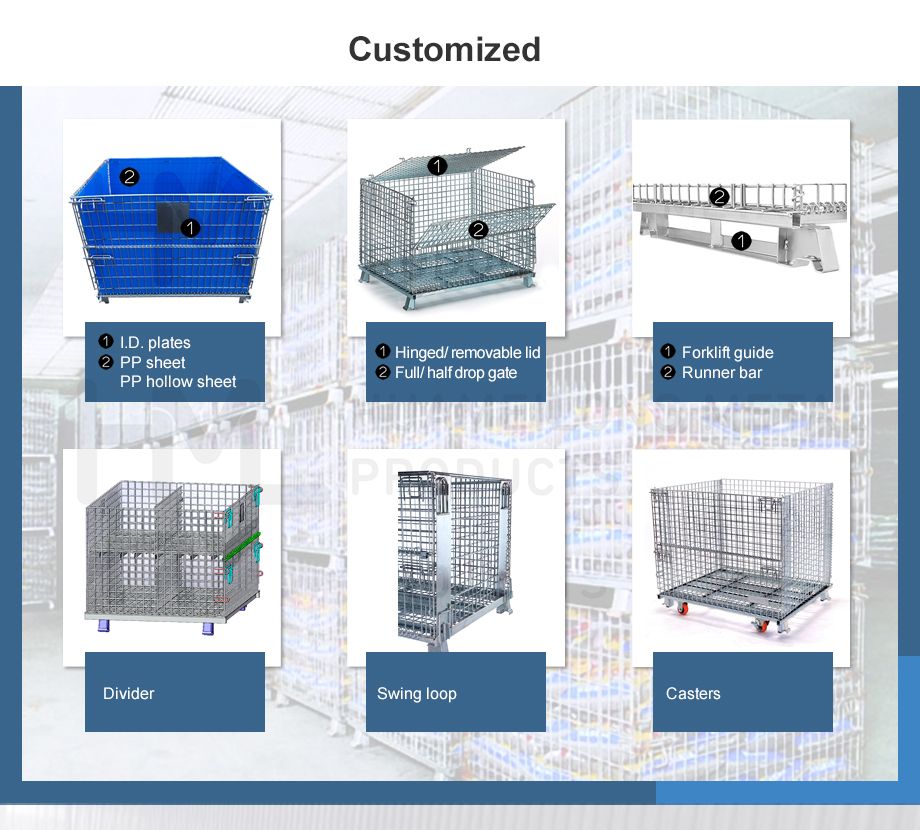

Details and available designs of stackable wire mesh containers
Application, packaging & loading of industrial wire mesh containers
FAQ1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive
chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
