Feet Height
100mm
Scale
Medium Duty
Wire diameter
6.2
Welding
Full Welding
Transport Package
Tray or as Your Request
Specification
1030*2500, 1230*2500, 1530*2500 or as Your Request
Origin
Hebei, China
HS Code
7314490000
Production Capacity
200pieces/Day
Type:
Foldable Storage Cage
Size:
1000mm*800mm
Load Capacity:
1000kg
Folded:
Folded
Mesh Spacing:
50mm×50mm
Wire Diameter:
3.0-6.0mm
Product Description

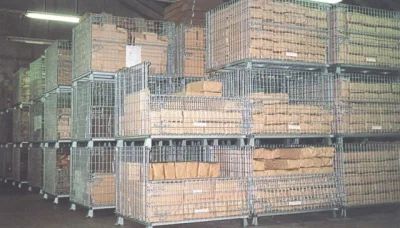

Storage cages are also called storage cages and butterfly cages. They are very important types of logistics containers in storage and transportation. They have the advantages of fixed storage capacity, neat stacking, clear storage, and convenient inventory checking. . The storage cage can be folded freely, and can also be folded and stored when not in use, saving storage space.
Wire Mesh Container
1.They are a type of popular industrial containers, they have the functions of pallet and cage.
2. They are widely used for bulk materials handling, transportation and storage, especially for automotive parts, accessories and spare parts, hardware,machinery, electronics etc.
3.Be made of dot welded line steel 6.0 with the bottom part of U shape steel weld support to reach the enforcement of the structure.
4.Stack up to three cages high easily.
5.Half drop front gate, allows easy access into cage even when stacked.
6.Standard size, or customized sizes available.
7.Galvanised for longlife.
8.each shelves holds up to 500-1000kg.
The storage cage specifications for your reference:
| Storage Cage Size (length/width/height) (mm) | Wire Diameter (mm) | Mesh Size (mm) | Weight (kg) | Quantity (40'HQ) (pcs) | Surface |
| 1200*1000*890 | 5.8 | 50*50 | 55kg/pc | 400 | hot dipped galvanized powder coated |
| 1200*1000*890 | 5.6 | 50*50 | 52.5kg/pc | 400 | |
| 1200*1000*890 | 5.3 | 50*50 | 48.5kg/pc | 400 | |
| 1000*800*840 | 5.8 | 50*50 | 41kg/pc | 550 | |
| 1000*800*840 | 5.6 | 50*50 | 39kg/pc | 550 | |
| 1000*800*840 | 5.3 | 50*50 | 37kg/pc | 550 |
The main components of the storage cage are mesh manufacturing and chassis manufacturing.
The mesh is cut into various lengths, and it is made into a semi-finished mesh by the welding machine.
The mesh is mostly galvanized and plastic sprayed, and the anti-rust galvanization is better than plastic spraying.
Wire diameter is an important parameter for carrying.The chassis is processed by a raw material sheet through
a bending machine. The sheet is usually 1.8 and 2.5, and then cut and manually welded into channel steel.
