Model NO.
SN-GM2-Z09192P
Speed
1.00-2.00m/s
Drive Mode
Manual
Control Type
Microcomputer Frequency Control
Lift Mechanism
Telescoping Lift
Use of Occasions
Public Traffic
Guide Rail
Hollow Guide
Ce
CCC
Used
Elevator Parts
Model
Elevator Light Curtain
Transport Package
Round Box
Specification
CE CCC UL
Trademark
Shanghai Sunny
Origin
Shanghai China
Production Capacity
10000set/Month
Elevator photocell: SN-GM2-Z/09192P
Specifications
Elevator light curtain
UL, CE, CCC certification!
Real 64 pairs diodes and 192 beams!
More than "can use" quality!
Elevator light curtain
UL, CE, CCC certification!
Real 64 pairs diodes and 192 beams!
More than "can use" quality!
Elevator parts: Elevator light curtain
8 channels, National patent items.
192 criss-cross beams, 64 diodes
Quick response
Chinese manufacturer
UL, CE, CCC safety certificate.

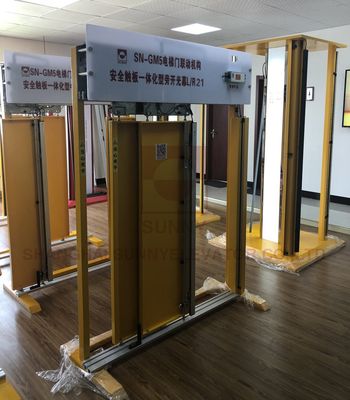

Our factory
About us
Specifications
Elevator light curtain
UL, CE, CCC certification!
Real 64 pairs diodes and 192 beams!
More than "can use" quality!
Elevator light curtain
UL, CE, CCC certification!
Real 64 pairs diodes and 192 beams!
More than "can use" quality!
Elevator parts: Elevator light curtain
8 channels, National patent items.
192 criss-cross beams, 64 diodes
Quick response
Chinese manufacturer
UL, CE, CCC safety certificate.
| Model | ||||
| 192P (V) | 320PG (V) | 384P (V) | 640PG (V) | ||
| No. of diodes | 64 | 64 | 128 | 128 | |
| Max. beams | 192 | 320 | 384 | 640 | |
| Min. beams | 192 | 192 | 384 | 384 | |
| Distance between Two Diodes | emitter/ receiver 42/ 55 mm | emitter/ receiver 13/ 27 mm | |||
| Size | 1980 height x 30 width x 9/16/35 thickness mm Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available | ||||
| Light curtain Detecting Distance | 0~4.5 meters Customized to reach 20 meter | ||||
| Light-proof | can work under the sunlight ≥100,000 lux | ||||
| Installation Tolerance | Vertical ≤±20mm, horizontal ≤± 10mm, angle ≤±7° | ||||
| Working Temperature | -25°C~+65°C | ||||
| IP | Ip33 circuit strip Ip63 controller box | ||||
| Response Time | ≤80 ms | ||||
| Cable Strength | 3C, 4.5M*2, 1 million times of life | ||||
| EMC | En61000 GB/T17626 | ||||
| Timeout Response | 25±5s Buzzer rouse | ||||
| Power | ≤7.5 VA | ||||
| Voltage Range | 85~264VAC 60/50Hz | ||||
Our factory
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience for exporting all kinds of elevator & elevator parts to 80 countries all over the world.
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience for exporting all kinds of elevator & elevator parts to 80 countries all over the world.
