Model NO.
JSX2020L
Experice
10 Years
Producing Period
>20 Days
Frame Size
20ft
Life Span
<25 Years
Color
Customized
Loading Capacity
24000L
Maximum Gross Weight
24000 Kg
Wave Protection Wattle
3PCS
Tare
4350 Kg
Manhole
Dia. 20inch Seal Plastic-Lined Steel Tank Cover
Frame Material
Q345b Square Steel Tube
Compartment
Single Compartment
Max. Payload (Kg)
22568
Hydro.Test Pressure(MPa)
2.18
Leakage Test Pressure(MPa)
1.38
Walkway on The Top
Anti-Skid Net Spread on Both Side
Strengthen Ribbers
Both Sides and Ends.
Shell Material
Shell Mild Steel Q345b, 5.0mm Shell
Transport Package
by Container Vessel for This Tanker Container
Specification
6058*2438*2591/mm carbon steel tanker
Trademark
JUSHIXIN
Origin
Mainland of China
HS Code
8609001200
Production Capacity
50units/Month
Type:
Tank Container
Certification:
ISO9001, CSC, CE/EU, ECE, CE
Volume:
5.89M * 2.32M * 2.31M
Material:
Carbon Steel
Length:
40′
Gross Weight:
17.5T

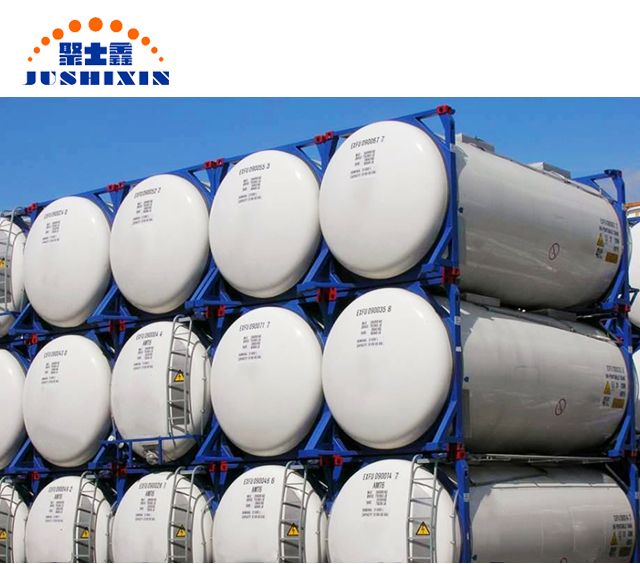

ASME Standard T11 ISO Tank Container 20ft
1.Production Describtion
Our container has a corner bearing frame with protection and suspension around the tank.The external frame size of the tank is completely equivalent to the size of the international standard 20 'container (20 feet long and 8 feet wide: 8 feet, 6 inches).It can be used for road, rail and water transportation.
Advantage
1. Economic benefits
2. Speedy
3. Increase security
4. More conducive to environmental protection; More beautiful
2.Related Specification
3.Detailed Photos
4.Factory Workshop
5.More Styles
6.Certifications
7.Our Company
8.Our Service
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service
4.we have strong professional design team
5. promptly delivery. small order is welcome
9.FAQ
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of classification like ABC,CCS,GL,BV and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container, LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:normally is about 25days,and it depends on your quantity
Contact information
1.Production Describtion
Our container has a corner bearing frame with protection and suspension around the tank.The external frame size of the tank is completely equivalent to the size of the international standard 20 'container (20 feet long and 8 feet wide: 8 feet, 6 inches).It can be used for road, rail and water transportation.
Advantage
1. Economic benefits
2. Speedy
3. Increase security
4. More conducive to environmental protection; More beautiful
2.Related Specification
| 20ft T11 ISO Tank Container | ||
| External Dimension | 6058 x 2438 x 2591 mm | |
| Tare Weight | 3510 kg (± 3%) | |
| M. G. W | 36000 kgs | |
| Nominal Capacity | 25000 litre (±0.75%) | |
| Design Temperature | -40 to +130 °C | |
| Pressure | Working | 4.0 bar |
| Test | 6.0 bar | |
| Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C<0.03%) |
| Frame | SPA-H or equivalent | |
| Insulation | Shell | Rockwool (50kg/m3) 50mm thick on aluminium foil. |
| Ends | Glasswool (16kg/m3) thickness to suit on aluminium foil. | |
| Design Code | ASME VIII DIV. 1 | |
| Approval | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3 | |
3.Detailed Photos
4.Factory Workshop
5.More Styles
6.Certifications
7.Our Company
8.Our Service
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service
4.we have strong professional design team
5. promptly delivery. small order is welcome
9.FAQ
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of classification like ABC,CCS,GL,BV and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container, LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:normally is about 25days,and it depends on your quantity
Contact information
