Model NO.
KPX
Running Distance
Unlimited
Power Supply
Battery
Material
Q235
Product Name
Customized Material Handling Turning Rail Car
Size
Customized
Transport Package
According to The Customers′ Demands
Specification
GB/T6127-92
Trademark
BEFANBY
Origin
Xinxiang, Henan, China
HS Code
8428909090
Production Capacity
100 Sets/Month
Color:
Gray, Blue, Red, Yellow, Customized
Warranty:
2 Years
Certificate:
ISO9001,SGS,CE
Load Capacity(T):
1-1500t
Application:
Industrial Field
Running Speed:
0-20m/Min

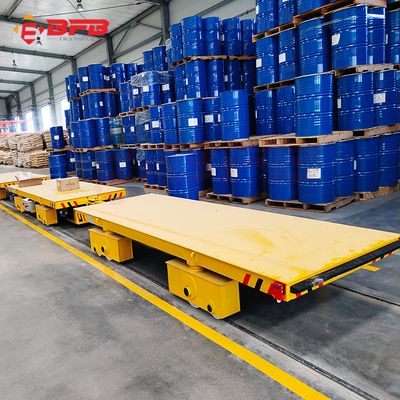

Customized Material Handling Turning Rail Car
1. Product Details
2. Working principle---Customized Material Handling Turning Rail Car
3. Application Show---- Customized Material Handling Turning Rail Car
4. Advantages Show---- Customized Material Handling Turning Rail Car
· Safe and environment friendly
· Big starting power
· Small impact to the gear reducer
· No restriction of the running distance
· Can running on s-shape rail, arc-shape rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime
. The largest capacity can be reach to 1500T.
5. Parameter List----Customized Material Handling Turning Rail Car
6. Processing with strict quality control
7. About BEFANBY Company
8. How to choose the suitable transfer car?
All of our rail transfer car all customized as client's requirement, for choose the most suitable handling trolley,please
kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground(floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
. How many hours does the transfer car work one day?
1. Product Details
 | Customized Material Handling Turning Rail Car is one of our common and mature product, which is customized as per customers' true demand. Such as power supply, operation system, control system, track or no track, steerable, wheelstype, cart frame structure and so on, and then provide proper solution to you. |
 |  |
2. Working principle---Customized Material Handling Turning Rail Car
This kind of rail transfer car is powered by battery, The battery is installed in the car, and supply DC electricity to the control system, which makes the car start, stop, go forward, back forward and so on.It is consist of battery, motor, reducer, cart frame, electric appliance, etc. |
3. Application Show---- Customized Material Handling Turning Rail Car
The rail transfer car can be used in many occasions, due to its simple structure, despite of the plant or assembly line, warehouse or port for heavy equipment, industry material, mold... only exists tracks, and the battery is charged fully,it can transport anywhere. Case showing: A: Mould & Material Transfer Car : This is BEFANBY' most popular flat car. It is used to move moulds or materials between the pressroom and the die storage and maintenance area. This transfer car has the advantage of moving the entire length of the manufacturing facility, while moulds that are moved by cranes are limited to the distance of the crane travel. B: Coil & Specialized Material Transfer Car: This car is similar in construction to our muold transfer car but is ultimately designed with fixtures to accommodate the customers exact needs. Designed to transport material from the storage bay to operations, eliminating the use of cranes and fork lifts, therefore reducing the risk of damage to the coils. C: Work in Progress Line Transfer Car: This type of car is ideal for moving excessively large items from one process center to another primarily used in heavy equipment industries. Other industries that benefit from this cart design are agricultural, wind turbine, and defense to name a few. |
 |
4. Advantages Show---- Customized Material Handling Turning Rail Car
· Safe and environment friendly
· Big starting power
· Small impact to the gear reducer
· No restriction of the running distance
· Can running on s-shape rail, arc-shape rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime
. The largest capacity can be reach to 1500T.
 |  |
5. Parameter List----Customized Material Handling Turning Rail Car
| Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф350 | Ф400 | Ф500 | Ф600 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
| Remark | The technical parameter of the material handling equipment only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time. | |||||||
6. Processing with strict quality control
7. About BEFANBY Company
8. How to choose the suitable transfer car?
All of our rail transfer car all customized as client's requirement, for choose the most suitable handling trolley,please
kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground(floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
. How many hours does the transfer car work one day?
