Model NO.
WT0706302
Certificate
CCS, Gl, Dnv, BV, ABS, Rina, Kr, RS etc
Stype
Single/Double/Cross Type
Size
as Per Request
Color
as Per Your Requirement
Dia
44-132mm
Processing
Casting, Forging, Welding
Transport Package
Export Standard Packing or as Required
Specification
As per request
Trademark
WEITONG MARINE/OEM
Origin
China
HS Code
73269090
Production Capacity
10000/Piece/Per Year
Application:
Boat, Yacht
Standard:
DIN, ISO, JIS, EU, DIN
Customized:
Customized
Surface Treatment:
Polished/ Galvanized
Material:
Stainless Steel
Type:
Chain Stopper

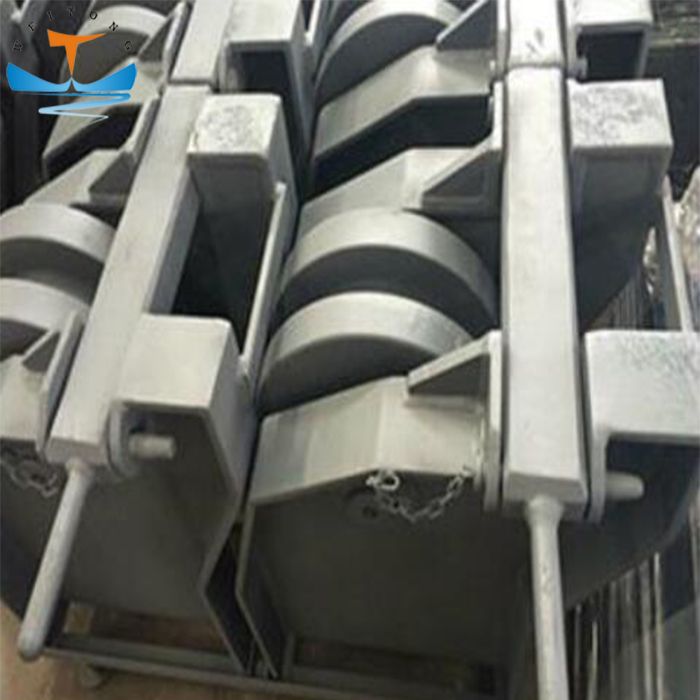

Stainless Steel Roller Blind Type Marine Anchor Chain Stopper for Ship
Marine Roller Lever Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Material: cast steel
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate: ABS,CCS,DNV,LR,KR etc.
Specification
We offer kinds of Chain stopper and Towing Bracket as below:
JIS F2002-1976 cast iron Bar Type Chain Stopper
JIS F2015-1987 Cast Steel Bar Type Chain Stopper
JIS F2023-1976 Cast Steel Bar Type Chain Stopper
JIS F-2031 Pawl Type Chain Stopper
JIS F-2032 Roller Pawl Type Chain Stopper
JIS F-2033 Roller Bar Type Chain Stoppertype B
OCIMF Type single point mooring Chain Stopper
CB286-84 cast steel lever chain stopper
GB/T 3844-2000 Marine roller lever chain stopper
GB/T 178-96 spiral type chain stopper/ screw type chain stopper
Smith towing bracket for chain stopper
OCIMF Type Towing Bracket
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any question or inquiry, please feel free to contact us for more details.
Ms Kate
Website: findtextile.com/store/weitongmarine
Certificate:
Workshop:
Marine Roller Lever Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Material: cast steel
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate: ABS,CCS,DNV,LR,KR etc.
Specification
| Nominal Dia.(mm) | Anchor Chain Dia.(mm) | L(mm) | L1(mm) | D(mm) | H1(mm) | H2(mm) | B(mm) | Weight(kg) |
| 44 | 4244 | 1000 | 370 | 484 | 392 | 281 | 380 | 343 |
| 48 | 4648 | 1050 | 420 | 528 | 414 | 306 | 446 | 390 |
| 52 | 5052 | 1100 | 440 | 572 | 440 | 338 | 510 | 480 |
| 56 | 5456 | 1150 | 450 | 600 | 460 | 354 | 556 | 608 |
| 60 | 5860 | 1200 | 470 | 620 | 490 | 378 | 610 | 739 |
| 64 | 6264 | 1250 | 500 | 640 | 520 | 400 | 666 | 811 |
| 68 | 6668 | 1300 | 550 | 680 | 540 | 420 | 732 | 1061 |
| 73 | 7073 | 1350 | 570 | 730 | 580 | 460 | 800 | 1229 |
| 78 | 7678 | 1400 | 610 | 780 | 630 | 490 | 865 | 1494 |
| 84 | 8184 | 1460 | 650 | 840 | 670 | 530 | 940 | 1758 |
| 90 | 8790 | 1540 | 710 | 900 | 720 | 570 | 1030 | 2171 |
| 95 | 9295 | 1600 | 740 | 950 | 760 | 610 | 1080 | 2567 |
| 102 | 97102 | 1680 | 790 | 1020 | 800 | 650 | 1150 | 2755 |
| 107 | 105107 | 1750 | 840 | 1070 | 860 | 690 | 1210 | 3640 |
| 114 | 111114 | 1820 | 880 | 1140 | 910 | 740 | 1270 | 4302 |
| 122 | 117122 | 1880 | 930 | 1220 | 980 | 790 | 1340 | 5326 |
| 132 | 124132 | 1960 | 1000 | 1320 | 1060 | 860 | 1440 | 6244 |
We offer kinds of Chain stopper and Towing Bracket as below:
JIS F2002-1976 cast iron Bar Type Chain Stopper
JIS F2015-1987 Cast Steel Bar Type Chain Stopper
JIS F2023-1976 Cast Steel Bar Type Chain Stopper
JIS F-2031 Pawl Type Chain Stopper
JIS F-2032 Roller Pawl Type Chain Stopper
JIS F-2033 Roller Bar Type Chain Stoppertype B
OCIMF Type single point mooring Chain Stopper
CB286-84 cast steel lever chain stopper
GB/T 3844-2000 Marine roller lever chain stopper
GB/T 178-96 spiral type chain stopper/ screw type chain stopper
Smith towing bracket for chain stopper
OCIMF Type Towing Bracket
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any question or inquiry, please feel free to contact us for more details.
