Model NO.
JF15
Type
Hook
Transport Package
Wooden Case
Specification
25-1000Kn
HS Code
83023000
Production Capacity
10000 Pieces/Year
Warranty:
12 Months
Application:
Boat, Yacht, Ship
Standard:
GB, ISO
Customized:
Customized
Surface Treatment:
Baking Paint
Material:
Steel
Marine Manual Fast Release Springless Towing Hook
Introduction:
The marine spring quick release tow hook enables the vessel to be safely towed under harsh working conditions and allows the towing line to be released under slack or completely safe working loads. The towing hook has a quick release mechanism, which is convenient for the towing cable to be separated instantly, ensuring the safety of the tug and the personnel. The hook can be released manually, or it can be released from the wheel cover by pulling the release line or pressing a button. The remote control system can be equipped with hydraulic or pneumatic release mechanism
Range of Tow Hook:
Disc Tow Hook
Spring Tow Hook
Springless Tow Hook
Boat Manual Tow Hook
Marine Tow Hook
Ship Spring Tow Hook
Vessel Hydraulic Release Tow Hook
Yacht Quick Release Pneumatic Tow Hook

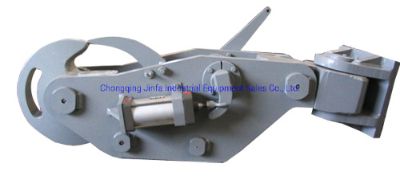

Sample Tow Hook Pictures:
Note: We accept the customized tow hook according to your project's drawing, products support CCS certificate request.
Introduction:
The marine spring quick release tow hook enables the vessel to be safely towed under harsh working conditions and allows the towing line to be released under slack or completely safe working loads. The towing hook has a quick release mechanism, which is convenient for the towing cable to be separated instantly, ensuring the safety of the tug and the personnel. The hook can be released manually, or it can be released from the wheel cover by pulling the release line or pressing a button. The remote control system can be equipped with hydraulic or pneumatic release mechanism
Range of Tow Hook:
Disc Tow Hook
Spring Tow Hook
Springless Tow Hook
Boat Manual Tow Hook
Marine Tow Hook
Ship Spring Tow Hook
Vessel Hydraulic Release Tow Hook
Yacht Quick Release Pneumatic Tow Hook
Sample Tow Hook Pictures:
Specification:
| TYPE | SWL(t) | H | L | B | Φ | R |
| JF15 | 15 | 240 | 1380 | 134 | 85 | 880 |
| JF20 | 20 | 255 | 1520 | 144 | 85 | 920 |
| JF30 | 30 | 265 | 1680 | 152 | 95 | 940 |
| JF40 | 40 | 280 | 1860 | 200 | 105 | 1050 |
| JF50 | 50 | 285 | 1920 | 204 | 110 | 1100 |
| JF60 | 60 | 290 | 1960 | 204 | 110 | 1150 |
| JF80 | 80 | 340 | 2100 | 210 | 130 | 1310 |
| JF100 | 100 | 380 | 2300 | 220 | 150 | 1430 |
Note: We accept the customized tow hook according to your project's drawing, products support CCS certificate request.
