Model NO.
JG80L
Engine Model
Yuchai
Rated Power
48~62.5kw
Capacity of The Fuel Tank
110L
Transport Package
Nude Packing
Specification
6100*2800*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
After-sales Service:
Supported
Warranty:
1 Year
Customized:
Customized
Certification:
ISO9001
Type:
Railway Tamping
Angle of Rotation:
360 Degree

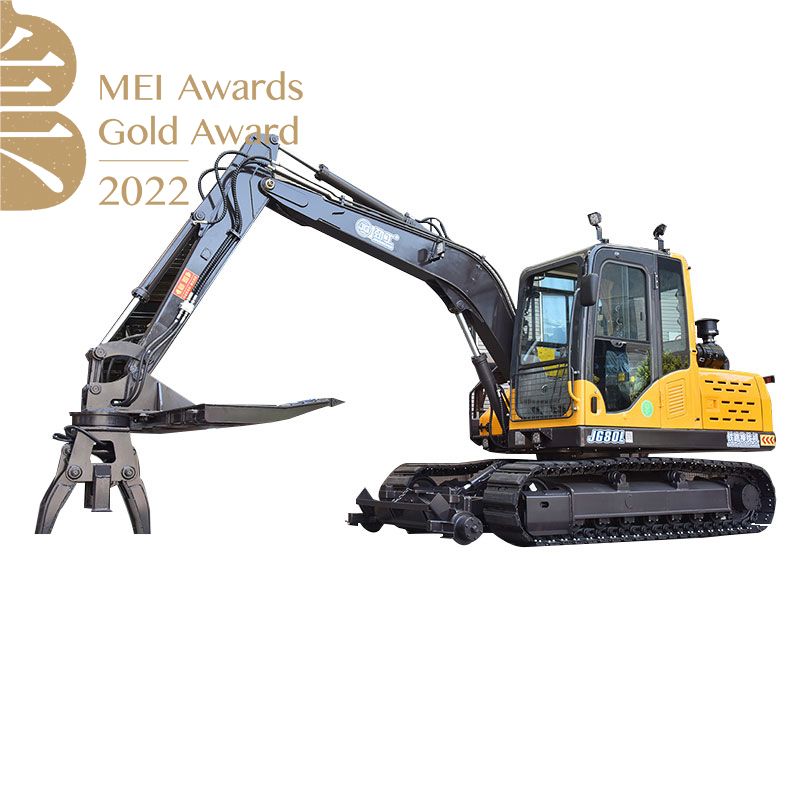

JG80L Railway Sleeper Changer Machine
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maimum digging force | 45KN | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| BALLAST TAMPING ATTACHMENT | Vibration frequency | 35HZ~63HZ | ||||||||
| Exciting force | ≥21KN | |||||||||
| The maximum insertion depth of the pick body (the bottom of the concrete sleeper) | ≥90mm | |||||||||
| Angle of rotation | 45° | |||||||||
| Working efficiency | 55-60pcs sleepers /H | |||||||||
| DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
| Roller gauge | 2600mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8100kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 48~62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
