Model NO.
Dia. 16mm clip
Application
Railway Fastening System
Surface Finishing
Plain (Oiled), Oxide Black, Color Painting
Weight
0.65kg
Part
Rail Clip
Color
Plain, Paint
Transport Package
Woven Bag, Pallet
Specification
SGS, CRCC
Trademark
ZB
Origin
China(Mainland)
Production Capacity
1500tons Per Month
Certification:
AREMA, BS, ASTM, UIC, TB
Type:
Track Train
Hardness:
HRC 42-47
Standards:
BS970, GB/ T 1222 and DIN17221
Toe Load:
500-700 Kgf
Dia:
16mm, 18mm, 20mm
Product detials
Name | Clip-E2055 Railway Fasteners System for Subway | |||
Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness
| HRC 42-47 | |||
Fatigue life
|
5 millions cycles without breaking
| |||
Surface
| Plain (oiled), Oxide black, color painting | |||
Standard refers |
GB/T 1222,DIN 17221 | |||
We produce and supply W14 rail clips according to DIN and GB standard.We source certificated steel manufactuer by CRCC.
We produce the clips with bar size 13mm, 14mm and 15mm.
The testing items including fatigue life, clamping force, hardness, electronic resistance.
This type of fastening are used for UIC54, UIC60, P43, P50, R65, 115RE, 136RE rail tracks, they can also be used crane rail fastening.
If you need further information about this fastening, please contact our sales people.
Zhongbo Railway Fastening Company is a leading Chinese manufacturer of rail fastening and rail joint bar.
Zhongbo, as a specialized rail fastener manufacturer, provides a complete line of products, including rail fastening, anchor, rail joint, rail clip, rail screw, anchor bolt, rail clamp plate, rail fishplate, and fishplate bolt for connecting rail tracks.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products.We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

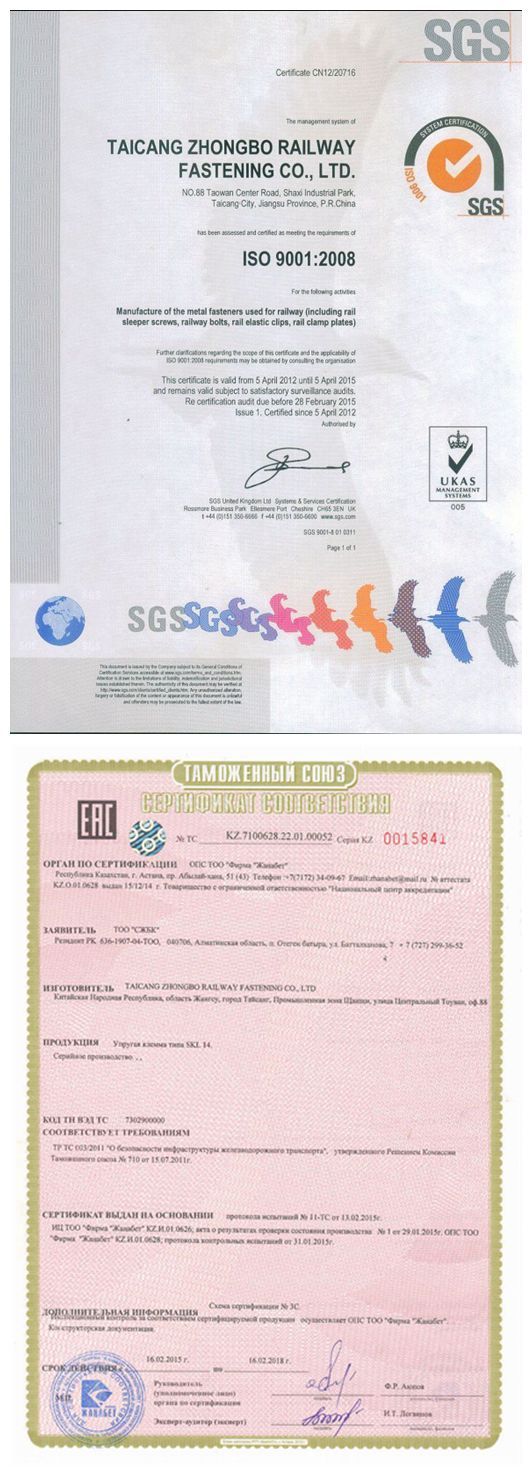

Certificate
