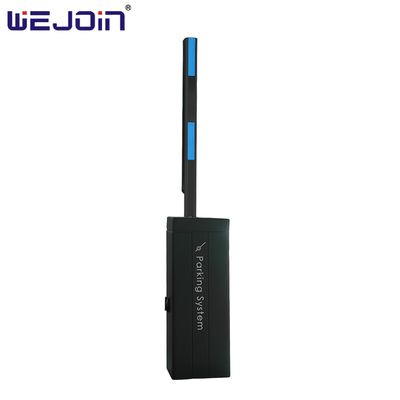

WEJOIN DC24V Variable-Frequency Barrier Gate WJDZ04VF
Higher Stability, Longer Sercive Life and Easier Operation
Functions & Features
1). Self-developed DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2). DC variable-frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
3). Auto-reversing on obstruction, sensitive, responsive, safe and reliable.
4). Large LCD screen display control panel, English visual menu, simple maintenance and easy operation.
5). 433MHZ, simple to add remote controllers.
6). Turn the handwheel or lift the boom manually to realize the boom up and down when power-off, and it can also be powered by a DC24V battery. Or open one time by a super capacitor backup.
7). Support motorcade passing, counting, auto-aging test, delay auto-closing, relay signal output, RS485 Communication.
8). Loop Detector, Infrared Photocell, Radar are optional.
9). 24 months warranty period for motor and control board.
Technical Data
| Model | WJDZ04VF (speed 1.5~6S adjustable) | ||||
| Running Speed | 1.5~6 S | 6 S | 6 S | 6 S | 6 S |
| Boom Type | Straight | 90º Folding | 180º Folding | 2 Fence | 3 Fence |
| Max Boom Length | 3M~6M | 5M | 4M | 4.5M | 4M |
| Cabinet Dimension (W*D*H) | 336*325*1030MM, 335*285*920MM | ||||
| Power Supply Input Voltage | AC220V±10%, AC110V±10% | ||||
| Motor Voltage | DC24V | ||||
| Enclosure Rating | IP54 | ||||
| Working Temperature | -35ºC~ + 70ºC | ||||
| MTBF | 4,000,000 times | ||||
| Duty Cycle | 100% | ||||
| Traffic Flow Application | 3000 times/ 24 hours | ||||
| Max Motor Power | 150W | ||||
| Max Motor Speed | 24r/min | ||||
| Max Torque | 240N.m | ||||
