HOWO 6x4 30-50 Tons RHD/LHD Brand New Dump Trucks
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, and spare parts for them.
1. Dump Truck Main Specifications:
Truck Model | ZZ3257M3647W, Right Hand Drive model | ||
Truck Brand | SINOTRUK -HOWO | ||
Dimension(Lx W xH) | 8145x2496x3386 | ||
Cargo body size (L*W*H, mm) | 5400x2300x1400 | ||
Cargo body thickness(mm) | bottom:8mm, side:6mm, or customized as you required | ||
Lift type of Carriage | Ventral lifting | ||
Approaching angle/Departure angle(°) | 19/26 | ||
Overhang(front/rear) (mm) | 1500/1739 | ||
Wheel base (mm) | 3625+1350 | ||
Max speed(km/h) | 75 | ||
Curb weight(kg) | 11290 | ||
Loading Weight(kg) | 25000 | ||
Fuel Tanker | 300L with locking fuel cap | ||
Fuel consumption(L/100km) | 32 | ||
Clutch | Single-plate dry clutch Φ430mm | ||
Engine | Model | WD615.87,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , | |
Horse Power, | 290HP | ||
Emission Standard | EURO II | ||
Transmission | Model | HW 19710,10 forwards and 2 reverse | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Auxiliary brake | Engine exhaust brake | ||
Steering system | Model | ZF8098/ZF8118 hydraulic steering with power assistance | |
Front axle | HF9 | ||
Rear axle | HC16 | ||
Tire | 12.00R20 | ||
Electrical system | Operating voltage | 24V,negative grounded | |
Starter | 24V,7.35KW | ||
Alternator | 28V,1500W | ||
Batteries | 2*12V.165Ah | ||

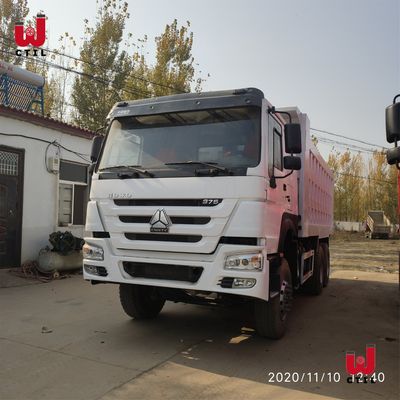

2. Used HOWO Dump Truck Photos
3. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO
5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6. Main Products
7. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
8. Company information
QINGTE GROUP SPECIAL VEHICLES is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
We have more than 20 years of experience in exporting trucks. If you want to buy any truck, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
