Sinotruk HOWO 6 wheels RHD 8000L 4Tons 4MT mobile LPG Cylinder filling dispenser tank truck LPG bobtail
Product Description for Sinotruk HOWO 4x2 6 wheels 4 Tons 4MT 4Tons 8000L LPG bobtail truck LPG Gas Tanker
Truck for Gas cylinder filling
1) Truck Brand of LPG bobtail Truck : Howo,optional for dongfeng,faw, foton and other brands
2) Tank Size of LPG bobtail Truck : 20,000liters,20000L,20cbm,24000liters 24000L,24cbm,15000 Liters,15000L,15cbm,
3) Function of LPG bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4) Refiling System of LPG bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec of LPG bobtail Truck : wechai Engine 290HP, HW19710 Gearbox 10 Forward & 2 Revers, 12R22.5 Tires
Specifications of dongfeng 5000liters mobile LPG Cylinder filling dispenser tank truck LPG bobtail
| Item No. | Parameters |
| Cabin | Single row,left hand drive |
| Overall Dimension | 5900x2045x2600 mm |
| Gross Vehicle Weight | 6495kg |
| Curb Weight | 3050kg |
| Payload | 3445kg |
| Wheel Base | 3300 mm |
| Engine | Chaochai engine, 4 in-line cylinder |
| Engine horsepower | CY4102-C3F,95 HP EUROIII |
| Displacement | 3856mL (Diesel) |
| Max Driving Speed | 80 km/h |
| Tire | 7.00-16,7pcs |
| LPG tank | |
| Volume: | 5cbm |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| Tank length: | 3059mm |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Filling parts | |
| Pump | 1 |
| Dispenser | Jinda brand,computer controlled |
| Pipeline | 15m |
| Filling gun | Suitable for filling cylinders.You can change gun as per local condition |
| Accessory | |
| Manhole | 1 |
| Safety Valve | 1 |
| Tool Box | 1 |
| Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Anti-static Tape | 1 |
| Paint | As required |
| Standard | |
| Pressure vessels, Supervision Regulation on Safety Technology for Pressure Vessels | |

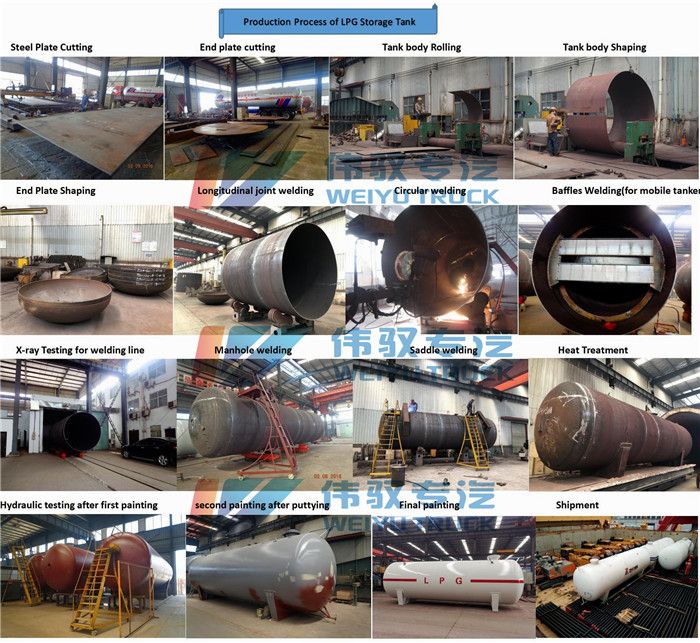

Reference picture of Sinotruk HOWO 4x2 6 wheels 4 Tons 4MT 4Tons 8000L LPG bobtail truck LPG Gas Tanker Truck
for Gas cylinder filling
