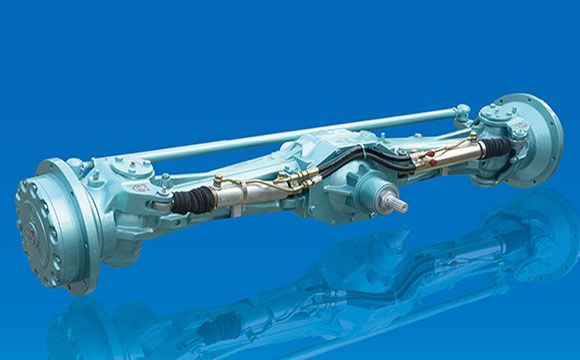

- The centrally positioned transmission shaft and swing-type central swing pin.
- The inner structure includes central reducer,transmission differential.constant velocity joint,and end planetary reducer,ect. The external structure of six square cross section,integral-type axle housing.
- Adopted independent oil-way,front-wheel steering under hydraulic pressure,the steering angle can reach 50°.
- With good rigidity,light weight and seismic performance advantages.
| Model No. | QATD1004 | |
| Maximum input torque | 456N.m | |
| Transmission ration | 16.125 | |
| Front-wheel positioning | Front-wheel camber angle | 1° |
| Kingpin inclination angle | 7°30" | |
| Kingpin caster angle | 10° | |
| Toe-in of front wheel | 0-5mm | |
| Steering type | Independent oil-way,front-Wheel steering solely under hydraulic pressure | |
| Oscillation angle of front axle | 11°(Each side) | |
| Maximum steering angle of front wheel | 50°, Able to reach 45°,40° through adjustment | |
| Diameter of steering oil cylinder | Ф48 | |
| Stroke of steering oil cylinder | 200mm | |
| Maximum allowable pressure for steering cylinder | 16MPa | |
| Maximum load-carrying capacity | 3000Kg | |
| Number of steering oil cylinder | 2 | |
| Spline parameters | Z=14,m=2,a=30° | |
