Model NO.
LEDT5047DF
Passenger Number
2
Fuel Type
Diesel Oil
LED Tube Core Type
IV
Self-powered
Self-powered
LED Screen Type
PH10
Power Supply Mode
Own Generator-powered
Chassis Brand
Dongfeng(Isuzu,FAW,JAC or Others)
Diesel Generator
15kw Ouma Generator
Transport Package
Bulk Ship or Roro
Specification
6000*2030*3050 mm
Trademark
MANTEN
Origin
China
HS Code
8701909000
Production Capacity
10000 Units Per Year
After-sales Service:
24 Hours Online
Warranty:
1 Year
Type:
LED Advertising Truck
Application:
Outdoor Activity
Displacement:
3.7L
Intergrant:
Large Screen System
Shining Flashing Outdoor Use P6 P8 P10 Big Led Display Board Truck Led Display Message Moving Truck
» I.PRODUCT DESCRIPTION
» II.APPLICATION
» IV.WORKSHOP OVIEW
» V.COMPANY INTRODUCE
» I.PRODUCT DESCRIPTION
» II.APPLICATION
1. Lightweight, easy to install and convenient to transport, saving labor cost,suitable for flow shows.
2. SMD 3-in-1 LED encapsulation confirm the wide viewing angle,seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings
6. Can be set to open and close the screen automatically
7. Highly adaptable to various environment, waterproof and shock resistant
8. High brightness, within the view distance, the displaying contents are still clear even if there is direct sunlight on the screen surface.
» III.TECHNICAL PARAMETERS
| Specification | ||
| Items | Descriptions | Specs |
| General | Truck Name | Dongfeng LED Advertising Truck |
| Drive Type | 4x2, Left hand drive or Right Hand Drive | |
| Overall Dimensions | 6000*2030*3050 mm | |
| Chassis | Chassis Brand | Dongfeng |
| Truck Cabin | single row cabin, with A/C | |
| Tire | 700R16, 6pcs + 1 spare tire | |
| Wheelbase | 3300 mm | |
| Gear Box | WLY 6TS40, 6F+1R | |
| Engine | Engine Brand | Chaoyang CY4100Q |
| Horsepower | 90HP | |
| Emission Standard | Euro 3 | |
| Type | 4 cylinders in line,water cooling, super charged ,inter-cooling,diesel engine | |
| Screen | Left Side | P6 full color screen ,3840*1728mm |
| Right Side | P6 full color screen ,3840*1728mm | |
| Rear Side | P6 full color screen ,1280*1440mm | |
| Equipments | (1)Equipped with 15kw super silent diesel generator ; (2)High-end computer console ; (3)Malata 2x60W water‐proof column loudspeaker ; (4)high power amplifier ; (5)With A/C in LED cabinet ; (6)Interior light ; (7)Front cabinet with cooling fan and shutters; (8)Pattern aluminum plate roof and high quality wood floor ; (9)2 ventilation outlet on roof ; (10)220V external power outlet, plug, power cord ; (11)Retractable step on rear door ; (12)One side of led screen can be lifted by hydraulic. Lifting height:1.5m . | |

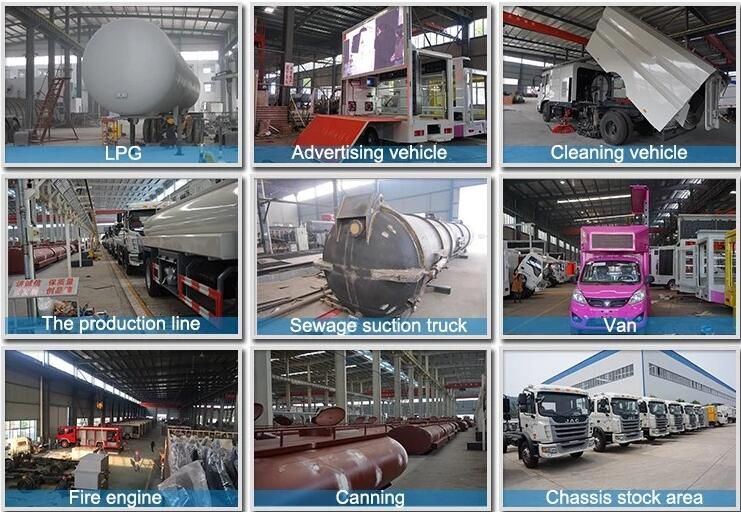

» IV.WORKSHOP OVIEW
