Model NO.
Yuzuan
Specification
1720mm*675mm*1050mm
Trademark
Zub or OEM
Origin
Zhejiang, China
HS Code
8711600090
Production Capacity
1000000sets/Year
Frame Material:
Steel
Tire Size:
10inch
Power:
501-1000W
Certification:
CCC
Voltage:
48V/60V
Transport Package:
Frame Inside+Carton Outside
Specification:
Color option:
we have painting dept of ourselves,can paint the colors as your market need.
Different views:
front view
Back view:
Side view:
45 degree view:

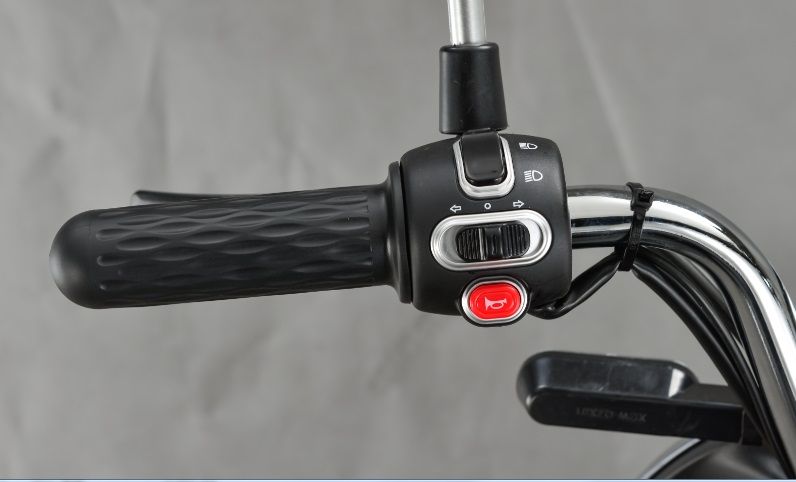

Special parts:
Packing information:
Both CKD,CBU,SKD are ok
CKD: packed by cartons,usually the same part packed together,
CBU/SKD: steel frame inside/ carton outside as following picture:
Delivery time:
20-35 days after getting the deposit.
| Size: | 1720mm*675mm*1050mm |
| Seat height: | 735mm |
| Ground clearance: | 155mm |
| Wheel base: | 1230mm |
| Vehicle weight: | 56kg(without battery) |
| Battery: | 48V/60V/72V 20Ah lead-acid battery |
| Motor: | 800W-1200W |
| Brake: | Front disc/rear drum |
| Tyre: | 3.0-10 tubeless tyre |
| Max speed: | 40-43km/h |
| Range: | 50km(48V), 60km(60V). 70km(72V) |
| Charging time: | 8-10 H |
| Battery life: | 350 times |
| Features: | LED headlight, USB,AT power |
Color option:
we have painting dept of ourselves,can paint the colors as your market need.
Different views:
front view
Back view:
Side view:
45 degree view:
Special parts:
Packing information:
Both CKD,CBU,SKD are ok
CKD: packed by cartons,usually the same part packed together,
CBU/SKD: steel frame inside/ carton outside as following picture:
Delivery time:
20-35 days after getting the deposit.
