Model NO.
isuzu-553
Transmission Type
Manual
Drive Wheel
4x2
Condition
New
Name
Aerial Working Truck
Capacity
18m 16m
Feature
Telescopic Boom High Lifting Platform
Transport Package
Naked
Specification
7615X1990X2995 mm
Trademark
isuzu
Origin
China
HS Code
8701909000
Production Capacity
500PCS/Week
Type:
H
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard:
Euro 5
Hoesrpower:
115HP
Payload:
900kgs
Fuel:
Diesel
Isuzu 18m/16m 4x2 aerial working truck with telescopic boom high lifting platform
I.Product Describution:
Aerial platform truck basic specification below:
1, Aerial working height :14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,Isuzu, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure.
3, Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.
Feature:
1. Four rotational alert lamps on the platform deck.
2. Four hydraulic outriggers which can be operated independently or simultaneously
3. With an Insulated bucket for worker to operation and lifting hook
4. Three section Folded Arms, 360° rotation
5. Imported electro-hydraulic ratio control valve.
6. Operation Control on operation bucket or platform deck
7. Protective material:Q235A carbon steel
8.Work platform is limited to two persons
9.one ton of hook can be configured.
Technical date:
Truck picture:
Application:
Truck Details:
1.the cab has advanced design with fully automatic welding manipulator ABB.
2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 8 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5. Slewing mechanism adopts adjustable type, which is easy to adjust.
Different load type :
Working Curve Draw
★After-sales &Warranty
Warrant special vehicles and equipment we supplied are manufactured with mature technology, nice workshop, under strict quality control .
★Shipping Service
We treat Shipping Service as one of the most significant segment in our service chain. From trucks get finished in the plant and being carefully tested by engineers,till the truck delivery to our customer. During this period, we will provide the shipping service to not only just satisfy but also surpass the extensions of our customers.
★Technical Supports
For our supplied products, you can forever enjoy technical supports whatever by phone call or email. We will respond aggressively to provide a prompt solution.
★Training Service
When trucks production are finished, customers are welcome to have a visit in our factory. Not only for inspecting the trucks, but also for training.The staff training include teaching customers how to use and maintenance the truck, also some common troubleshooting.
I.Product Describution:
Aerial platform truck basic specification below:
1, Aerial working height :14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,Isuzu, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure.
3, Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.
Feature:
1. Four rotational alert lamps on the platform deck.
2. Four hydraulic outriggers which can be operated independently or simultaneously
3. With an Insulated bucket for worker to operation and lifting hook
4. Three section Folded Arms, 360° rotation
5. Imported electro-hydraulic ratio control valve.
6. Operation Control on operation bucket or platform deck
7. Protective material:Q235A carbon steel
8.Work platform is limited to two persons
9.one ton of hook can be configured.
Technical date:
| TECHNICAL SPECIFICATION | ||
| Main specification | Chassis model | ISUZU,QL1070 |
| Overall dimension(L*W*H) | 7640x2000x3150mm | |
| Gross / Curb weight | 6,800kg / 5,275kg | |
| Chassis | Drive modle | 4*2 left hand drive |
| Wheel Base | 3815 mm | |
| Tyre size & number | 7.00-16, with one spare tyre | |
| Fuel/Engine type: | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | |
| Engine model | 4HK1-TCG40 | |
| Engine horse power | 120HP (88KW) | |
| Emission | Euro IV | |
| Transmission | Isuzu gear box, 6 speed forward, 1 reverse | |
| Boom | type | 4 sections Telescopic boom |
| the arm rest Rolling Angle | -20° ~ +50° (per to a horizontal) | |
| Working | Mas Working Height | 18M |
| Rotation angle of boom(°) | 360 | |
| Outrigger | Type | 4 nos H type outriggers |
| Outrigger span | Double row cabin: Front outtrigger horizontal span: 1050(mm); Rear outtrigger horizontal* longitudinal span: 4000*4000(mm); Single row cabin: no Front outtrigger; Rear outtrigger horizontal* longitudinal span: 4430*4245(mm); | |
| Platform/Busket | Rated Loading (kg) | ≤200Kg |
| Safety Belt | 1 set | |
| compartment box | Floor | Antiskid steel plate |
| Fence | stainless steel | |
| Tool box | 1250X400X420 mm, two numbers | |
| Operation Type | Outtrigger leg | Each leg can be controlled separately |
| Get on/off interlocking | with | |
| Wireless controller | with | |
| Boom action | Turntable and hanging basket on-off operation | |
| Boom rest automatic limiter | with | |
| Dangerous Alarm | with | |

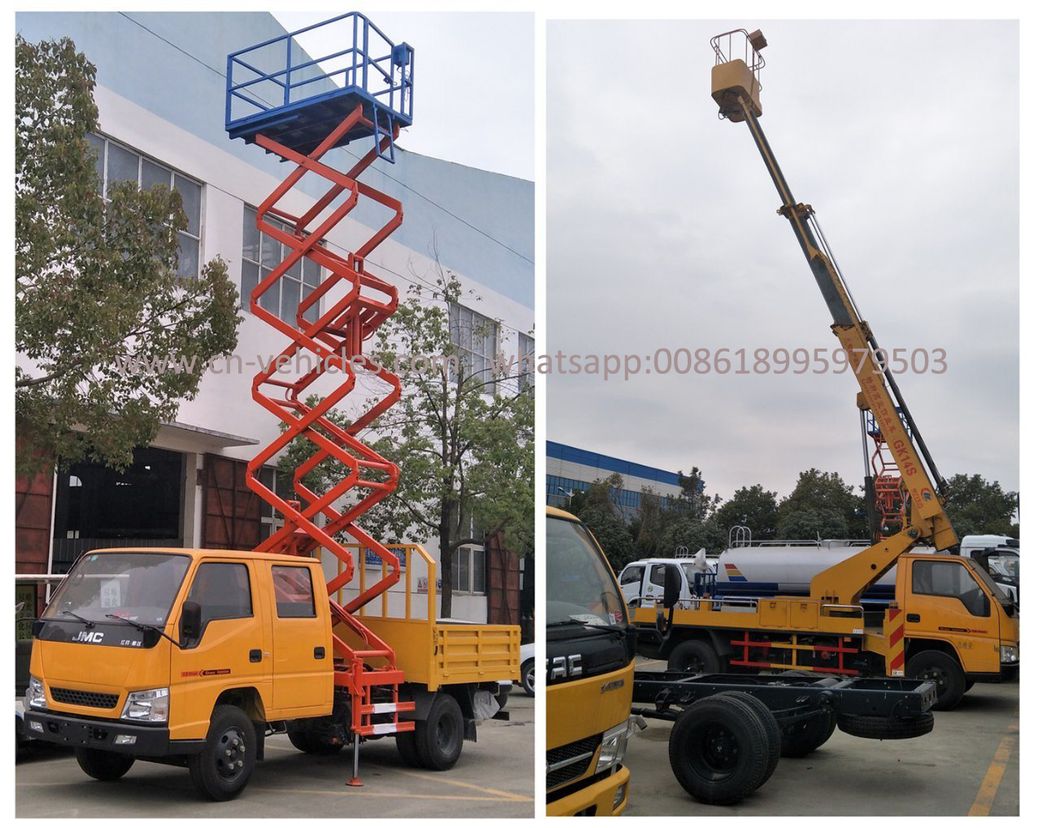

Truck picture:
Application:
Truck Details:
1.the cab has advanced design with fully automatic welding manipulator ABB.
2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 8 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5. Slewing mechanism adopts adjustable type, which is easy to adjust.
Different load type :
Working Curve Draw
| List of main hydraulic components | ||||||||
| Name | Specification | Quantity | ||||||
| Small Arm cylinder | 63/35-380*650 | 1 pcs | ||||||
| Upper arm cylinder | 100/63-1022*1403 | 1 pcs | ||||||
| Down arm cylinder | 100/63-1076*1535 | 1 pcs | ||||||
| Vertical cylinder | 80/55-500 | 4 pcs | ||||||
| Horizontal cylinder | 50/28-800*1100 | 4 pcs | ||||||
| Telescopic cylinder | 63/35-1000*1300 | 1 pcs | ||||||
| Equilibrium Valve | 25160BF | 3 pcs | ||||||
| Hydraulic lock | S0-K8L-41B | 4 pcs | ||||||
| Hydraulic lock | S0-K8L-43 | 1 pcs | ||||||
| Multi-way valve | DL-8G | 1 pcs | ||||||
| Integrated block | ZMFB-14 | 1 pcs | ||||||
| Throttle valve | GKZ-14 | 2 pcs | ||||||
| Crossover relief valve | VLP40-DI-38 | 1 pcs | ||||||
| Slewing ring | QWD730.20 | 1 pcs | ||||||
| Reducer | CW-28 | 1 pcs | ||||||
| Lifting mechanism | IQKN1B6Y | 1 pcs | ||||||
| Gear pump | CB-FC25 | 1 pcs | ||||||
| Hydraulic motor | BMP-50 | 1 pcs | ||||||
| Winch motor | BMT-100/PHF | 1 pcs | ||||||
★After-sales &Warranty
Warrant special vehicles and equipment we supplied are manufactured with mature technology, nice workshop, under strict quality control .
★Shipping Service
We treat Shipping Service as one of the most significant segment in our service chain. From trucks get finished in the plant and being carefully tested by engineers,till the truck delivery to our customer. During this period, we will provide the shipping service to not only just satisfy but also surpass the extensions of our customers.
★Technical Supports
For our supplied products, you can forever enjoy technical supports whatever by phone call or email. We will respond aggressively to provide a prompt solution.
★Training Service
When trucks production are finished, customers are welcome to have a visit in our factory. Not only for inspecting the trucks, but also for training.The staff training include teaching customers how to use and maintenance the truck, also some common troubleshooting.
