Model NO.
SY312C
Payload
20T
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
<200hp
Condition
New
Curb Weight
14850 Kg
Gvw
43650 Kg
Wheel Base
4090+1350 mm
Engine Model
P11c-Wc
Rated Power/Rev Speed
259/1900 Kw/Rpm
Max. Torque/Rev Speed
1488/1100 (N.M/Rpm)
Gear-Box
9js150ta-B
Tyre
12.00r20
Drum Capacity
12 M3
Water Tank Capacity
400 L
Transport Package
Nube
Specification
10200*2500*3980mm
Trademark
MAXIZM
Origin
Hunan, China
HS Code
8705400000
Production Capacity
1000pes/Year
After-sales Service:
Video Technical Support
Warranty:
1 Year Warranty
Certification:
ISO9000, CE
Transmission Type:
Automatic
Emission Standard:
State four
Displacement:
4

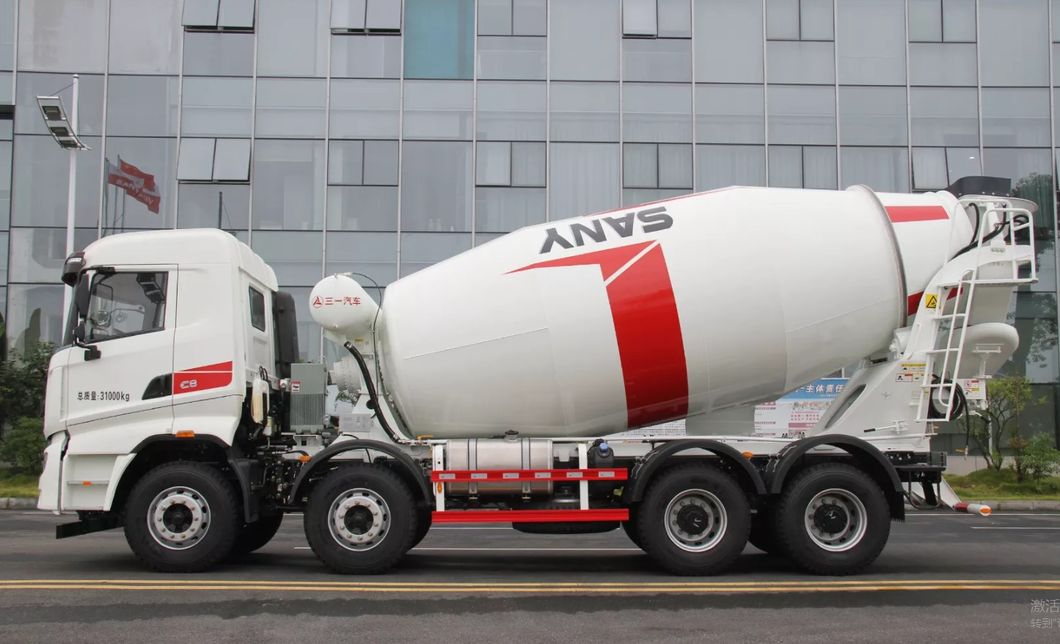

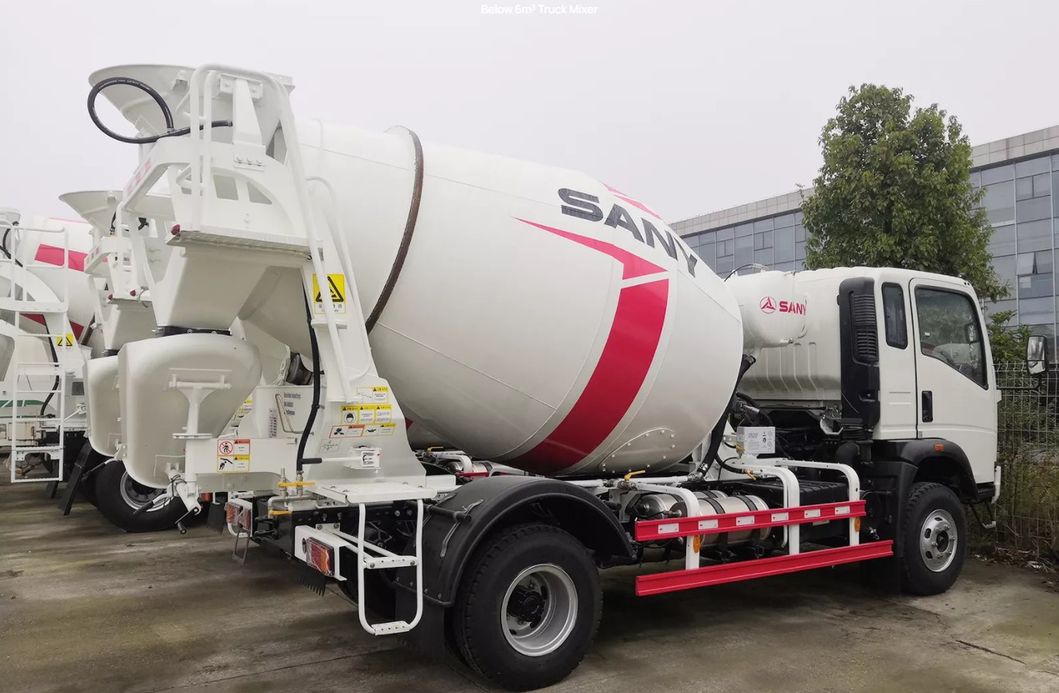

Top Brand 12cbm Cement Concrete Mixer Truck with High Performance (SY312C)
Products Description
1. Energy-saving TechnologyThe engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
2. Low Deck Technology
The frame is made of high-strength special steel plates, improving reliability and safety. It uses original subframe-free
structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
3. Leading Edges Steering Technology
The large displacement power steering pump reduces operator effort by 40%. Optimizing chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Product Paramenters
Model | SY312C |
Overall Parameters | |
Rudder Direction | Left |
Curb Weight | 14850 kg |
GVW | 43650 kg |
Dimension (L×H×W) | 9945×2500×3985 mm |
Wheel Base | 4090+1350 mm |
Min. Ground Clearance | ≥240 mm |
Min. Turning Diameter | ≤18 mm |
Fuel Consumption | ≤45 L/100km |
Chassis | |
Engine Model | P11C-WC |
Displacement | 10.52 L |
Rated Power/Rev Speed | 259/1900 kW/rpm |
Max. Torque/Rev Speed | 1488/1100 (N.m/rpm) |
Emissions | China V |
Gear-box | 9JS150TA-B |
Front Axle | 9 t |
Intermediate, Rear | 2×16 t |
Tyre | 12.00R20 |
Fuel Tank Capacity | 300 L |
Drum | |
Capacity | 12 m3 |
Feeding Speed | ≥8 m3/min |
Discharge Speed | ≥5 m3/min |
Discharge Residual Rate | ≤0.5% |
Slump | 50~210 mm |
Water Tank Capacity | 400 L |
Water Pressure | 0.35~0.38 MPa |
Hydraulic Pump | A10VGT090 |
Reducer | PMB7.1 |
Motor | A2FMT090 |
