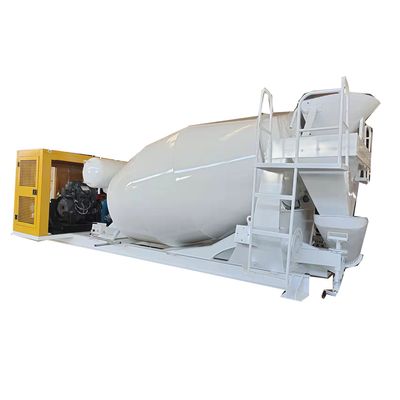

hot selling 5/6 cbm concrete mixer transmit drum device mixing truck top body with diesel engine
1.The parameters of the above products are just common configurations, not absolute.The specific configuration
of the product will be executed according to your needs.
2.The final price of all products is determined by the product configuration you choose.Therefore, if you are
interested in purchasing products, please contact us in time.
3.About the details:
In order to produce a high quality product, the details are very important.The important parts we use, such as
engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.
4.About the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you
can see in the picture, the production process is very elaborate.Above all, our workers are very serious and
efficient.All I have said above is believable and guaranteed.
| Mixing Capacity | 6CBM |
| Geometrical capacity (m³) | 12.5 |
| Body thickness of cover / middle / rear(mm) | 8\6\6 |
| Concrete charging speed (m³/ min) | 3 |
| Concrete discharging speed (m³/ min) | 2 |
| Tank rolling speed (r/min) | 0~14 |
| Discharging residual ratio (%) | <0.9 |
| Water Tank Capacity (L) | 440 |
| Model/Brand/Origin of hydraulic pump | 089 / ARK / Italy |
| Model/Brand/Origin of hydraulic motor | 090 / ARK / Italy |
| Model/Brand/Origin of reductor | P75S / TOPUNION / Italy |
| Other | With diesel engine |
| Recommended Wheelbase of chassis | 6x4:4000mm+1350mm 8x4:1800mm+3200mm+1350mm |
| Color | according to the customer's request |
