Mini Self-loading Concrete Mixer Machine HY400 with Capacity 4cbm
Good quality & Best price

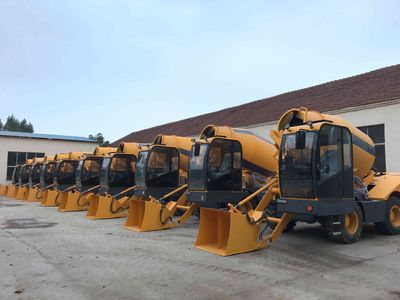

Product Display
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
1.Main Features
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Parameters
Name | Item | Specification | |||
| Net Weight | 8300 KG | |||
Gross Weight | 12675KG | ||||
Transmission | Full Hydraulic | ||||
4 WD | |||||
Brake | Air Brake | ||||
Chassis | Off-road | ||||
Tread | 1880mm | ||||
Wheelbase | 2250mm | ||||
Loader bucket | capacity | 0.6m3 | |||
Control tyre | Hydraulic | ||||
Tilt angle | 30% |
| |||
Travel Speed | High | 0-25KM/H | |||
Low | 0-20KM/H | ||||
Mini turning radius | 6.5M/R | ||||
Tyre model | 16/70-20 | ||||
Engine | Type | YUN-NEI |
| ||
Rated Power/RPM | 92KW/2200RPM
| ||||
Max.Torque/RPM | 460N.M/1400RPM | ||||
Cylinder No. | 4 | ||||
Starter | Electric | ||||
Cooling type | water cooling | ||||
Maxing Drum | Output capacity | 4M3 | |||
Bank Angle | 16 ° | ||||
Rotation Angle | 19-21R/min
| ||||
Chute | Swing Angle | ≥60° | |||
Angle control | Hydraulic | ||||
Size | Length:90cm | ||||
| |||||
Loader | Weighing model | computer control | |||
Concrete Standard | C15.C20.C25 C30 | ||||
Accuracy | Cement | ≤±2%/time | |||
Relative Error | ≤±3%/time | ||||
Water | ≤±1%/time | ||||
Additive | ≤±1%/time | ||||
Admixture | ≤±2%/time | ||||
Loader control | Hydraulic 4 way stick | ||||
Hydraulic oil tank | 240L | ||||
Water tank | 550L | ||||
Over size | 7500*2700*3380mm | ||||
