Brand new 4*2 2500L water tank 5cbm garbage tank street cleaning vehicle road sweeper truck
Other chassis optional: DONGFENG/ SINOTRUK/ FAW/ FOTON/ BEIBEN/ JAC/ SHACMAN/ HINO/ HYUNDAI
Other drive type optional: 4x2/ 6x4/ 8x4/ 4x4/ 6x6
RHD or LHD is optional.
Advantage:
1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such
as leaves from blocking the air outlet and dust from being discharged.
2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.
3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance
function, and the left and right sweeping brushes can be controlled separately.
4. According to the user's needs, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel,
operation monitoring system, auxiliary suction device and snow shovel.
| Vehicle model | Road sweep truck | Overall dimensions (mm) | 6700*2290*2500 mm | |
| GVW (kg) | 8275 | Fact Loading Capacity(kg) | 2600 | |
| Curb Weight (kg) | 5700 | Max. Speed (km/h) | 99 | |
| Chassis Description | ||||
| Cab | Standard cabin | |||
| Color | Optional | |||
| Allowable person in cab | 2/3 | |||
| Wheel base (mm) | 3800 | |||
| Number of axles | 2 | |||
| Front axle | 3000 | |||
| Rear axle | 5500 | |||
| Traction system | 4*2 | |||
| Operation control system | Power steering | |||
| Braking system | Full air | |||
| Electric system | 24V | |||
| Transmission | 5speed | |||
| Tire specification | 7.50R16 (6+1) | |||
| Engine Description | ||||
| Engine Model | YC4E140-33 | |||
| Emission standard | Euro II | |||
| Exhaust/output | 103kw | |||
| Horse power | 140hp | |||
| Up-parts Description | ||||
| Vice generator | Model | JX493-G3 | ||
| Rated power(kw) | 57 | |||
| Cleanning efficiency | ≥95% | |||
| The maximum diameter of the suction body(mm) | 120 | |||
| Maximum cleaning power (m²/h) | 60000 | |||
| Working speed(km/h) | 3-20 | |||
| Water tank capacity (cbm) | 1.0-1.5 | |||
| Gabarge tank capacity (cbm) | 4.0-4.5 | |||

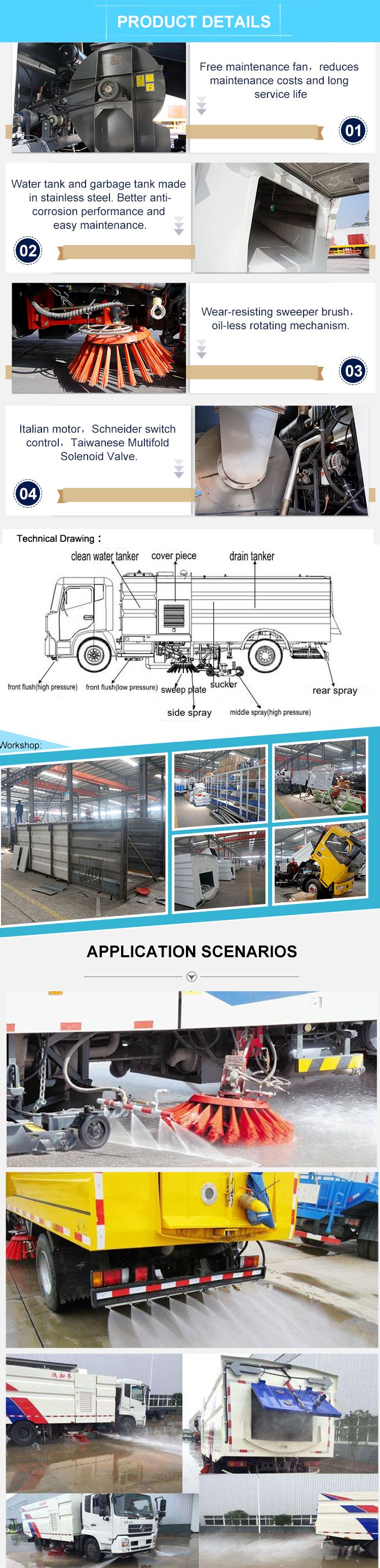

Product Details
