Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck, Street Sweeper Truck, Truck Mounted Sweeper

CLW Heavy Industry Co., Ltd

Price $19999.00 / Piece
Mini Order
-+Subtotal: $19999
Availability In Stock
Purchase details

Payments:

Returns&Refunds:

Eligible for returns and refunds View More

Fuel
Diesel
Payload
12t
Use
Burnishing
Cleaning Process
Cold Water Cleaning
Condition
New
Gvw
15800kg
Curb Weight
12330kg
Traction Type
4*2, Left /Right Hand Drive
Chassis Brand
Dongfeng Kr
Displacement/Output
5900ml/150kw
Horse Power
210HP
Gear Box
6 Forward Gears& 1 Reverse
Tire Specification
10.00-20
Transport Package
Bulk
Specification
8850*2500*3050mm
Trademark
CLW
Origin
Hubei, China
HS Code
8701909000
Production Capacity
100units/Mouth
After-sales Service:
Lifetime Technical Support, Parts Supply etc
Warranty:
1 Year
Type:
Sweep and Suck Type
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type:
Manual
Emission Standard:
Euro 2

Product Description

DONGFENG 12cbm Road Sweeping Truck

Road sweeper truck is also called road cleaning truck, vacuum road sweeper, Street sweeper , Street cleaner,road washing truck. It is a kind of road cleaning truck which adopt a chassis such as Dongfeng, JAC, Foton etc. The upper bady are assembled with power system,  cleaning system,   suction system and hydraulic system. Widely used in city streets, road, station, square etc.

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

Product Parameters

Vehicle Description
Overall dimension8850*2500*3050mm
GVW15800kg
Curb weight12330kg
Chassis brandDONGFENG KR
Traction type4*2, left hand drive
Chassis Description
Chassis modelDFL1160
Cab Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
Wheelbase4500mm
Tire specification10.00-20
Tire quantity6+1 units
EngineEngine modelEQB210 20
Emission levelEuro 2
Displacement/output 5900ml/150kw
Horse power210hp
Gear boxTypeDF6S900 OD
Number of gears6 forward gears& 1 reverse
Brake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
AxleFront6T- Elliot type, I beam section
Rear10T-Single reduction, ratio 5.286
SuspensionFront8- leaf spring ,with shock absorber
Rear9+8-leaf spring
Fuel tankerTypeSteel fuel tank, with lockable cap
Capacity 180L
Up-part description
Tanker capacityWater tanker4cbm
Garbage tanker8cbm
Standard configurationEquipped with auxiliary engine, sub-frame and fan.
Equipped with water tanker, garbage tanker.
Equipped with 4 sweeping brushes on each side and suction nozzle on the rear.
Equipped with dust suppression system.
Equipped with hydraulic system.
Equipped with electrical system.
Optional configurationSnow shovel, foggy gun, front spray, rear sprinkler

The advantage of road sweeper truck:

1. CCC,ISO9000,BV certificates

2. A stainless steel water tank with a 10% slope below the garbage pit is a great advantage to throw away garbage

3. Standard 115 Hp Auxiliary Engine generate enough power for vacuuming

4. All brands of chassis available: Sinotruk, HOWO, Foton, Forland,Shacman, FAE,JAC,JMC, Dongfeng, I'VECO,Japanese brand and etc.

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

Company Profile

Company Information

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China.Our sales volume ranks Top 5 in China. Excellent engineers and high-grade production equipments as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

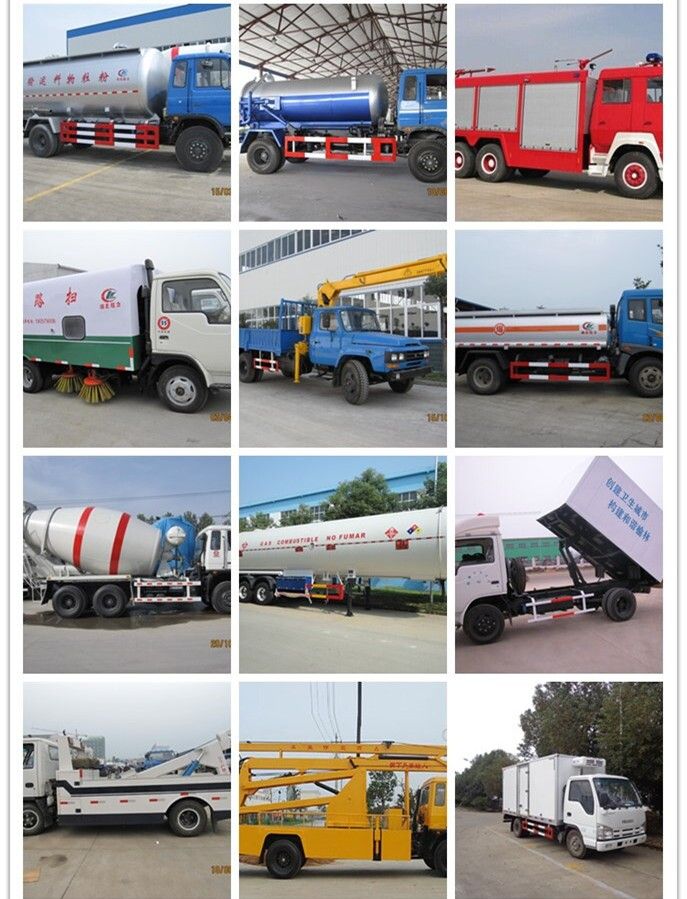

Related Products

Tanker Truck / Trailer Series:

LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:

Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:

Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:

Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:

High-Altitude Operation Truck, Wrecker Truck, Fire-Fighting Truck


High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

Our Service

1.One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.





Certificates

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price

High Quality Heavy Road Vacuum Street Cleaning Truck 4X2 Dust Suction Sweeper Truck Good Price
FAQ

1.Q: Are you manufacturer or trading company?
A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.
2. Q:How many is your min Order Quantity
A: One unit or one sets;
3. Q: What is your payment term?
A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
4. Q: How long is the specified delivery date from the date of order?
A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.
5 Q: Contact Information?
A: For any question or request, please contact with me freely
