Model NO.
CLW547831
Use
Stainelss Steel
Cleaning Process
Cold Water Cleaning
Condition
New
Purpose
Road Sweeping,Street Cleaning
Sweeping Width
2.5meter to 3.0meter
Dust Container
3.5cbm
Brush
4 Brushes, 1 at Each Side
Auxiliary Engine
Jmc 77HP Engine
Garbage Container Sweeping System
Automic Water Cleaning
Max. Suction Particle
Diameter 120mm
Sweeping Speed
2.5meter to 3.0meter
Water Container
1.5cbm
Function
Road Sweeping,Road Cleaning
High Pressure Cleaning
Optional
Suction Pan
1 Unit with 2 Hose
Garbage Discharging
Tipping System/Dumping System
Brush Function
Automatic Retreating for Collision
Working Light
Optional
Transport Package
Naked Packing
Specification
5CBM
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909990
Production Capacity
500 Unit/Month
Type:
Sweep and Suck Type
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS
Transmission Type:
Manual
Emission Standard:
Euro 2
Fuel:
Diesel
Payload:
5t
Product Description

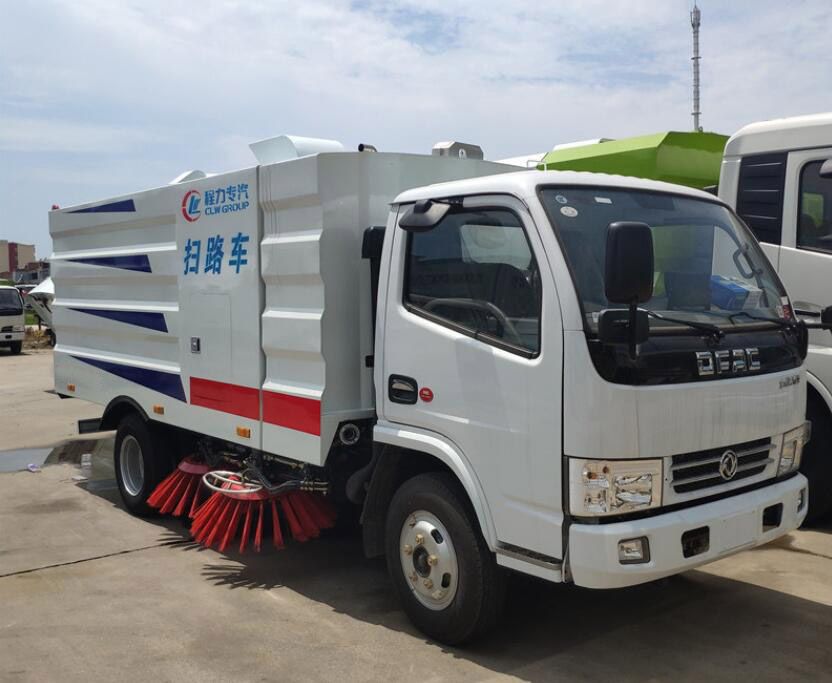

Dongfeng 4X2 Road Sweep Truck, Street Cleaner Trucks
1. Best choice for road, factory, residential area sweeping & Cleaning.
2. optional high pressure water flushing & Spraying for dust control.
3. All function contained in 1 control panel in cabin, Easily for 1 man contorl.
4. Stainless Water Tank & Garbage Tank for long time use.
5. Hydraulic Controlled Brush with automatic retreating system to avoid collosion.
6. Floating Suction Pan to adjust as per road height.
7. Optional water spraying for dust control.
8. Optional Music Warning System & Reverse Alarm.
Specifications Detail of the Truck
| Dongfeng Truck Chassis | ||||||||
| Condition | New condition/Right hand drive/4x2 | |||||||
| Chassis | Brand | FOTON | ||||||
| Curb weight(kg) | 100kg | |||||||
| Wheelbase(mm) | 3300 mm | |||||||
| Dimensions(mm) | 6300 x 2000 x 2600 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 2000/4000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 7.00-16 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Chaochai Diesel Engine, 4 Cylinders | ||||||
| Displacement(ml) | 3856 ml / cc | |||||||
| Power(kw)/Horsepower(HP) | 73 kw/99 HP | |||||||
| Emission standard | Euro 4 | |||||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 1.5 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 3 CBM | |||||||
| Auxiliary engine | Model | JMC Engine 77HP | ||||||
| Power(kw) | 57 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
| Remarks | 1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. | |||||||
