» II. WRECK TOW TRUCK SPECIFICATION

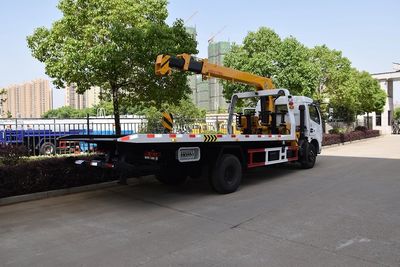

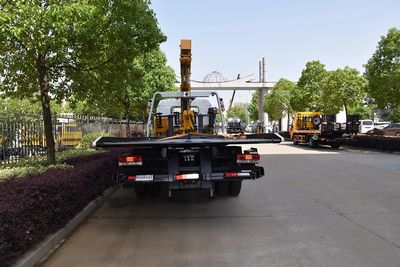

| One-Pull-Two road wrecker with 3-5Ton Crane, Road Recovery Flatbed tow truck for sale | |||||
| Item | Tow Wrecker Truck | Chassis Model | EQ1090GLJ | ||
| Vehicle parameters | GVW(kg) | 7800 | Overall Dimension(mm) | 7400*2350*2510mm | |
| Curb weight (kg) | 4800 | Steering Wheel | LHD | ||
| Driving Type | 4*2 | Wheelbase (mm) | 3800 | ||
| Engine parameters | Model | CY4102BZQ | Emission Standard | Diesel,Euro3 | |
| Horse Power(hp) | 120 | Emissions(ml) | 3856 | ||
| Gear box | 4 stroke,4-cylinders in line, water cooling | ||||
| 5 forward and 1 reverse | |||||
| Performance Parameter | Max Speed(km/h) | 90 | Wheel Tread(mm) | Front Axle | 3800 |
| Cab Seat | 2 | Rear Axle | 4500 | ||
| Leaf Spring | 11/9+7 | Suspension (mm) | Front Suspension | 1150 | |
| Tire No. | 6+1 | Rear Suspension | 2450 | ||
| Tire Specification | 7.50R16 | Driving Angle(°) | Approach Angle | 23 | |
| Axle No. | 2 | Departure Angle | 12 | ||
| SuperstructureDescription | Flatbed Size L×W (mm): 5600×2300 | ||||
| Max Flatbed Carrying Weight (kg) :4000 | |||||
| Hydraulic Winch: rated haulage quality 4000kg;length of steel wire rope 25m | |||||
| Rear arm lift capacity: 1.8ton | |||||
» III. WRECK TOW TRUCK DESCRIPTION
» IV. WRECK TOW TRUCK TRANSPORTATION
» V. ABOUT US
» VII.OUR SERVICES
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
» VII.FAQ
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
