HW-4F150
LiFePO4 Battery
Series and Parallel
Chargeable
Medium Discharge Rate
Large
Battery
150ah
12.8V
RV, UPS, Solar
Li-ion
21.5kg
10V
14.6V
0-60 Degree
-20-55 Degree
20-55 Degree
ABS+PC
Guangdong, China
2000 Cycles
24 Months
More Than 5 Years
Ce,UL,RoHS,IEC62133,Un38.3, etc
HWE / OEM
1 Per Carton
295*178*345mm / Customized
China
8507600090
Product Description
Deep Cycle Rechargeable Lithium ion LiFePO4 12V 150Ah 200Ah 300Ah Lithium Battery
Product Description
| Cell Type | LiFePO4 battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 150Ah |
| Cycle Life | >2000times 0.2C |
| Discharge Cut-off Voltage | 10V |
| Charging Cut-off Voltage | 14.6V |
| Housing Material | ABS+PC |
| Standard Charge | 0.2C charge current |
| Max. Continual Discharge Current | 100A |
| Charge Temperature | 0~55°C |
| Discharge Temperature | -10~60°C |
| Storage Temperature | 0~35°C |
| Weight | About 21.5kg |
| Dimension | 295*178*345mm / Customized |
| Certificate | CE,UL,ROHS,UN38.3,IEC62133 |

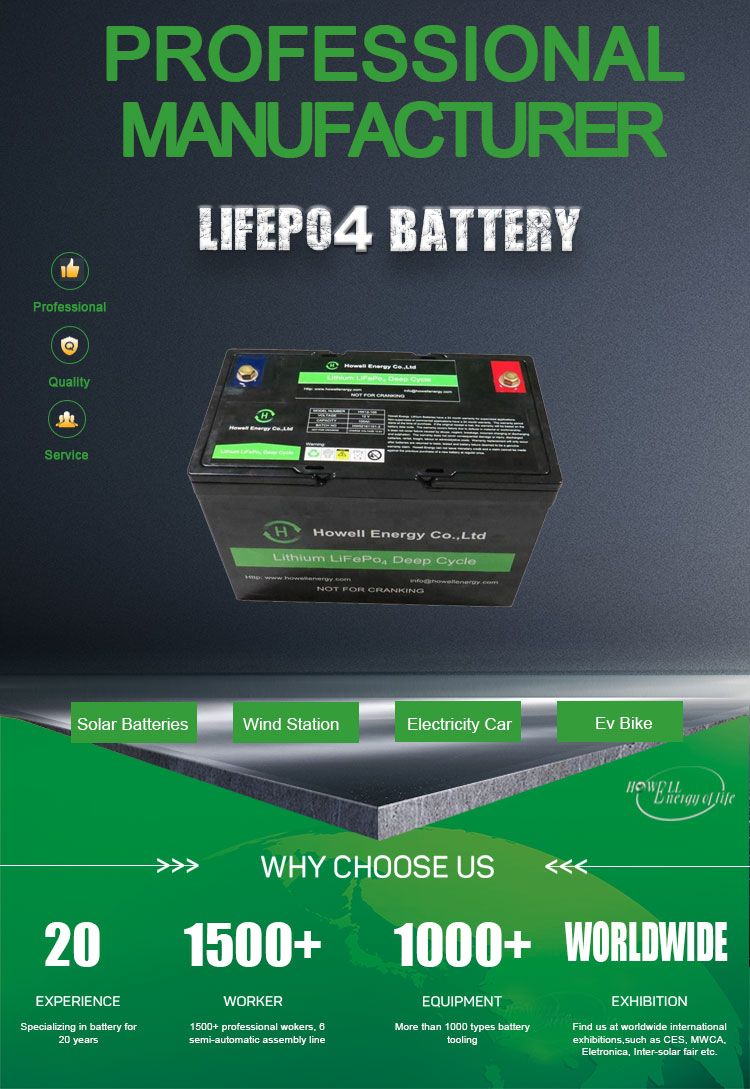

Product Display (Include the built in BMS and ABS case)
Advantages
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire
Specifications Lead-acid Batteries LiFePO4 Batteries | |||
Gravimetric Energy Density(Wh/Kg) | 20 ~ 45 | 110 ~ 190 | |
Volumetric Energy Density(Wh/L) | 60 ~ 90 | 170 ~ 310 | |
Temperature Adaptability | 0°c ~ 50°c | -20°c ~ 60°c | |
Cycle Durability | 300 ~ 500 cycles | > 2000 cycles | |
Self-discharge Rate(per month) | < 4% | < 2% | |
Discharge Rate | 1C | 10C | |
Installation | Big and heavy, difficult to install | Small size and light weight, about 40% of the weight of a comparable elead-acid battery | |
Maintenance | Regular maintenance staff required | No need for regular maintenance | |
Environmental Protection | Containing heavily polluting and toxic substances such as lead, arsenic, mercury, sulfide, etc. | Free of heavy metals, safe and pollution-free, recycling utilization rate is high | |
Superior safety | Lithium Iron phosphate chemistry reduces the risk of explosion of combustion | ||
Production Process
Packing & Delivery
Packing
Packing & Delivery
Packing
DG packaging for Batteries According UN38.3 requirement
Delivery
With more than 10 year for Batteries export, The Battery can ship Via Sea / Air /express.
Howell provide you with the certification which allows you to ship these batteries via air include UN38.3 /MSDS /DG.We Can ship from Shenzhen,Shanghai,HK...
