UNIV-5.2kwh
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Chargers
102ah
51.2V
Solar Power System
Li-ion
5.2kwh
102ah
44.8~57.6vd.C
50A
90%
Indoor
From 0~55c
From -20~60c
43kg
LFP
EASYWAY
Carton / Pallet
43kgs
China
85076000
Product Description
LiFePO4 Lithium Ion 51.2V100ah Battery Pack Lithium Battery Lithium 5kWh Rack Battery
Product Description
Key Feature
>Digital Monitoring System APP
>High Inverter Compatibility
>Brand new grade A cells from world top 10 companies
>CANbus Standard Connection
>Natural Cooling System
>Assemblly freely in series or parallell up to 16P
>10 Years Limited Warranty
>Digital Monitoring System APP
>High Inverter Compatibility
>Brand new grade A cells from world top 10 companies
>CANbus Standard Connection
>Natural Cooling System
>Assemblly freely in series or parallell up to 16P
>10 Years Limited Warranty

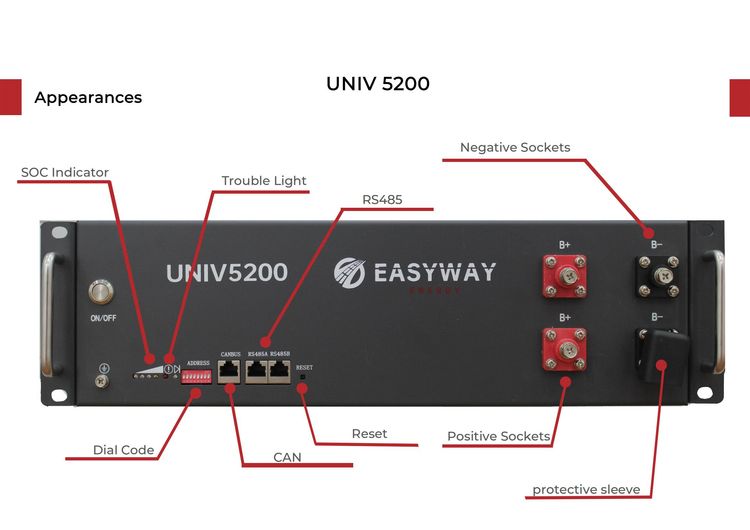

| MODEL | UNIV5200 | |
| Nominal Voltage (Vd.c) | 51.2V | |
| Voltage Range (Vd.c) | 44.8V~ 57.6V | |
Rated Capacity (Ah) | 102Ah | |
Recommend Current (A) | Charge:80A/Discharge:80A | |
| Max.Current (A) | Charge:100A/Discharge:100A | |
Depth of Discharge (DOD) | 90% | |
Scalability | Max 16 in Parallel | |
Cycle Life | ≥8000@25ºC, 80%DOD | |
Communication | CAN/RS485 | |
| Weight (KG) | 43 | |
Dimension (W *H* D)(mm) | 442*135*480mm | |
OperationTemperature | Charge:0ºC ~ 55ºC (32ºF ~ 131ºF) Discharge:-20ºC ~ 60ºC (-4ºF ~ 140ºF) | |
Certification | CE/Cell UL 1973/UN38.3/MSDS/ | |
Packing Items
Monitoring Solution
FAQ
1. Are you a manufacturer or trading company?
A: We are a manufacturer (Over 10 years)
2. How much life span of the battery?
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 6000+ at 80% DoD
3. How long is the warranty?
A: we offer 5+5 years truly warranty to provide after-sale service and technology support. Including resend new battery or replacement BMS.
4. What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485 and can compatible with most of famous inverters
5. What is the delivery time? What is your standard packing?
A: Usually delivery in 30 days, but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN
6. Do you support customization?
A: YES, LOGO/sticker/OEM/ODM welcomed
7. What are your terms of payment?
A: The payment term will be 50%T/T for deposit and the balance before shipment
8. Do you have CE/ MSDS/ UN38.3 / certification for safe transport of goods?
A: YES, We do!
1. Are you a manufacturer or trading company?
A: We are a manufacturer (Over 10 years)
2. How much life span of the battery?
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 6000+ at 80% DoD
3. How long is the warranty?
A: we offer 5+5 years truly warranty to provide after-sale service and technology support. Including resend new battery or replacement BMS.
4. What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485 and can compatible with most of famous inverters
5. What is the delivery time? What is your standard packing?
A: Usually delivery in 30 days, but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN
6. Do you support customization?
A: YES, LOGO/sticker/OEM/ODM welcomed
7. What are your terms of payment?
A: The payment term will be 50%T/T for deposit and the balance before shipment
8. Do you have CE/ MSDS/ UN38.3 / certification for safe transport of goods?
A: YES, We do!
